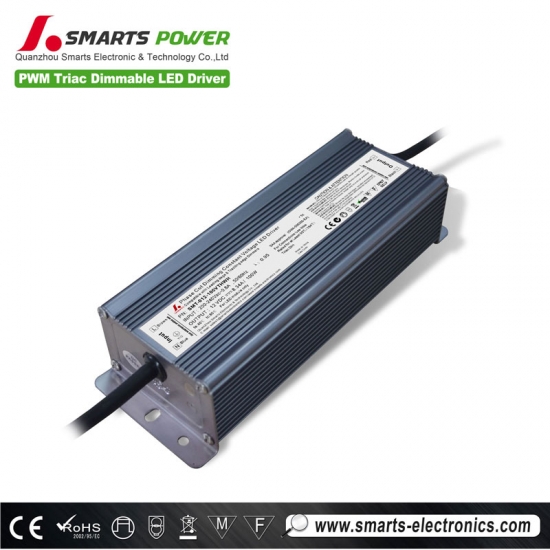

Non-dimmable LED Driver

CE SAA ROHS 12v 100w dimmable triac led driver for led strip

SMT-012-100VTHWH is 100w dimmable led driver triac. With 12Vdc and 24Vdc output voltage option, with CE SAA approval. It is match with ansell led's 100w led strip.


  • item no.:

    SMT-012-100VTHWH
  • brand:

    SMARTS
  • Input Voltage:

    200-240VAC
  • Output Voltage:

    12VDC
  • Output Current:

    8.33A
  • Working Mode:

    Constant Volatge 0-10V Dimmable
  • Certification:

    CE SAA ROHS
  • Warranty:

    7 years
inquiry now
product details

CE SAA ROHS 12v 100w dimmable triac led driver for led strip


SMT-012-100VTHWH is 100w dimmable led driver constant voltage 12V dc phase cut. It is dimming well with leading edge and trailing edge dimmers. Dimming range is around 0-100%. With 7 years warranty. It is working well with gkoled's lighting 100w.


  Product parameters


model

SMT-012-100VTHWH

SMT-024-096VTHWH

Output

DC Voltage

12V

24V



Rated current

8.33A

4.0A



Voltage Tolerance

±0.5V



Rated power

100W

96W

Input

Voltage Range

200-240V AC



Frequency Range

4763HZ



Power Factor

PF0.95Full loading



Full Load Efficiency(Typ.)

>88%

>90%



AC CurrentTyp.

0.8A



Leakage current

0.5mA

Protection

Short Circuit

Hiccup mode,recovers automatically after fault condition is removed



Over temperature

≤120%



Over Loading

100℃±10℃ shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40+60℃



Working Humidity

2090%RH,non-condensing



Storage TEM.,Humidity

-40+80℃1095%RH



TEMP.coefficient

±0.03%/℃050℃



Vibration

10500Hz2G 10min./1 cycleperiod for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-1 EN61347-2-13



Withstand voltage

I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC



Isolation resistance

I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH



EMC EMISSION

EN55015,EN61000-3-2,3 (60%loading)



EMC IMMUNITY

EN61000-4-2,3,4,5,6 ,11,EN61547

Others

Net Weight

1.1kg



Size

230*70*43mm(L*W*H)



packing

245*75*65mm inner box, 340*275*170mm

outside carton 10PCS /CTN

Notes

1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃

of ambient temperature.

2. To extend the driver's using life ,please reduce the loading at lower input voltage.

3.Loading range from 10% to 100%

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

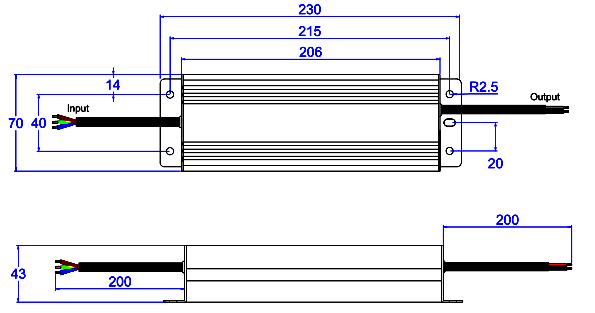

  Mechanical Specification

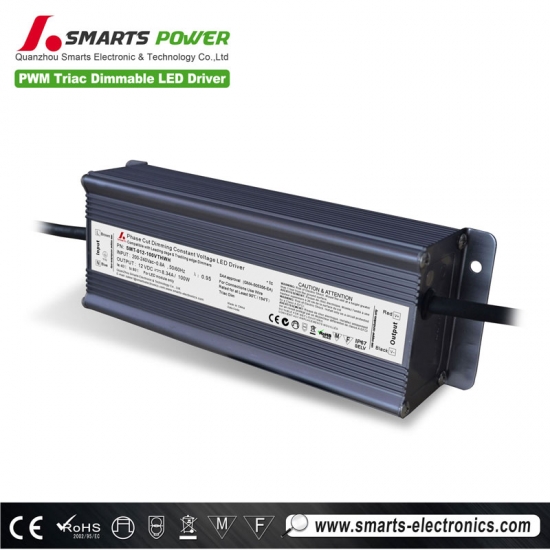

100w dimmable led driver


  CompatibleDimmer Type

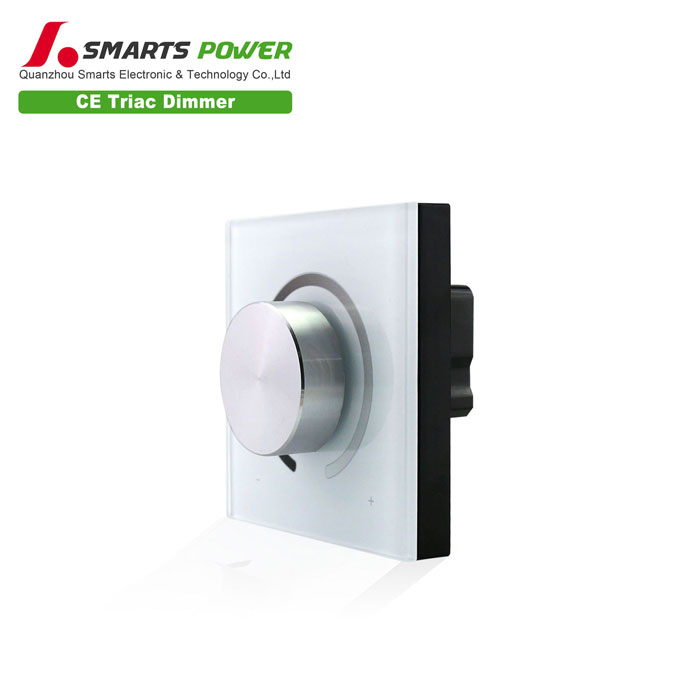

SMT300-T-R1 is CE triac dimmer switch. It is trailing edge dimmer which is only can be compatible with trailing edge dimmer. Its input voltage range is 220-240Vac, max power 300w. It is dimming well with TCP LED Lights Bulbs


CE triac dimmer switch          CE triac dimmer switch


  Related Products

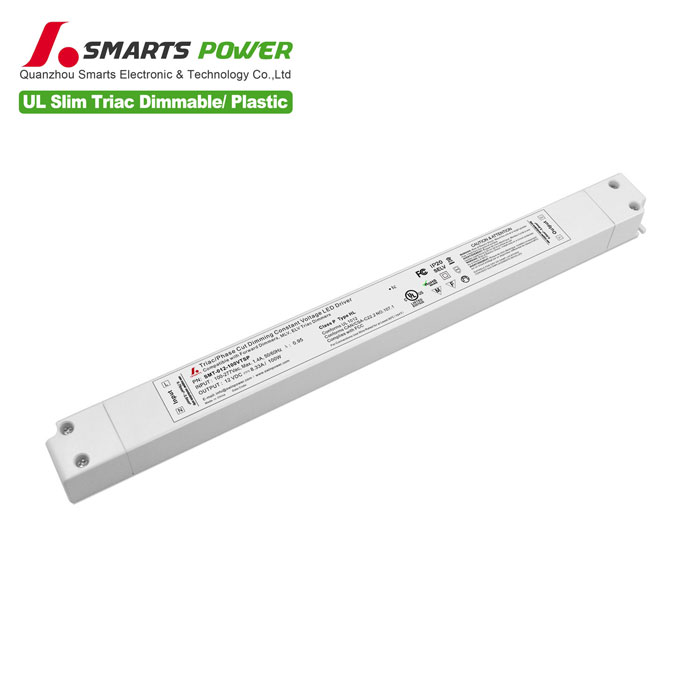

100w dimmable led driver

It is 12v 100w dimmable led driver. Its super slim size can be used at some cabinet lighting projects.


Mode:SMT-012-100VTSP
intput voltage:100~277V AC
Efficiency > 90%
Size:300*32*23mm  (L*W*H)
