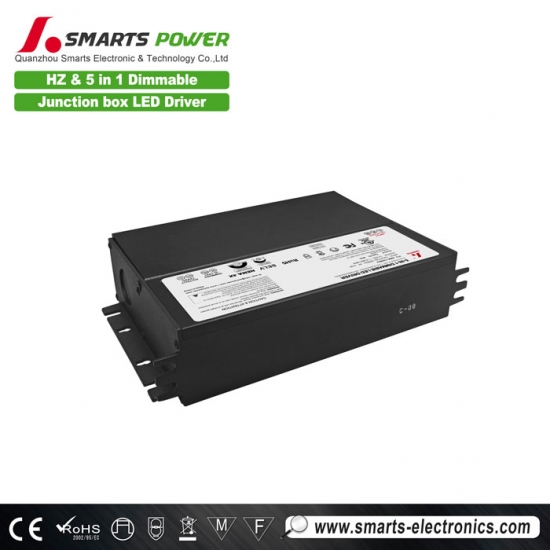

12v/24v/48v 80w triac & 0 10v dimmable constant voltage led power supply junction box
277vac universal input, triac & 0 10v dimmable led driver 80W constant voltage output mode with ultra-low load requirements, capable of working perfectly at 10-100% load, with 5-year warranty
Specification
| Model Number | HZA-12080J | HZA-24080J | HZA-48080J |
| Output Type | |||
| Reted Power | 80W | ||
| Reted Voltage | 12V | 24V | 48V |
| Reted Current | 6.66A | 3.33A | 1.66A |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input Type | |||
| Voltage Range | 110-277V | ||
| Frequency Range | 47-63HZ | ||
| Efficiency(Typ.) | 84%@120VAC 85%@277VAC | ||
| Total Harmonic Distortion | THD< 15%(@100% load) | ||
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
| AC Current(Typ.) | 0.85A | ||
| Inrush Current(Typ.) | 22A | ||
| Leakage Current | <0.5mA | ||
| PROTECTION | |||
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
| Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| ENVIRONMENT | |||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
| Working humidity | 20 ~ 95% RH non-condensing | ||
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| SAFETY & EMC | |||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
| EMC Emission | Compliance to FCC part 15 Subpart B | ||
| OTHERS | |||
| Dimension | 188x120.5x42mmmm (L*W*H) | ||
| Packing | - | ||
 |
 |
 |
 |
Mechanical Specification
Wire Specification
| HZA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 80W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | / | / | / | / | / | / | |
Function Introduction
Mounting
1.This driver must be installed in a well-ventilated area free from explosive gases and vapors. Air circulation is essential for heat dissipation.
2.Recommended spacing between LED drivers should be a minimum of 4” (10cm).
3.Do not mount driver close to or above objects that can radiate heat. Vertical mounting is highly recommended.
4.Select an appropriate location that is able to support the weight of the product.
5.Use the mounting tabs on the left and right side of the driver to mount the product.
Connecting Diagram
Using TRIAC/Phase cut dimming
1.Through a phase-dimmer or lighting system, control the input AC phase line (L) and adjust the output PWM
2.Triac dim mode: Forward phase & reverse phase, MLV, ELV dim
3.Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Dimming operation
UsingTriac MLV wiring diagram
Related Products

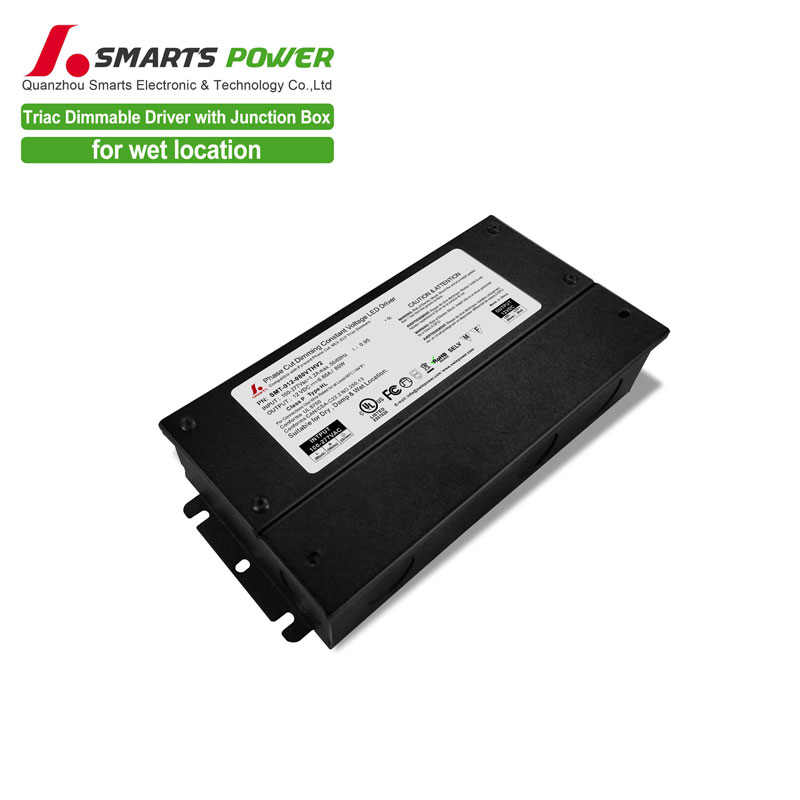

100-277vac triac dimmable 80W led driver constant voltage working mode, UL certification, compliant with global lighting safety regulations, junction box and power supply integrated, 7-year warranty
