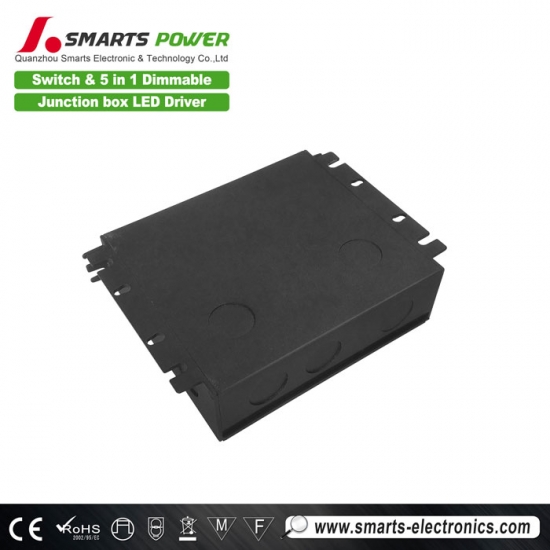

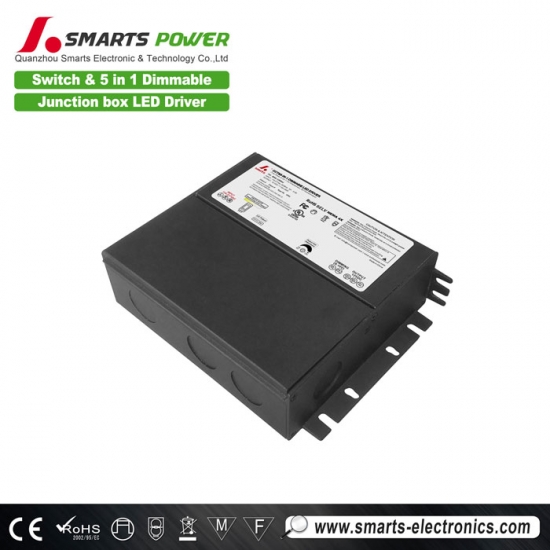

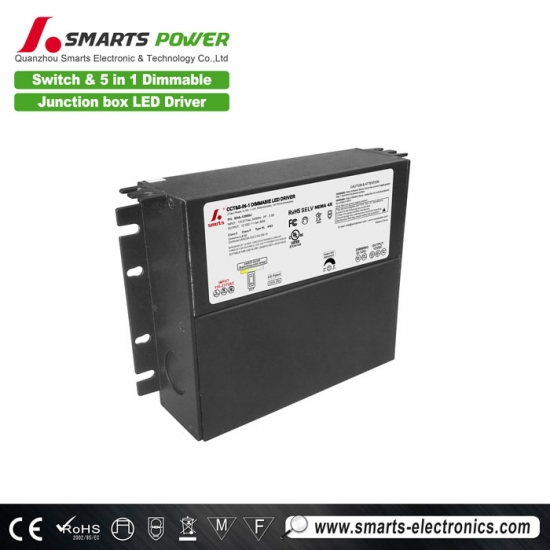

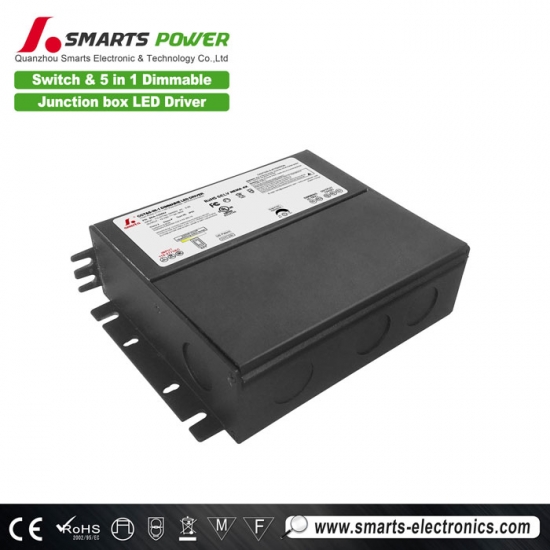

12V/24V/48V triac & 0 10V dimmable 60w constant voltage led driver junction box

This new 60W dimmable led driver adopts PWM dimmable mode, with a dimming range of 100%-0.1% ultra-deep dimming. It is compatible with popular front and rear thyristor dimmers and systems, and 0-10V dimmers and systems on the market. Such as Lutron dimmer

  • item no.:

    SHA-12060J
  • brand:

    SMARTS
  • Input Voltage:

    110-277VAC
  • Output Voltage:

    12VDC
  • Working Mode:

    Constant voltage
  • Certification:

    UL, ROHS, FCC
  • Warranty:

    5 years
inquiry now
product details

12V/24V/48V triac & 0 10V dimmable 60w constant voltage led driver junction box

smarts new product constant voltage 60w led driver dimmable mode is CCT& triac/0 10v dimmable, with built-in fine-tuning voltage function knob, which can compensate the light attenuation of the lamp, and restore the optimal brightness of the lamp by increasing the voltage

  Specification

Model Number SHA-12060J SHA-24060J SHA-48060J
Output Type
Reted Power
Reted Voltage 12V 24V 48V
Reted Current 5A 2.5A 1.25A
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Load Regulation ±1%
Input Type
Voltage Range 110-277V
Frequency Range 47-63HZ
Efficiency(Typ.) 83%@120VAC 84%@277VAC
Total Harmonic Distortion THD< 15%(@100% load)
Power Factor(typ.) 0.99@120VAC 0.98@277VAC
AC Current(Typ.) 0.65A
Inrush Current(Typ.) 20A
Leakage Current <0.5mA
PROTECTION
Short Circuit Hiccup mode, recovers automatically after fault condition is removed.
Over Load Intelligently reduce the output voltage, auto-recovery or re-power on to recovery
Over Temperate 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
ENVIRONMENT
Working Temp. Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section)
Working humidity 20 ~ 95% RH non-condensing
Storage temp., Humidity -40 ~ +90, 10 ~ 95% RH
Temp .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
SAFETY & EMC
Safety standards UL8750, CSAC22.2 No. 250.0-08
Withstand voltage I/P-O/P:1.88KVAC
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC Emission Compliance to FCC part 15  Subpart B
OTHERS
Dimension 158x120.5x42mm (L*W*H)
Packing -
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  Mechanical Specification


Wire Specification

SHA-J Input Output 0/1-10V Dimming
Power Function Color Spec. Function Color Spec. Function Color Spec.
60W AC L Black 18AWG DC+ Red 18AWG Dim+ Purple 18AWG
AC N White 18AWG DC- Black 18AWG Dim- Pink 18AWG
Ground Green 18AWG CW- Yellow 18AWG / / /




Function Introduction



Mounting

1.This driver must be installed in a well-ventilated area free from explosive gases and

vapors. Air circulation is essential for heat dissipation.

2.Recommended spacing between LED drivers should be a minimum of 4” (10cm).

3.Do not mount driver close to or above objects that can radiate. Vertical mounting

is highly recommended.

4.Select an appropriate location that is able to support the weight of the product.

5.Use the mounting tabs on the left and right side of the driver to mount the product.



Connecting Diagram
Using TRIAC/Phase cut dimming
1.Through a phase-dimmer or lighting system, control the input AC phase line (L) and adjust the output PWM
2.Triac dim mode: Forward phase & reverse phase, MLV, ELV dim
3.Please try to use dimmers with power at least 1.5 times as the output power of the driver.


  Dimming operation


Works with Two channel CCT warm-dim LED strip/tape (3 wires)




  Related Products

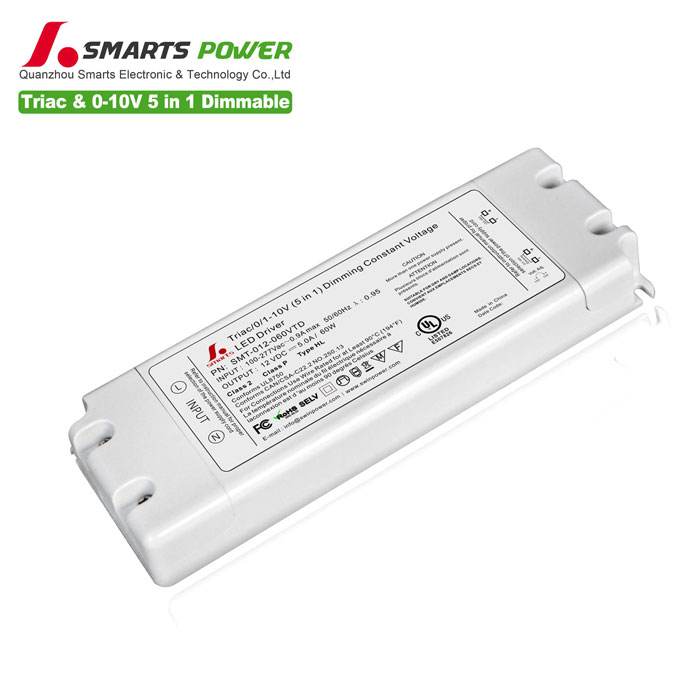

60W triac & 0 10v dimmable led driver, plastic shell design, waterproof grade ip20, compact body, easy and quick to install, UL certified, mainly sold to North America, suitable for installation and use in indoor lighting projects
