Non-dimmable LED Driver

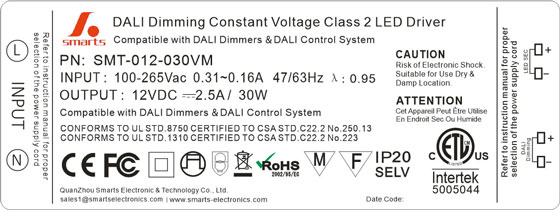

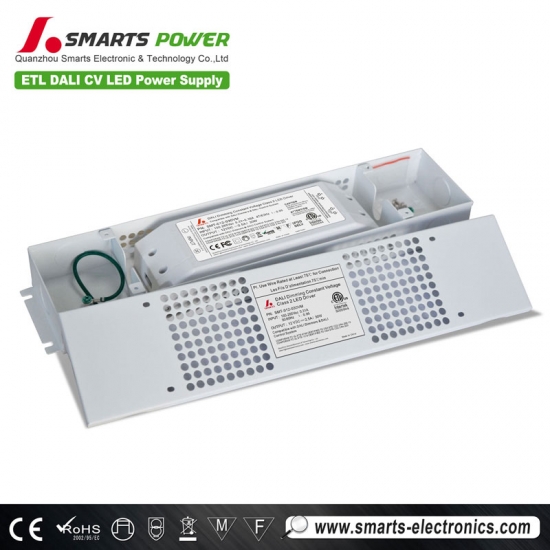

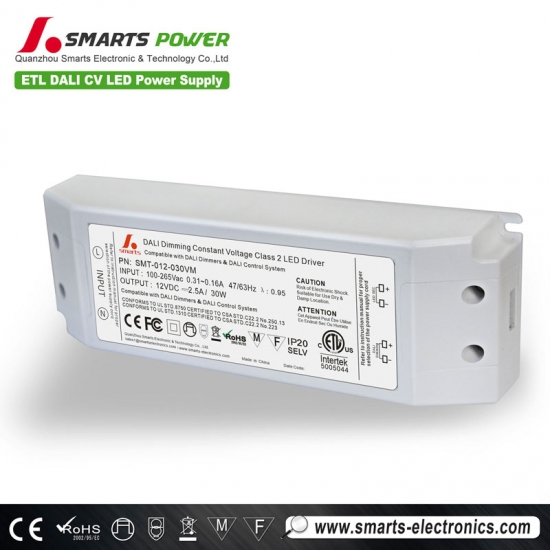

12V 30W dimmable dali constant voltage class 2 led driver

Item: SMT-012-030VM is 30W dimmable dali constant voltage led driver with 3 Years Warranty
  • item no.:

    SMT-012-030VM
  • lead time:

    15 working days
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    T/T Paypal Western Union
  • Input Voltage:

    100-265v
  • Output Voltage:

    12V
  • Output Current:

    2.5A
  • Working Mode:

    constant voltage type
  • Certification:

    CE, ETL, FCC , RoHS approval
  • Warranty:

    3 years warranty
inquiry now
product details

30W dimmable dali constant voltage led driver with 3 Years Warranty

Specification                                                   CE  ETL/CETL  FCC ROHS  SELV  IP20

Model

SMT-012-030VM

 SMT-024-030VM

          SMT-036-030VM

output

DC Voltage

12V

24V

36V

Voltage Tolerance

±0.5V

Rated current

0~2.5A

0~1.25A

0~0.833A

Rated power

30W

input

Voltage Range

100~130 / 170-265VAC

Frequency Range

47~63HZ

Power Factor (Typ.)

PF0.92/110V  / PF0.95/220V

Efficiency(Typ.)

>87%

>87%

>86%

AC Current(Typ.)

0.17A

0.16A

0.15A

Leakage current

< 0.40mA/110VAC / < 0.50mA/220VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed

Over Loading

120%

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH, non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes







Safety&EMC

Safety standards

EN61347-1 EN61347-2-13

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

EN55015,EN61000-3-2,3 (50%loading)

EMC IMMUNITY

EN61000-4-2,3,4,5,6,11(Surge 4KV)

Others

Net.Weight

0.55Kg

Size

180*60*34mm(L*W*H)

packing

355*215*215mm/20pcs/CTN

Notes

1. All parameters NOT specially mentioned are measured at 110V / 220VAC input , rated load

    and  25℃of ambient temperature.



2. Tolerance: includes set us tolerance, line regulation and load regulation .



3. The power supply is considered as a component that will be operated in combination with final     Equipment. Since EMC performance will be affected by the complete installation, the final             equipment manufactures must be-qualify EMC Directive on the complete installation again

 features


1.  Cooling by nature.

2.  100% full load burn-in test

3.  High reliability designing solution

4.  High efficiency,save energy ,protected environment

5.  High stability and low ripple, increase light efficiency

6.  and decrease light attenuation.

7.  Meet to safety standard and EMC.

8.  Assure LED stability long lift and light efficiency by constant voltage.

9.  Passed high ,low temperature and waterproof testing.

10. integrity protection,over loading, over voltage ,over current.

11. 8Hrs and 100% full load burn-in test.

certificates

CE(EMC+LVD),ROHS

application

Our products are widely used in various industries, such as

  • indoor LED illuminating lights,
  • LED Neon,
  • LED urban Decoration
  • LED Lighting Advertising,
  • LED Display,
  • Safety Protection Apparatus,
  • Telecommunications,
  • Networks,
  • Vehicle Lights, Controller Panels, etc



company information

                                                                       ABOUT US

Smarts Electronic&Technology Co.,Ltd, established in 1998, is a high-tech enterprise specialized

           in providing LED power supllies,such as constant voltage & current LED drivers,

                     0-10v /Triac/Dali dimmable led drivers, enclosure power supplies,

                             switching power adapters.Most of our products got

                                                     CE,ROHS approval

               We always focus on providing better products and service to our customers.

.png

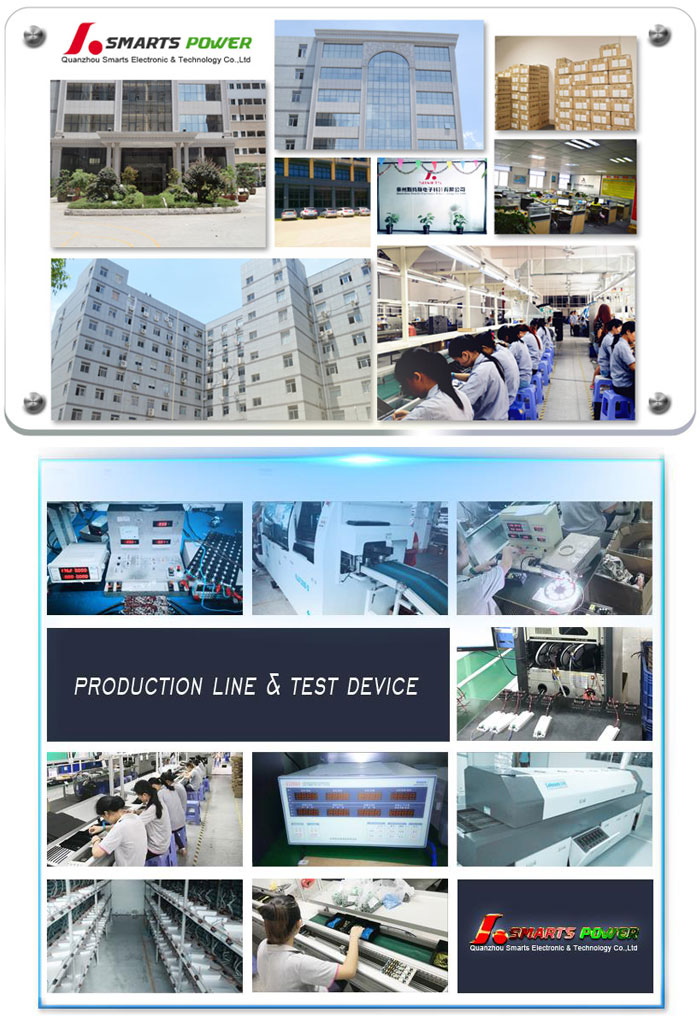

factory & equipments view:



  FAQ


Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)

Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).

Q3. What's the MOQ?
A3: Our MOQ is 1pcs. better price for large quantity;

Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.

Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.





Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.

Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.

Q8. What's the payment conditon?
A8: T/T in advance or 30% deposit and 70% before delivery (optional)

Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.





Q10.How to contact with me??
A9:   Skype: steven821228


        Whatsapp/Phone: +86 13489577737
        E-mail: steven@smartselectronic.com. cn
