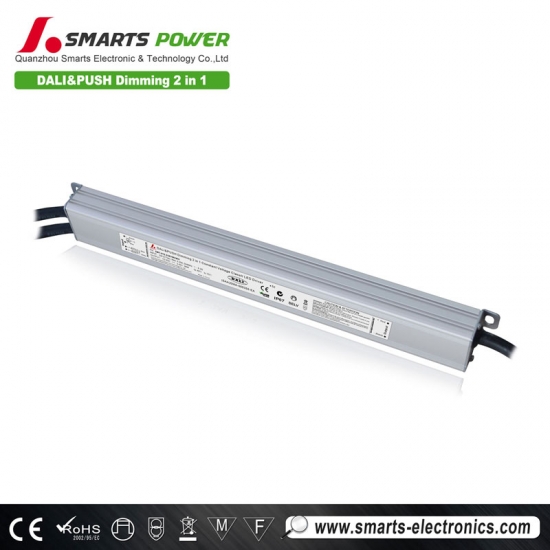

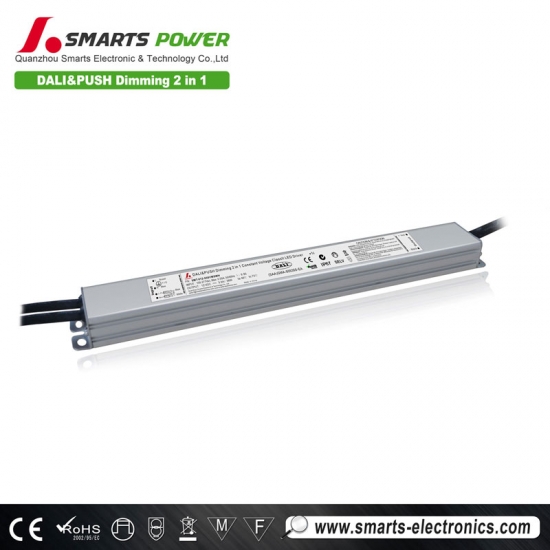

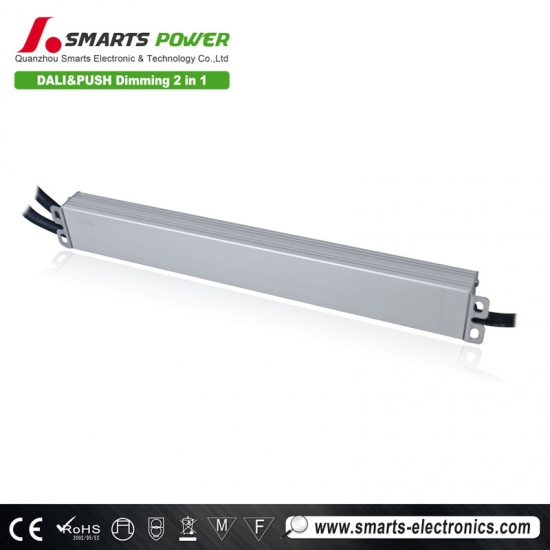

240 volt to 12v transformer 36w for led strip
SMT-012-036VMSWH is IP67 for outdoor wet location,12v transformer for led strip to be used well with indoor & outdoor Lumilum small LED strips .
Specification
model
SMT-012-036VMSWH
SMT-024-036VMSWH
Output
DC Voltage
12VDC
24VDC
Voltage Tolerance
±0.5V
±0.5V
Rated current
3.0Amp
1.5Amp
Rated power
36W
36W
Voltage Regulation
±0.5%
Load Regulation
±2%
±1%
Input
Voltage Range
100-277VAC
Frequency Range
47～63HZ
Power Factor(Typ.)@ full load
0.98@120VAC
0.98@120VAC
Efficiency(Typ.)@ full load（Typ.）
>82%
>82%
AC Current(Max.)
0.45A@100VAC
THD(Typ. ) @ full load
10%@120VAC
10%@120VAC
Inrush Current（Typ.）
4.64A (twidth=460us) @120VAC ; 33.2A (twidth=116us) @230VAC ;
12.4A (twidth=430us) @277VAC ;
Leakage current
<0.5mA
Protection
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition removed
Over Load
≤120% Hiccup mode ,recovers automatically after fault condition is removed
Protection Class
I
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling
Environment
Working TEMP.
-40~+60℃ (see below derating curve)
Working Humidity
20～95%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13 (EU) and UL8750 (US)
Withstand voltage
I/P-O/P:3.75KVAC (EU) and I/P-O/P:1.88KVAC (US)
Isolation resistance
I/P-O/P：100M Ohms/500VDC/25℃/70%RH
EMC EMISSION
Compliance to EN55015, EN61000-3-2 (≥60%load) (EU) and FCC Part 15 (US)
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry
Others
Weight
0.35Kg
Size
260*32*20mm(L*W*H)
packing
290*270*160mm/30PCS/CTN G.W.:11KG/CTN
Notes
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
 |
 |
 |
 |
Mechanical Specification
Dimming operation

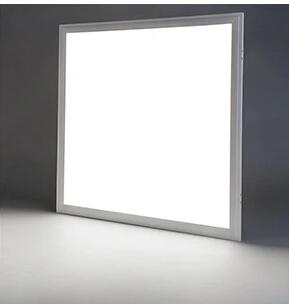

Compatible LED ceiling light Type
The 12v ceiling light transformer is made for office, retail, and hospitality 3000k 3500k 5000k use, these side-lit dimmable LED flat panel lights are commercial grade and built to last.
As a standard mounting option, the led trasnformer shoould be longer warranty and include mounting hooks for acoustic ceiling installation.
Related Products
|

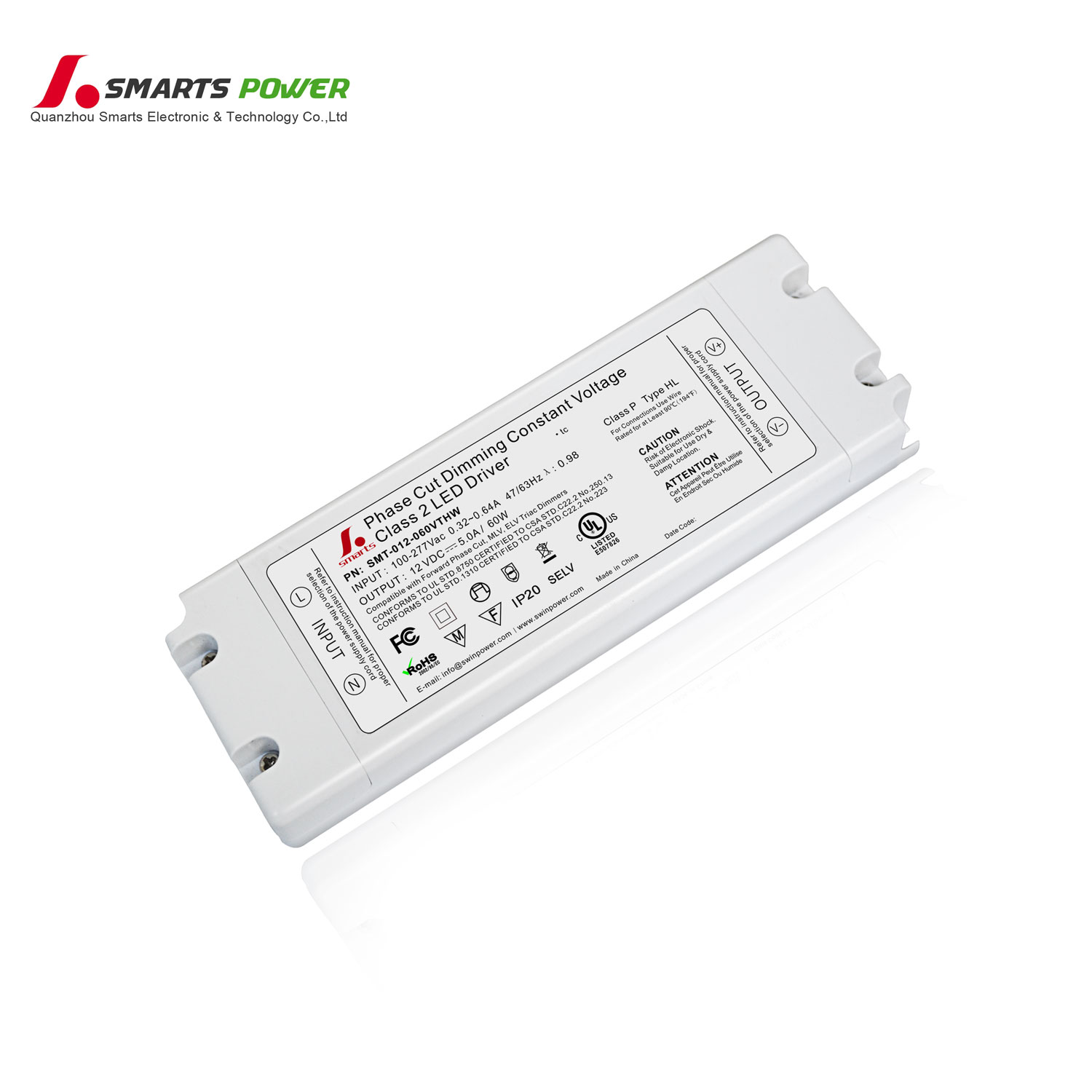

Mode：SMT-012-060VTHWH |
