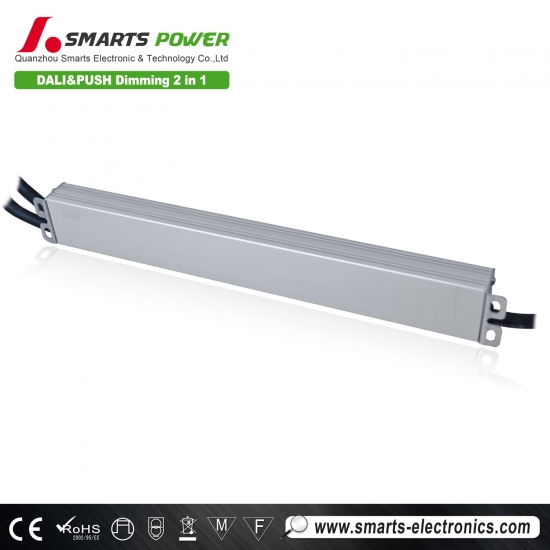

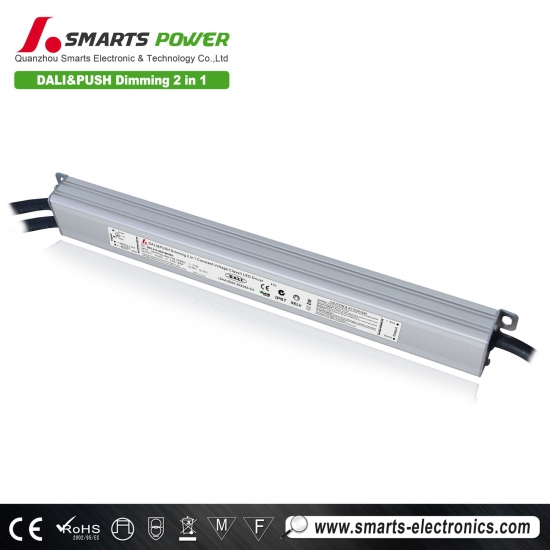

CE ROHS dali constant voltage LED driver 12v 60w led transformer
You will always to get great deals on 12v dc led driver, shop at Smarts Electronics and it will lighten most of the small LED chips from CREE.
Specification
model
SMT-012-060VMSWH
SMT-024-060VMSWH
Output
DC Voltage
12VDC
24VDC
Voltage Tolerance
±0.5V
±0.5V
Rated current
5.0Amp
2.5Amp
Rated power
60W
60W
Voltage Regulation
±0.5%
Load Regulation
±2%
±1%
Input
Voltage Range
100-277VAC
Frequency Range
47～63HZ
Power Factor(Typ.)@ full load
0.98@120VAC
0.98@120VAC
Efficiency(Typ.)@ full load（Typ.）
>86%
>88%
AC Current(Max.)
0.73A@100VAC
THD(Typ. ) @ full load
10%@120VAC
10%@120VAC
Inrush Current（Typ.）
3A (twidth=220us) @120VAC ; 34A (twidth=121us) @230VAC ;
12.4A (twidth=680us) @277VAC ;
Leakage current
<0.5mA
Protection
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition removed
Over Load
≤120% Hiccup mode ,recovers automatically after fault condition is removed or
shut down o/p voltage, re-power on to recover after fault condition removed
Protection Class
I
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling
Environment
Working TEMP.
-40~+60℃ (see below derating curve)
Working Humidity
20～95%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13 (EU) and UL8750 (US)
Withstand voltage
I/P-O/P:3.75KVAC (EU) and I/P-O/P:1.88KVAC (US)
Isolation resistance
I/P-O/P：100M Ohms/500VDC/25℃/70%RH
EMC EMISSION
Compliance to EN55015, EN61000-3-2 (≥60%load) (EU) and FCC Part 15 (US)
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry
Others
Net Weight
0.43Kg
Size
300*32*23mm(L*W*H)
packing
330*270*311mm/30PCS/CTN G.W.:13.9KG/CTN
Notes
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
 |
 |
 |
 |

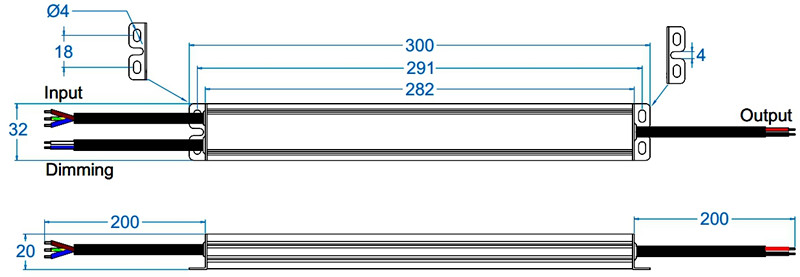

Mechanical Specification
Input Rubber cable H05RN-F 3*1.0mm², the green/yellow cable connect with (FG) ,Brown with AC (L),Blue with AC(N)
Output rubber cable H05RN-F 2*1.0mm², Red is output ( V+) Positive, Black is output (V-) negative. Connected to LED Lights

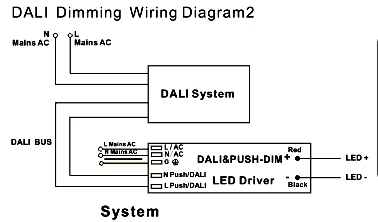

Dimming operation
Compatible LED panel Type

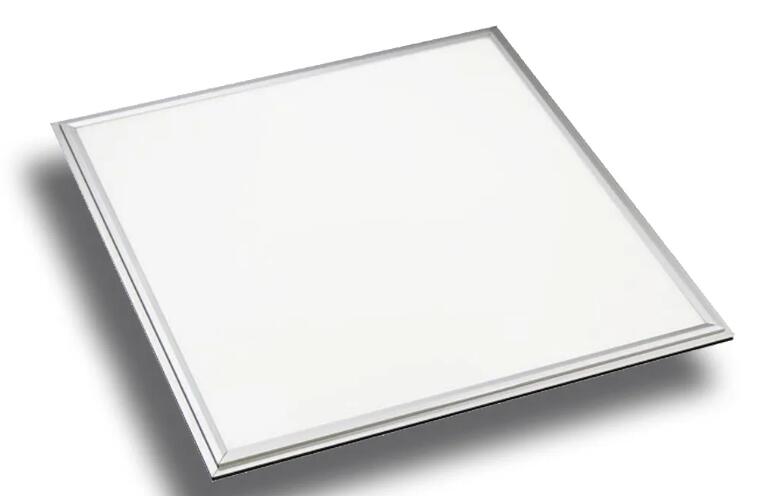

The rohs led driver are available in 4000K, the Edge Lit Flat Panel is suitable for indoor use only. The Edge Lit Flat Panel has no warm-up time (nstant-on) with full light output and consistent luminaire-to-luminaire color. The low heat generation of the luminaire helps reduce HVAC costs. With no UV or infrared radiation, the product is dimmable down to 1% with compatible 0-10 volt dimmer from Green LED Lighting
Related Products
|
Mode：SMT-012-100VTDHV2 |

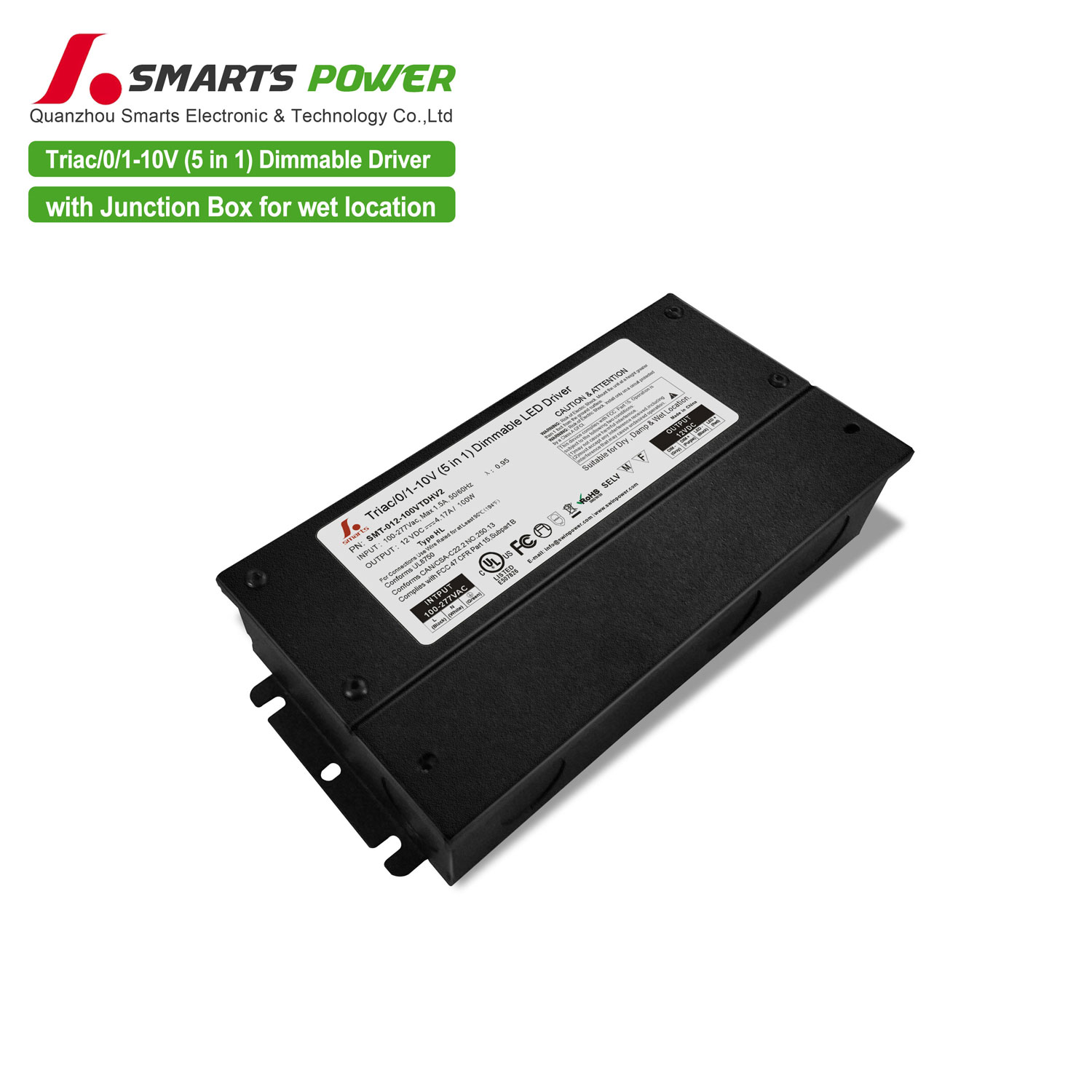

The 12vdc 100w triac 0-10v
