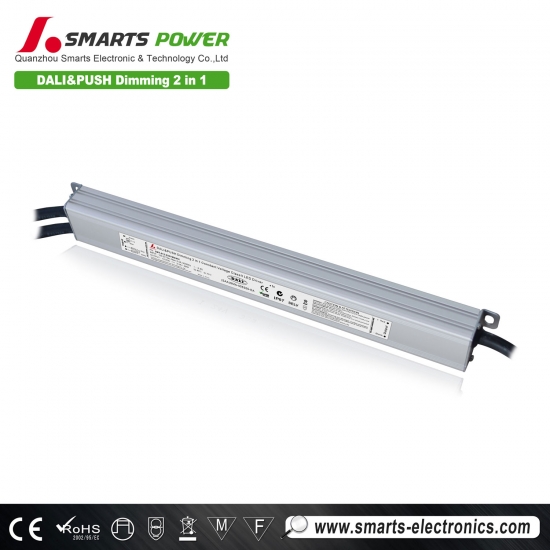

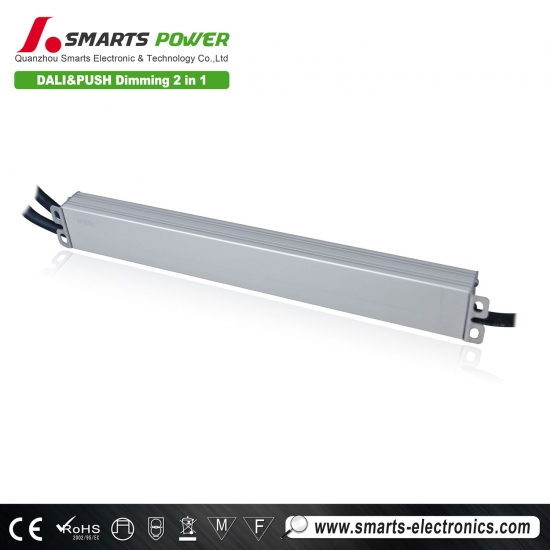

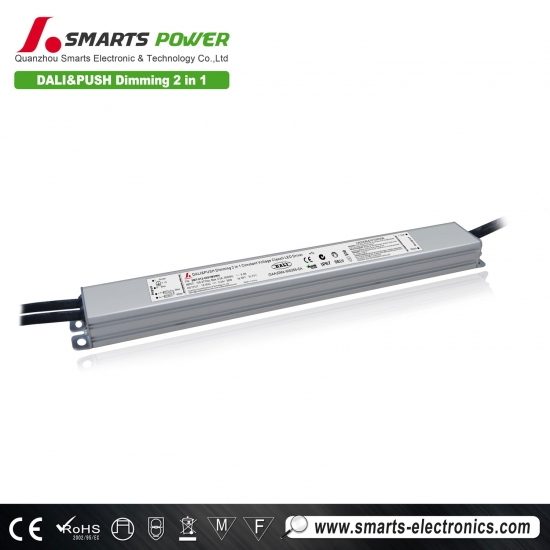

Non-dimmable LED Driver

CE ROHS listed slim type dimmable led driver 12v 30w

The LED lighting driver is always desiged using highly performance of dimmable led driver 12v for LED Flood Light 3700 Lumens | 3000K, 4000K or 5000K | White or Dark Bronze.
  • item no.:

    SMT-012-030VMSWH
  • brand:

    SMARTS
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12vdc
  • Output Current:

    2.5A
  • Working Mode:

    Constant voltage
  • Certification:

    CE ROHS
  • Warranty:

    7 years
inquiry now
product details

CE ROHS listed slim type dimmable led driver 12v 30w


All the led driver from Smarts is compliance to worldwide safety regulations for lighting, Strong compatibility, Flicker-free dimming led driver 12v dc, there are 3 & 5 & 7 years warranty for Amax Lighting's LED Sign with High Resolution Scrolling LED Sign, Red LED Sign Board.


  Specification


model

SMT-012-030VMSWH

SMT-024-030VMSWH

Output

DC Voltage

12VDC

24VDC

Voltage Tolerance

±0.5V

±0.5V

Rated current

2.5Amp

1.25Amp

Rated power

30W

30W

Voltage Regulation

±0.5%

Load Regulation

±2%

±1%

Input

Voltage Range

100-277VAC

Frequency Range

4763HZ

Power Factor(Typ.)@ full load

0.98@120VAC

0.98@120VAC

Efficiency(Typ.)@ full loadTyp.

>81%

>81%

AC Current(Max.)

0.38A@100VAC

THD(Typ. ) @ full load

10%@120VAC

10%@120VAC

Inrush CurrentTyp.

4.64A (twidth=460us) @120VAC ;  33.2A (twidth=116us) @230VAC ;

12.4A (twidth=430us) @277VAC ;

Leakage current

<0.5mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition removed

Over Load

≤120%  Hiccup mode ,recovers automatically after fault condition is removed

Protection Class

I

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling



Environment

Working TEMP.

-40~+60 (see below derating curve)

Working Humidity

2095%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

EN61347-1    EN61347-2-13  (EU)  and  UL8750  (US)

Withstand voltage

I/P-O/P:3.75KVAC  (EU)  and  I/P-O/P:1.88KVAC  (US)

Isolation resistance

I/P-O/P100M Ohms/500VDC/25℃/70%RH

EMC EMISSION

Compliance to EN55015, EN61000-3-2 (60%load) (EU) and FCC Part 15 (US)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry

Others

Weight

0.35Kg

Size

260*32*20mm(L*W*H)

packing

290*270*160mm/30PCS/CTN    G.W.:11KG/CTN

Notes

1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.

2. Tolerance: includes set up tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

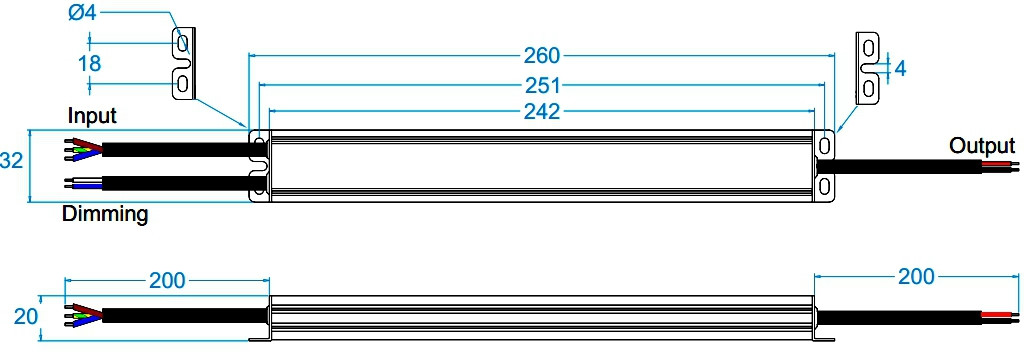

  Mechanical Specification


led transformer 12v


  Dimming operation


dali dimmable driver

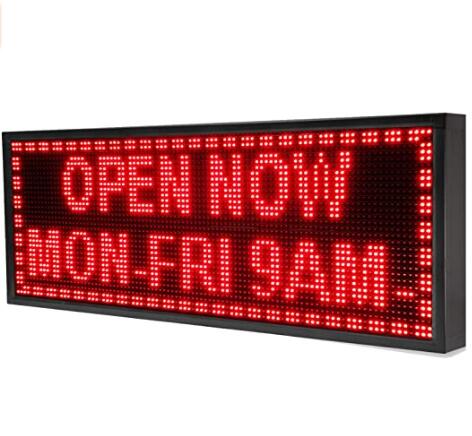

  Compatible LED Sign Type


There are custom LED Sign: This Programmable LED Sign with Remote Control stores 99 messages share 7000 characters, 30 built-in symbols, 7 kinds of fonts, various display methods and speed.

Time, date and alarm clock also can be added into it. Custom your ads with cute and vivid animations, outstanding the other universal ones.

dali dimmable driver


  Related Products

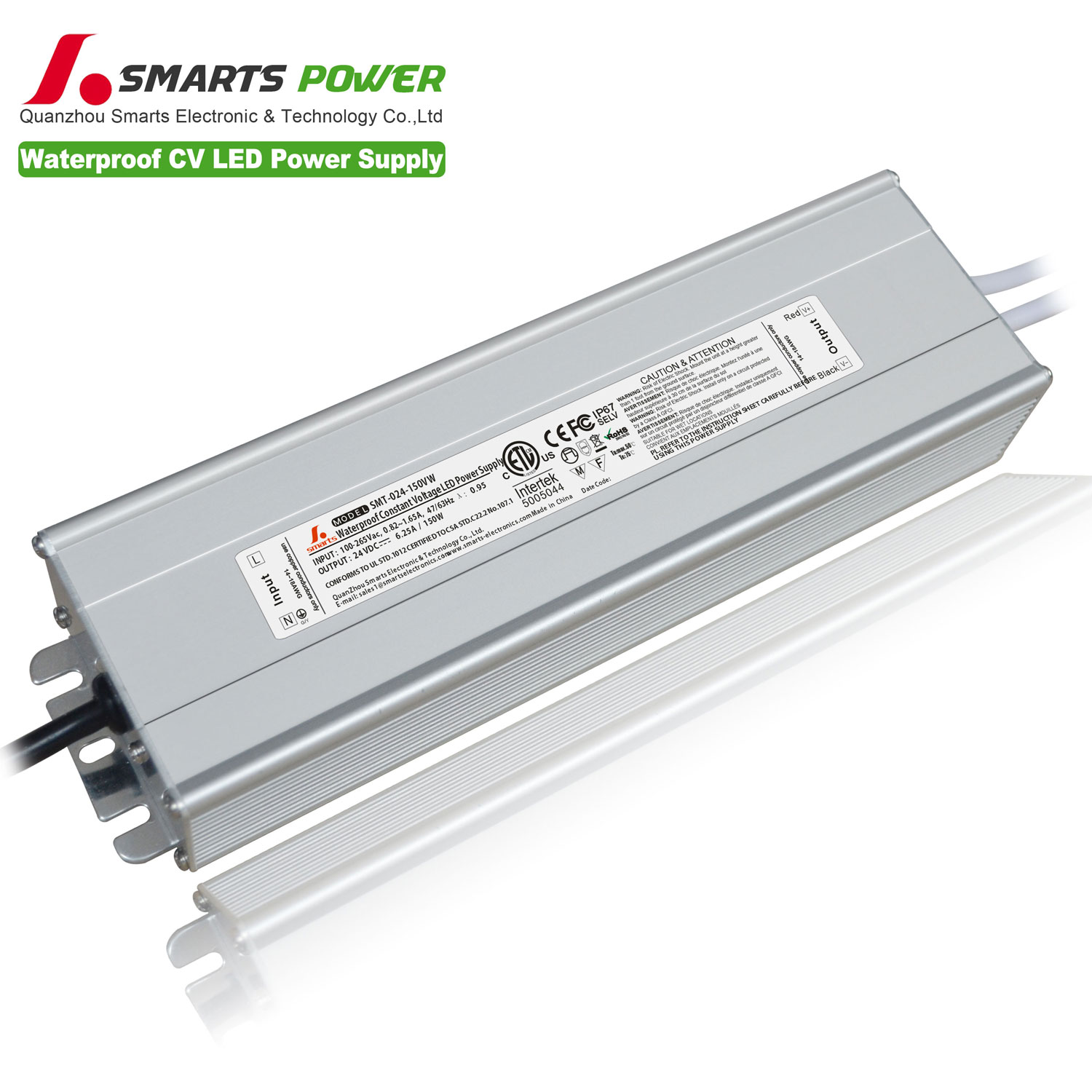

led transformer 12vMost of our led transformer 12v 24v are widely used in the LED strips field. Our non dimmable led driver are most for outdoor appications.
