Non-dimmable LED Driver

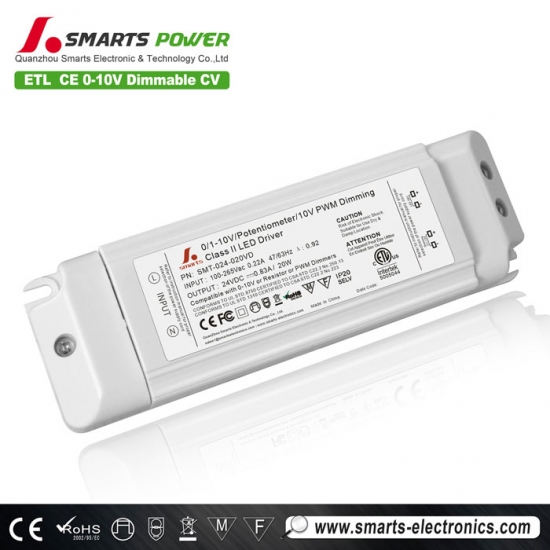

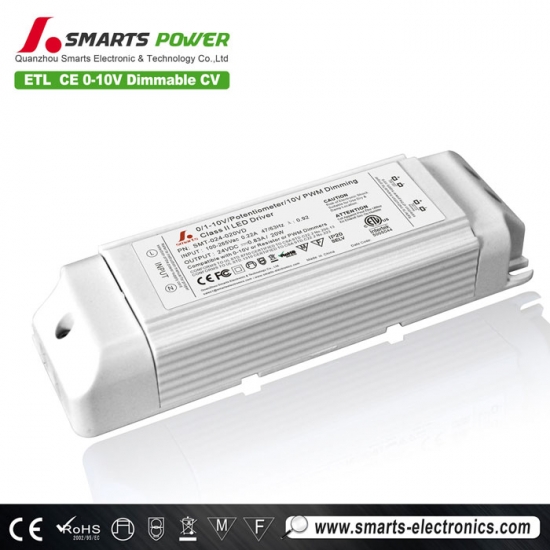

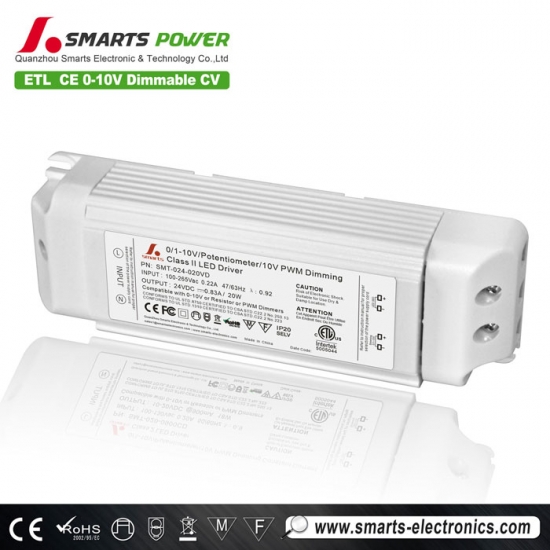

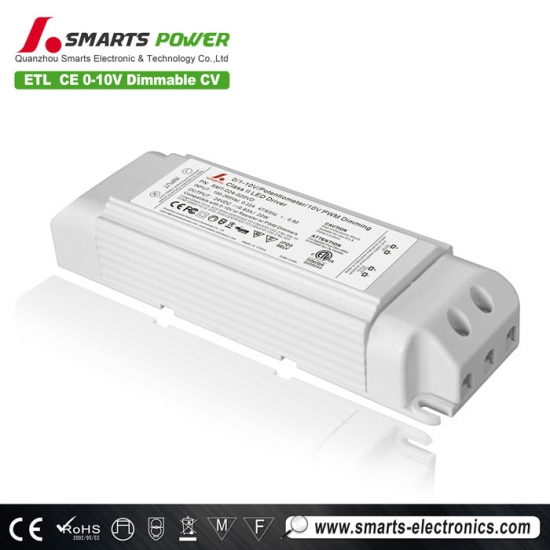

24v 20w constant voltage 0-10v dimmable led transformer

24v constant voltage 0-10v dimmable led transformer;20w 0-10v dimmable led transformer;constant voltage 0-10v dimmable led transformer
  • item no.:

    SMT-024-020VD
  • lead time:

    15 working days for 500pcs
  • product orgin:

    FuJian, china
  • brand:

    SMARTS
  • shipping port:

    XIAMEN
  • payment:

    T/T, Paypal, western union, trade assurrance
  • Input Voltage:

    100~265VAC
  • Output Voltage:

    20W
  • Output Current:

    0.83A
  • Working Mode:

    Constant Voltage
  • Certification:

    ETL FCC
  • Warranty:

    3 Years
inquiry now
product details

24v 20w constant voltage 0-10v dimmable led transformer


 Product Description


Model

SMT-012-020VD

SMT-024-020VD

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

Rated current

01.66A

00.83A

Rated power

20W

20W

Input

Voltage Range

100~265VAC

Frequency Range

4763HZ

Power Factor ( Typ.

PF0.90/110V, PF0.90/220V

Full Load EfficiencyTyp.

      >88%/110V

          >88% 220V

AC CurrentTyp.

      0.23A/110V

          0.11A/220V

Leakage current

0.7mA/110V, 220VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition   is removed

Over voltage

280VAC

Over temperature

100±10 shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40+50

Working Humidity

2095%RH,non-condensing

Storage TEM.,Humidity

-40+801095%RH

TEMP.coefficient

±0.03%/050

Vibration

10500Hz5G 12min./1 cycleperiod for 72min.each along X,Y,Z axes

Safety&EMC

Safety standards

EN61347-1 EN61347-2-13

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG100MΩ/500VDC/25/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (50%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry

level

Others

Weight

0.16Kg

Size

140*45*27mmL*W*H

packing

320*280*215mm/50pcs /CTN   145*50*36mm for inner box

Notes

1. All parameters NOT specially mentioned are measured at 110V,220VAC input , rated load

   and 25of ambient temperature.

2.  Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire

   terminated with a 0.1uf &47uf parallel capacitor.

3. Tolerance:includes set us tolerance,line regulation and load regulation .

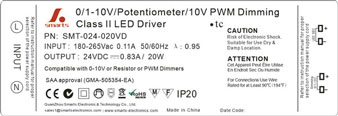

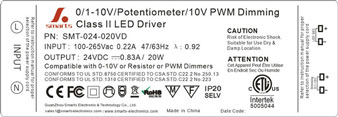

  Label   24v 20w constant voltage 0-10v dimmable led transformer0-10v dimmable led transformer
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top




 Features


  • High efficiency,save energy ,protected environment.
  • High stability and low ripple, increase light efficiency and decrease light attenuation.
  • Meet to safety standard and EMC
  • Assure LED stability long lift and light efficiency by constant voltage.
  • Integrity protection,over loading, over voltage ,over current.
  • Protections:Short circuit/Overload/Over temperature
  • Cooling by free air convection
  • 100% full load burn-in test.
  • Suitable for LED lighting


 Environment


  • Working temp: -30~+50℃ (Refer to output load derating curve)
  • Working humidity: 20~99% RH non-condensing(Waterproof)
  • Storage temp. humidity:  -40~+80℃,10~99%RH


 Safety


  • Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
  • Withstand Voltage : I/P-O/P: 3000KVAC
  • Isolation Resistance : I/P-O/P:100M Ohms/500VDC
  • MTBF : 50Khrs min. MIL-HDBK-217F (25°C )


 Application


  • Indoor LED illuminating lights
  • LED Neon, LED urban Decoration
  • LED Lighting Advertising,LED Display
  • Safety Protection Apparatus
  • Telecommunications, Networks
  •  Vehicle Lights, Controller Panels
