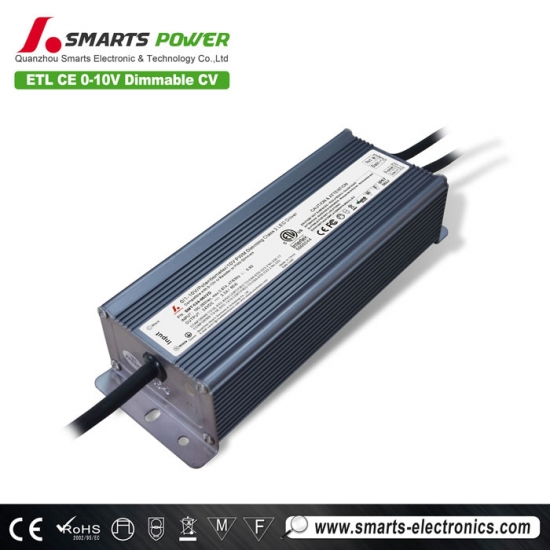

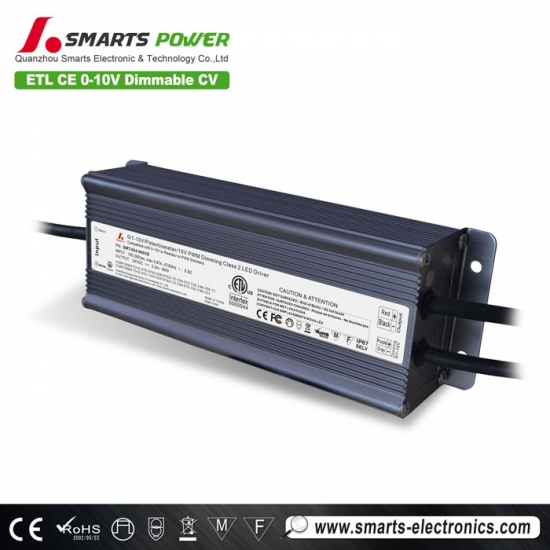

12V/24V/36V 60W waterproof dimming LED Driver/Power supply


Model

SMT-012-060VD

SMT-024-060VD

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

Rated current

0~5.0A

0~2.5A

Rated power

60W

Input

Voltage Range

100~265VAC

Frequency Range

47~63HZ

Power Factor ( Typ.)

PF>0.92/110V; PF>0.93/220V

Full Load Efficiency(Typ.)

>87%

>88%

AC Current(Typ.)

0.451A

0.425A

Leakage current

<0.66mA/110VAC ; <0.7mA/220VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over voltage

<280VAC

Over temperature

100℃±10℃ shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~95%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes

Safety&EMC

Safety standards

EN61347-1  EN61347-2-13.

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (>50%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry

level

Others

Weight

1.1Kg

Size

200*68.5*45mm(L*W*H)

packing

329*279*176mm/10pcs /CTN   245*80*58mm for inner box

Notes

1. All parameters NOT specially mentioned are measured at 110V/220VAC input , rated load

   and 25℃ of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire

terminated with a 0.1uf &47uf parallel capacitor.

3. Tolerance:includes set us tolerance,line regulation and load regulation .

 FEATURES:
  • Output constant voltage type
  • Input voltage Range 100-265VAC
  • Built-in PFC function, PF>0.9
  • Efficiency> 88%
  • Protections:short circuit/over current/over voltage/over temperature
  • Cooling by free air convection
  • IP67 design for indoor or outdoor installation .
  • Dimming function:0-10V/ 1-10V/ 10V PWM or potentiometer.
  • Suitable for LED lighting and moving sign applications
  • Compliance to worldwide safety regulations for lighting
  • Suitable for dry/damp/wet locations
  • 3 years warranty

60W dimmable driver Mechanical Specification

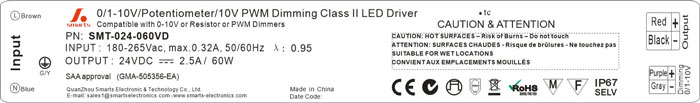

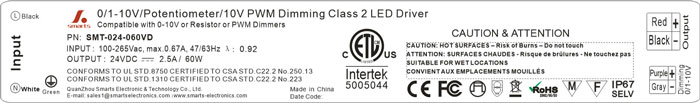

12V/24V/36V 60W waterproof dimming LED Driver/Power supply



  • Input Rubber H03VV-F 3G *0.75m2,the green/yellow cable connect with (FG),Brown with AC (L),Blue with AC(N)
  • Signal Rubber H03VV-F 2G*0.75m2,Blue is(DIM+),White is(DIM-)
  • Output Rubber H03VV-F 2G*0.75m2,Red is output(V+),Black is output(V-)

Dimming Operation

  • Built-in 3 in 1 dimming function, IP66 rated .Output constant current level can be adjusted through output cable by connection a resistance or 0/1-10V DC or 10V PWM signal between DIM+ and DIM-

Reference resistance value for output current adjustment (Typical)

Resistance value

Signle driver

10KΩ

20KΩ

30KΩ

40KΩ

50KΩ

60KΩ

70KΩ

80KΩ

90KΩ

100KΩ

Multiple drivers

0Ω/N

10KΩ/N

20KΩ/N

30KΩ/N

40KΩ/N

50KΩ/N

60KΩ/N

70KΩ/N

80KΩ/N

90KΩ/N

100KΩ/N

Percentage of rated current

0%

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%



1-10/0-10V dimmable function for output current adjustment(Typical)

Dimming value

0V

1V

2V

3V

4V

5V

6V

7V

8V

9V

10V

OPEN

Percentage of rated current

0%

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

102%-108%



10V PWM signal for output current adjustment (Typical): Frequency range:100Hz-3KHZ

Duty value

0%

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

OPEN

Percentage of rated current

0%

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

102%-108%

12V/24V/36V 60W waterproof dimming LED Driver/Power supply

  • Load carried in accordance with the load derating curve & according to the ambient temperature derating, in order to extend the service life.

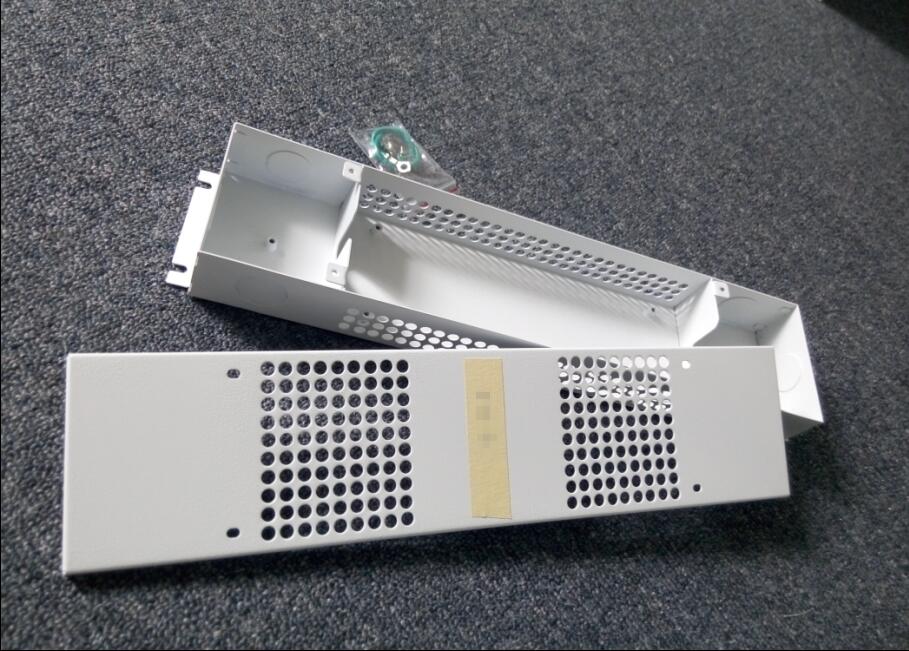

 We can supply you ETL approved Junction boxes for all kinds of the LED drivers.
