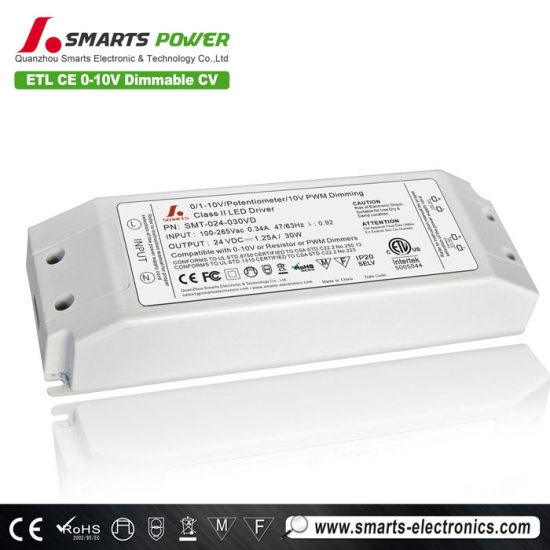

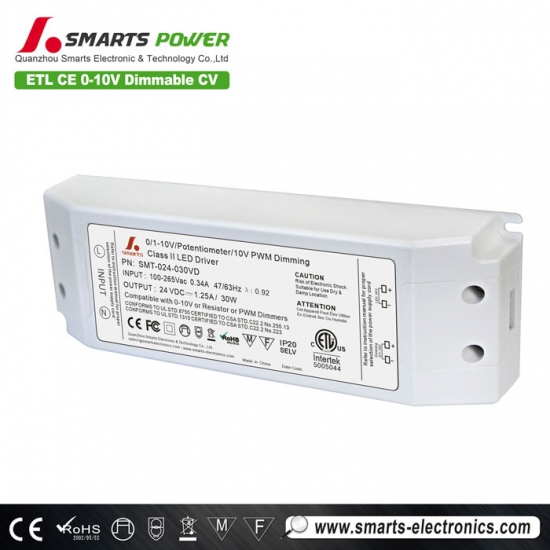

ce etl certification 30w 24vdc 0-10v/pwm dimming led driver


 Features


  • Output constant current
  • Range 100-265VAC
  • Built-in PFC function, PF> 0.9
  • Efficiency> 88%
  • Protections:short circuit/over current/over voltage
  • Cooling by free air convection
  • IP20 design for indoor installation .
  • Dimming function:0/1-10V/ 10V PWM or potentiometer.
  • Dimming range:0-100%
  • Suitable for LED lighting and moving sign applications with dimming
  • Compliance to worldwide safety regulations for lighting
  • 3 years warranty


model

SMT-012-030VD

SMT-024-030VD

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

Rated current

0~2.5A

0~1.25A

Rated power

30W

Ripple&noise Max.

120mVp-p

200mVp-p

Input

Voltage Range

170~265VAC or 240~375VDC(90~265VAC can customized)

Frequency Range

47~63HZ

Power Factor ( Typ.)

PF>0.99/170V PF>0.98/220V PF>0.95/265V

Full Load Efficiency(Typ.)

83%

85%

AC Current(Typ.)

0.37A/170VAC  0.28A/220VAC  0.23A/265VAC

Leakage current

<0.25mA/220VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over voltage

<280VAC

Over temperature

100℃±10℃ shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~95%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-2-13.IP67

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (>50%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,Alight industry level (surge4KV)

Others

Weight

0.34Kg

Size

262*29*20mm(L*W*H)

packing

324*298*188mm/50pcs/CTN

Notes

1. All parameters NOT specially mentioned are measured at 120V & 230VAC input , rated load and 25℃of ambient temperature.

Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a  0.1uf &47uf parallel capacitor.

2. Tolerance:includes set us tolerance,line regulation and load regulation .

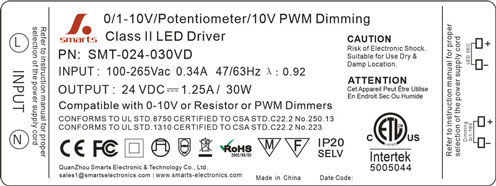

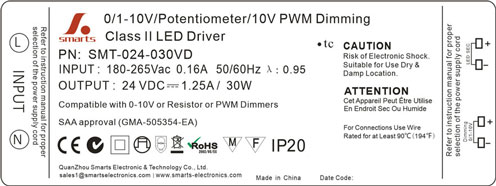

  label

pwm dimming led driver0-10v/pwm dimming led driver

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

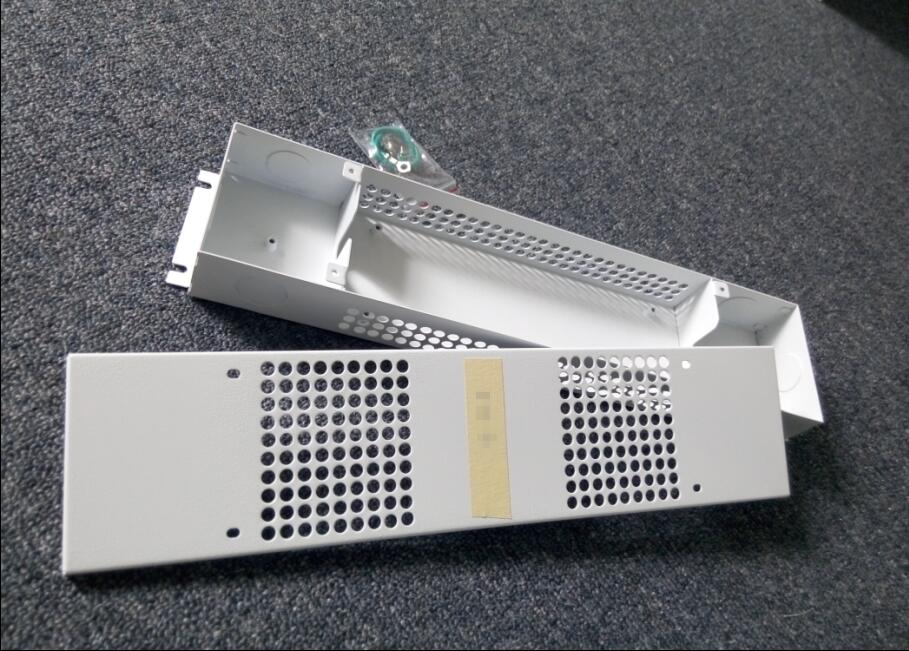

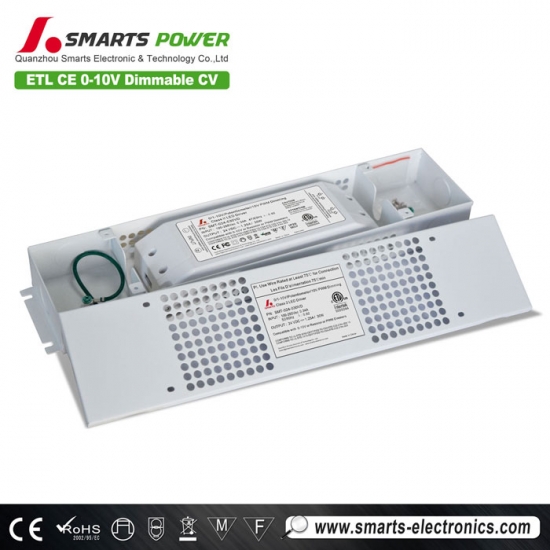

  30W dimmable driver Mechanical Specification


constant voltage led driver

  • Input 18AWG*3C,the green/yellow cable connect with (FG),Brown with AC (L),Blue with AC(N)
  • Signal 18AWG*2C,Red is(DIM+),Black is(DIM-)
  • Output 18AWG*2C,Blown is output(V+),Blue is output(V-)
  • Note: Any other requests we can customized.


 Dimming Operation


  • Built-in 3 in 1 dimming function, I67 rated .Output constant current level can be adjusted through output cable by connection a resistance or 1-10V DC or 10V PWM signal between DIM+ and DIM-


 Reference resistance value for output current adjustment (Typical)


Resistance value

Signle driver

10KΩ

20KΩ

30KΩ

40KΩ

50KΩ

60KΩ

70KΩ

80KΩ

90KΩ

100KΩ

OPEN

Multiple drivers

0Ω/N

10KΩ/N

20KΩ/N

30KΩ/N

40KΩ/N

50KΩ/N

60KΩ/N

70KΩ/N

80KΩ/N

90KΩ/N

100KΩ/N

——

Percentage of rated current

0%

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

102%-108%



 1-10/0-10V dimmable function for output current adjustment(Typical)


Dimming value

0V

1V

2V

3V

4V

5V

6V

7V

8V

9V

10V

OPEN

Percentage of rated current

0%

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

102%-108%



 10V PWM signal for output current adjustment (Typical): Frequency range:100Hz-3KHZ


Duty value

0%

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

OPEN

Percentage of rated current

0%

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

102%-108%
