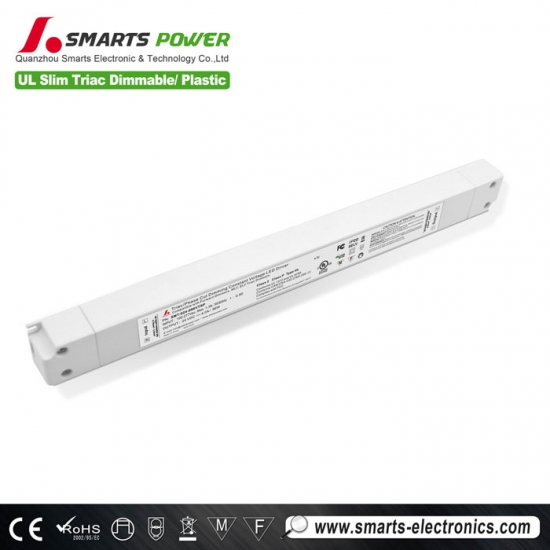

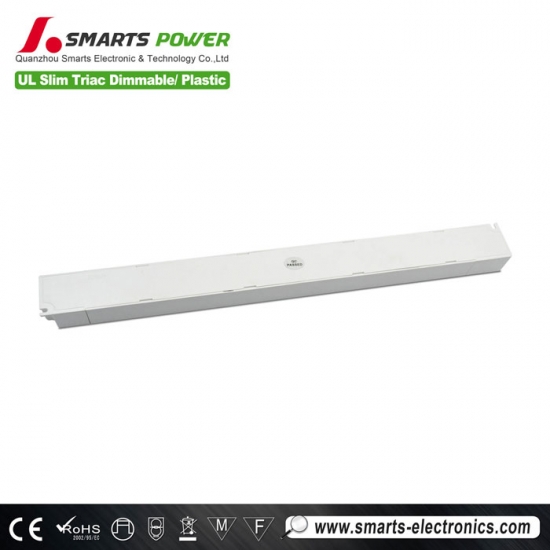

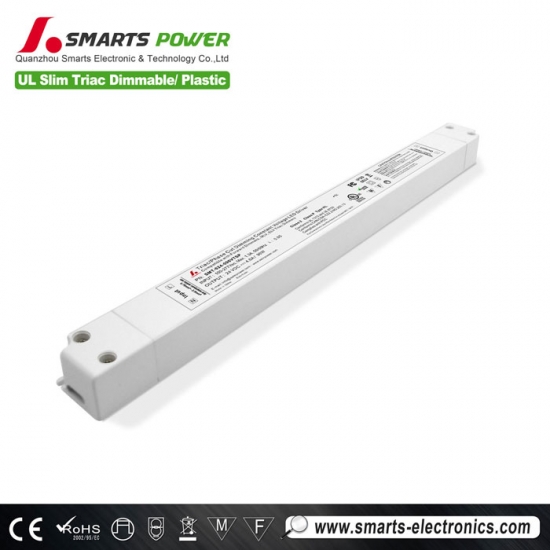

Non-dimmable LED Driver

277v led driver dimmable 24 volt constant voltage ip20 led strip light power

This type of led driver is constant voltage and dimmable led power supply. Its waterproof level is ip20 and this driver is for led strip light.
  • item no.:

    SMT-024-096VTSP
  • lead time:

    7 working days for sample order
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    xiamen
  • payment:

    EXW
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    24V
  • Output Current:

    4A
  • Working Mode:

    CV
  • Certification:

    UL
  • Warranty:

    7
inquiry now
product details

277v led driver dimmable 24 volt constant voltage ip67 led strip light power

This type of led driver is constant voltage and dimmable led power supply. Its waterproof level is ip20 and this driver is for led strip light. The Dimming range: 0~100%.


Features

·Output constant voltage type

·Input voltage range 100-277VAC

·UL/cUL listed, Class 2, Class P, Type HL, CE, ROHS approval

·Built-in PFC function / Efficiency > 80% / PF> 0.99

·Dimming range: 0~100% / load: 9~100%

·Protections:short circuit/over voltage/over heat

·IP20 design for indoor dry or damp environment installations

·Cooling by free air convection

·Work with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers

·PWM output, does not change the color index

·Strong compatibility, flicker-free dimming

·Suitable for LED lighting and moving sign applications

·Compliance to worldwide safety regulations for lighting

·7 years warranty



Specification:

model

SMT-012-100VTSP

SMT-024-096VTSP

Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

8.33Amp

4Amp

Rated power

100W

96W (class 2)

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC

Frequency Range

4763HZ

Power Factor ( Typ.

PF≧0.99/110V ;  PF≧0.98/277V

Full Load EfficiencyTyp.

>83%

>84%

AC CurrentTyp.

1.10A/100VAC  /  0.43A/277VAC

Inrush CurrentTyp.

9.2A, 50%, 1ms@120VAC / 26.4A, 50%, 780us@2770VAC

Leakage current

<0.50mA/110VAC; 0.13mA/277VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over Loading

≤120% shut down o/p voltage, re-power on to recover

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40+60℃

Working Humidity

2090%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz2G 10min./1 cycleperiod for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P: 2KVAC

Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,,11, ,

Alight industry level

Others

Weight

0.55Kg

Size

330*32*23mm (L*W*H)

packing

50PCS/CTN



Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,

Rated load and 25℃of ambient temperature.

2.  Tolerance:includes set us tolerance,line regulation and load regulation .



What kind of LED Driver/Power Supply Smarts Electronics do?

We specialized in constant voltage & current LED drivers, 010v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters.


More information if you would like to know Smarts Electronics’s led power supply, please login https://www.smarts-electronics.com/ Or contact with Mr. Steven(skype: steven821228 mail:sales1@smartselectronics.com)
