Non-dimmable LED Driver

class 2 277v ac 24v dc dimmable led power supply

SMARTS 277v ac 24v dc dimmable led power supply follow UL test standard 1310 class 2, class p, type HL.
  • item no.:

    SMT-024-060VTSW
  • lead time:

    6 working days for samples
  • product orgin:

    CHINA
  • brand:

    SMARTS
  • shipping port:

    XIAMEN
  • payment:

    EXW
  • Input Voltage:

    100-277vac
  • Output Voltage:

    24v
  • Output Current:

    2.5a
  • Working Mode:

    constant voltage
  • Certification:

    UL/cUL,FCC,CE,ROHS
  • Warranty:

    7 years warranty
inquiry now
product details
class 2 277v ac 24v dc dimmable led power supply


SMARTS 24v 60w dimmable led driver led power supply follow UL test standard 1310 class 2, class p, type HL. That’s say, if your current LEDs has been certificated with other brand LED drivers,but want to work with our power supply, its avaliable to replace their power supplies directly without against UL instruction. For more informaiton and details you want to know, pls contact us..


  Specification


model

SMT-012-060VTSW

SMT-024-060VTSW

Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

5.0Amp

2.5Amp

Rated power

60W

60W

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC

Frequency Range

4763HZ

Power Factor ( Typ.

PF≧0.99/110V ;  PF≧0.98/277V

Full Load EfficiencyTyp.

>83%

>84%

AC CurrentTyp.

0.5A/100VAC  /  0.13A/277VAC

Inrush CurrentTyp.

6.85A, 50%, 640us & 16.8A, 50%, 640us@2770VAC

Leakage current

<0.74mA/110VAC; 0.25mA/277VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over Loading

≤120% shut down o/p voltage, re-power on to recover

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40+60℃

Working Humidity

2090%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz2G 10min./1 cycleperiod for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P: 2KVAC

Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,,11, ,

Alight industry level

Others

Weight

0.45Kg

Size

300*32*20mm (L*W*H)

packing

50PCS/CTN



Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,

Rated load and 25℃of ambient temperature.

2.  Tolerance:includes set us tolerance,line regulation and load regulation .

  Label
class 2 277v ac 24v dc dimmable led power supply


Triac dimmable led driver
Dali dimmable led driver
0-10V led power supply
277v led driver

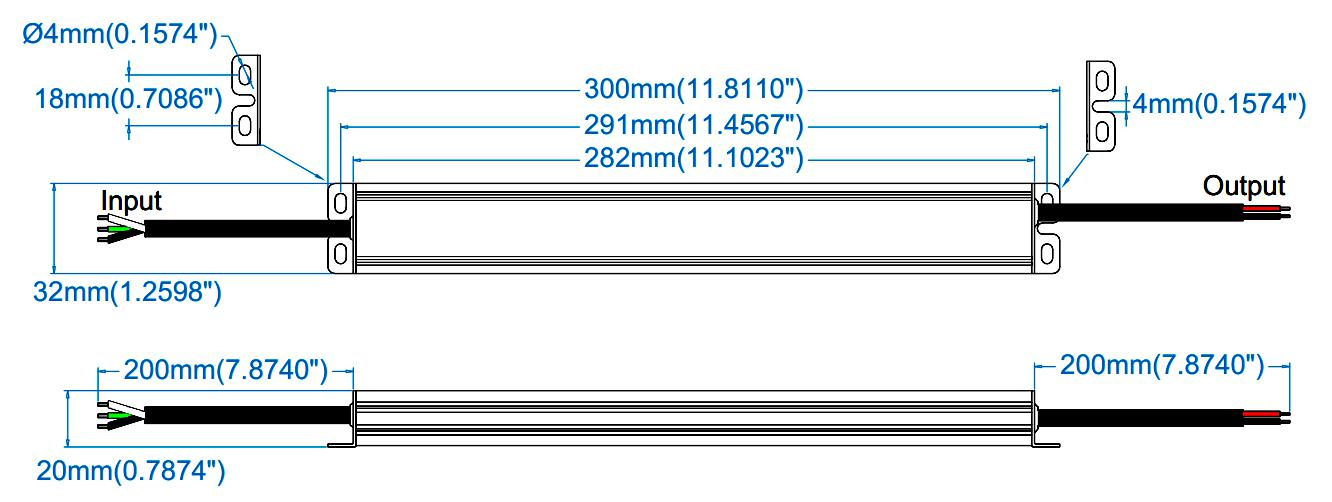

  Mechanical Specification for led dimmable driver suppliers


slimline power supply

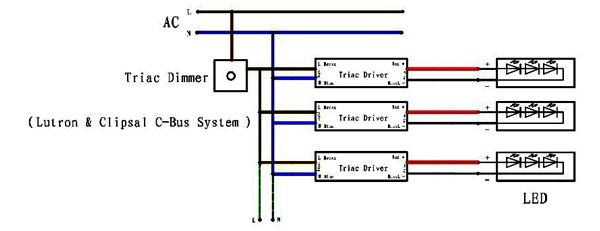

  Connecting Diagram


60w dimmable power supply

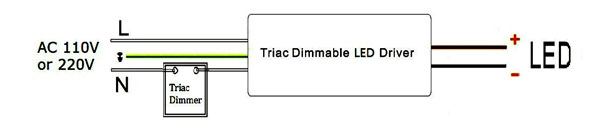

  Simple Connection Diagram


60w dimmable power supply


60w dimmable power supply
