Non-dimmable LED Driver

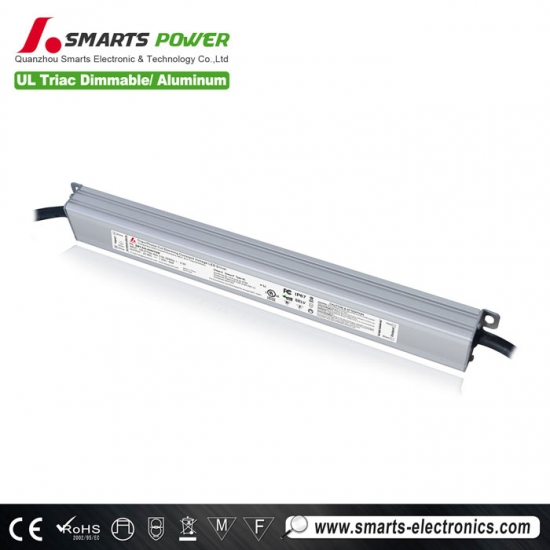

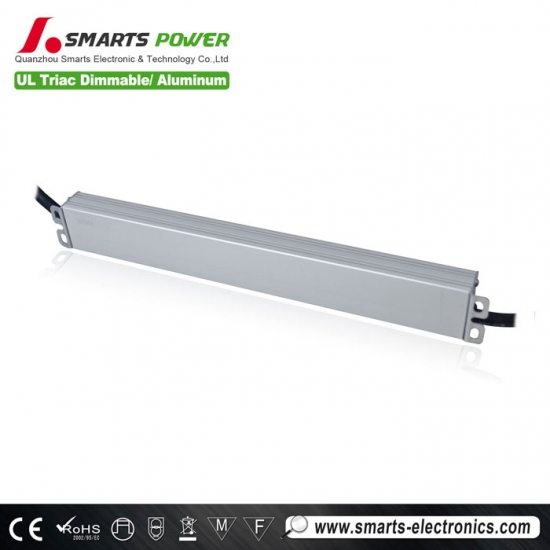

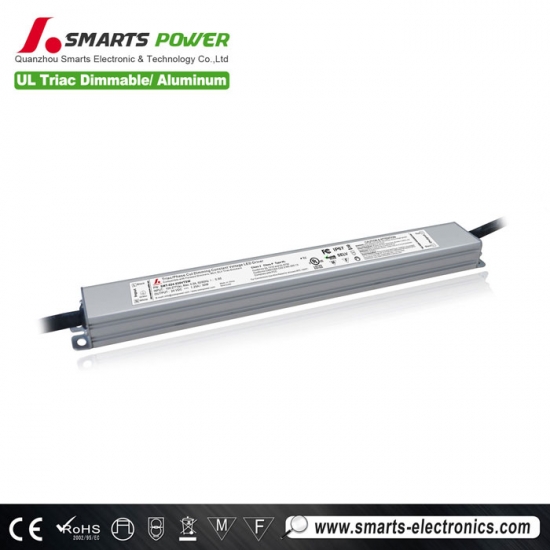

UL led driver dimmable 120v 277v 30 watt

Slim type dimmable led drivers for both commercial and Residential LED lighting application, especially for bathroom lighting, Cabinet lamp and LED mirrors which request ultra thin size dimming led drivers.
  • item no.:

    SMT-024-030VTSW
  • lead time:

    About 7 days for samples
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    T/T, Paypal, Western Union
  • market price:

    $18
  • color:

    White
  • Input Voltage:

    100-305VAC
  • Output Voltage:

    24VDC
  • Output Current:

    1.25A
  • Working Mode:

    constant voltage
  • Certification:

    UL/cUL FCC CE ROHS
  • Warranty:

    7 years
inquiry now
product details


UL led driver dimmable 120v 277v 30 watt





As a leading dimmable led drivers supplier in China, SMARTS has slim type UL led driver dimmable 120v 277v for both commercial and Residential LED lighting application, especially for bathroom lighting, Cabinet lamp and LED mirrors which request ultra thin size dimmable led drivers. The height of this 30w is 19mm max. Avaliable in both 12vdc and 24vdc.



Parameters:


model

SMT-012-030VTSW

SMT-024-030VTSW

Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

2.5Amp

1.25Amp

Rated power

30W

30W

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC

Frequency Range

4763HZ

Power Factor ( Typ.

PF≧0.99/110V ;  PF≧0.98/277V

Full Load EfficiencyTyp.

>79%

>81%

AC CurrentTyp.

0.5A/100VAC  /  0.13A/277VAC

Inrush CurrentTyp.

7A, 50%, 420us

Leakage current

<0.27mA/110VAC; 0.25mA/277VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over Loading

≤120% shut down o/p voltage, re-power on to recover

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Environment

Working TEMP.

-40+60℃

Working Humidity

2090%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz2G 10min./1 cycleperiod for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:2KVAC

Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,,11, ,

Alight industry level

Others

Weight

0.35Kg

Size

260*32*20mm (L*W*H)

packing

50PCS/CTN



Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,

Rated load and 25℃of ambient temperature.

2.  Tolerance:includes set us tolerance,line regulation and load regulation .



Dimension:


led driver 30 watt


Notice:


  1. Pls load 85% when doing the test to check out the dimming effect.
  2. Pls consider double wattage if your LEDs works all day.
  3. Pls consider double wattage if your LEDs are constant voltage MR16, GU10, MR11, etc..



Contact us about your projects for getting professional recommendation.
