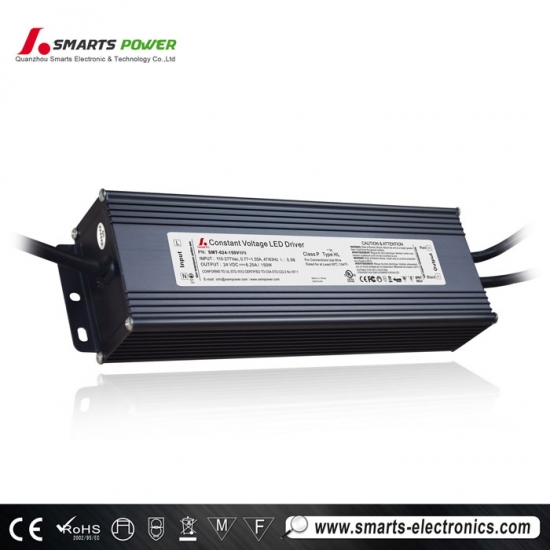

Non-dimmable LED Driver

277vac 24vdc 150w ac to dc outdoor led transformer

This UL recognized outdoor use LED light transformer has an IP67 rating for wet or dry locations.  universal AC input of 100-277VAC makes this transformer useful in both home and industrial applications. Input and output connections are made using 18AWG wire leads.

  • item no.:

    SMT-024-150VWN
  • brand:

    SMARTS
  • Input Voltage:

    100-277vac
  • Output Voltage:

    24VDC
  • Output Current:

    6.25A
  • Working Mode:

    constant voltage
  • Certification:

    CE/UL/ROHS
  • Warranty:

    7 years
inquiry now
product details

277vac 24vdc 150w ac to dc outdoor led transformer


  Features


·Output constant voltage

·Input voltage range 100-277VAC

·Built-in PFC function, PF> 0.98, Efficiency > 86%

·Protections:short circuit/over voltage/over heat

·IP67 design for indoor or outdoor installations

·Cooling by free air convection

·Suitable for LED lighting and moving sign applications

·Compliance to worldwide safety regulations for LED lighting.

·7 years warranty

·UL/cUL listed, Class P, Type HL approval


  Label


277vac 24vdc 150w ac to dc outdoor led transformer

model

SMT-012-150VWN

SMT-024-150VWN

Output

DC Voltage

12V

24V

Rated Current

12.5A

6.25A

Rated Power

150W

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Load Regulation

±2% ±1%

±1%

Input

Voltage Range

110-277VAC

Frequency Range

47-63Hz

Power Factor(Typ.)@ full load

0.99@120VAC ;0.97@230VAC; 0.95@277VAC

0.99@120VAC; 0.96@230VAC; 0.94@277VAC

THD(Typ.)@ full load

<10%@120VAC  <20%@230VAC   <20%@277VAC

Efficiency(Typ.)@ full load

85%@120VAC; 89%@230VAC ;88%@2 77VAC

86%@120VAC; 89%@230VAC; 88%@277VAC

AC Current(Max.)

1.8A@110VAC

1.8A@110VAC

Inrush Current (Typ.)

15A, 50%, 1.55ms@120VAC;55A,50%,220us@230VAC;30A,50%,1.6Ams@277VAC

Leakage current

<0.50mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition is removed

Over Loading

≤120% constant current limiting, auto-recovery

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Environment

Working TEMP.

-40~+60℃ (see below derating curve)

Working Humidity

20~90% RH, non-condensing

Storage TEMP. Humidity

-40~+80℃,10~95%RH

TEMP .coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

UL8750

Withstand voltage

I/P-O/P:1.88KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

Others

Net Weight

1.5Kg

Size

256*78*47mm (L*W*H)

packing

329*279*176mm , 10PCS/ctn

Notes

1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.

2. To extend the driver's using life ,please reduce the loading at lower input voltage.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

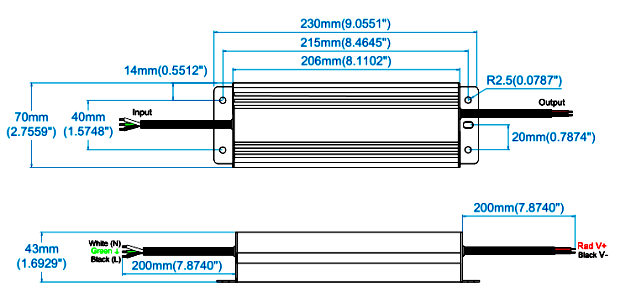

  Mechanical Specification



※Input power cord: AC (L), (N), and earth wire (G)

※Output: 2*16AWG Red to LED Positive side (+) , Black  to LED Negative side (-)

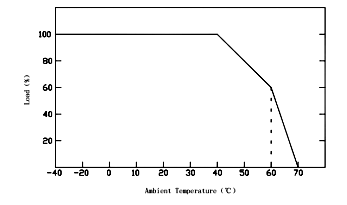

  Derating Curve



outdoor led transformer

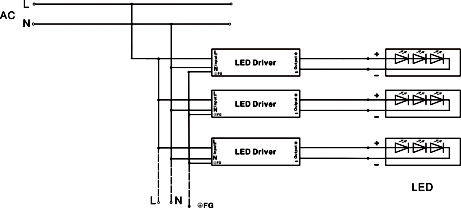

  Connection diagram


led driver 150w 7amp



  Shipping


FedEx/DHL/UPS/TNT/Express for samples;

By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

Customers specifying freight forwarders or negotiable shipping method
