277VAC 150W Constant Voltage LED Driver Manufactuers with UL certification
Our 277VAC Constant Voltage LED Driver compliant with worldwide safety regulations for lighting, it is certified to USA / Canadian Standards and is compliant to the strictest Electrical Safety Codes.
The iP67 150w led driver provides a constant Voltage of 12V DC and feature two distinct ports for input and output: the 120V AC/277v AC input (black wire) has 3 wire connections: one for the live wire (black), one for the neutral wire (white) and one for the ground (green). The 12V DC output (white wire) features 2 connections: one positive (red) and one negative (black).
Specifications
|
model |
SMT-012-150VWN |
SMT-024-150VWN |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Rated current |
12.5A |
6.25A |
|
|
Rated power |
150W |
150W |
|
|
Input |
Voltage Range |
100~277V AC |
|
|
Frequency Range |
47～63HZ |
||
|
THD(Typ.) @full load |
<20% |
||
|
Power Factor ( Typ.） |
0.98@120VAC 0.99@277VAC |
0.98@120VAC 0.99@277VAC |
|
|
Full Load Efficiency(Typ.) |
>87% |
>88% |
|
|
AC Current（Typ.） |
1.8A/110VAC |
||
|
Inrush Current （Typ.） |
15A, 50%, 1.4ms@120VAC;55A,50%,220us@230VAC;30A,50%,1.4Ams@277VAC |
||
|
Leakage current |
﹤0.5mA/110V |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
||
|
Over Loading |
≤120% constant current limiting, auto-recovery |
||
|
Over voltage |
≦140VAC(90~135V) , ≦270VAC(170~265V) |
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750 |
|
|
Withstand voltage |
I/P-O/P: 1.90KVAC |
||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
EMC IMMUNITY |
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547Alight industry level （surge4KV） |
||
|
Others |
Net Weight |
1.5Kg |
|
|
Size |
256*78*47mm (L*W*H) |
||
|
packing |
329*279*176mm , 10PCS/ctn |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
|
Label |
 |
||

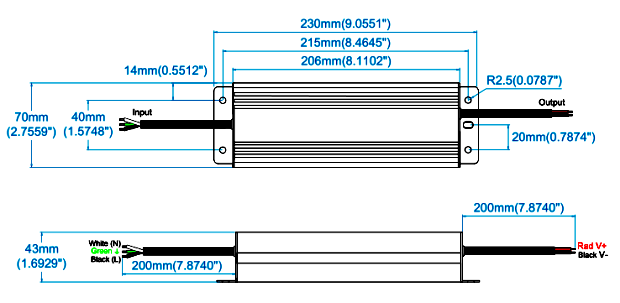

Mechanical Specification

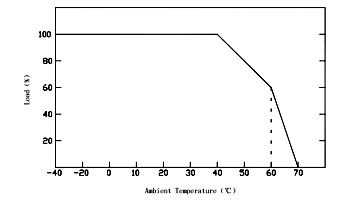

Derating Curve

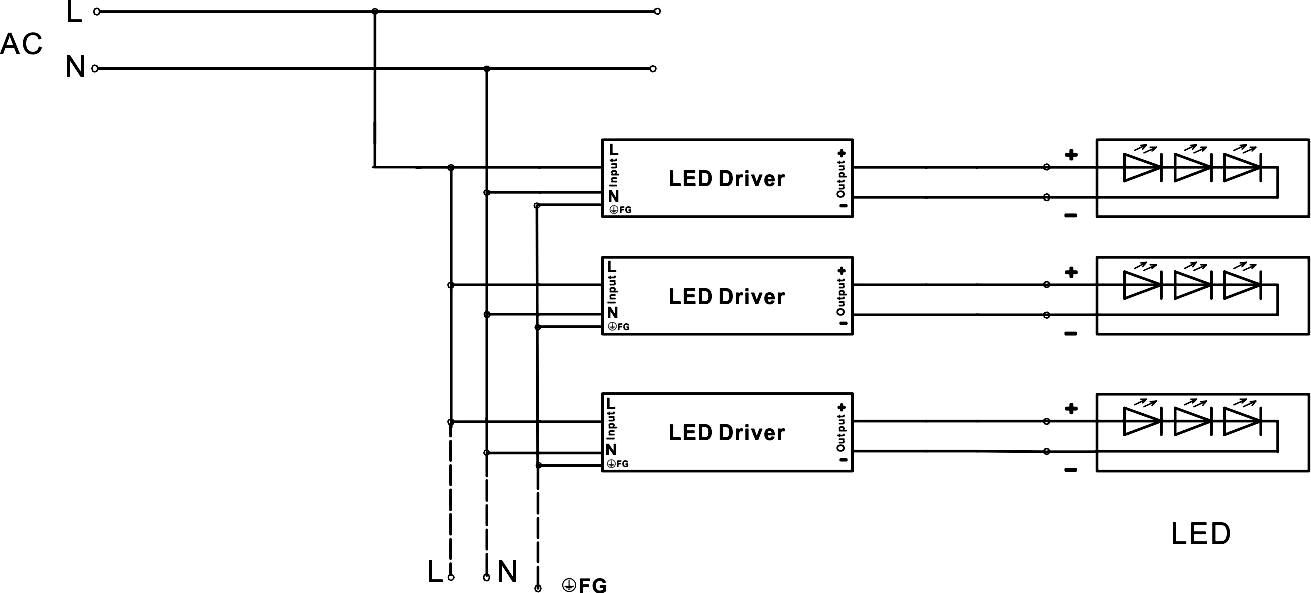

Connection Diagram
