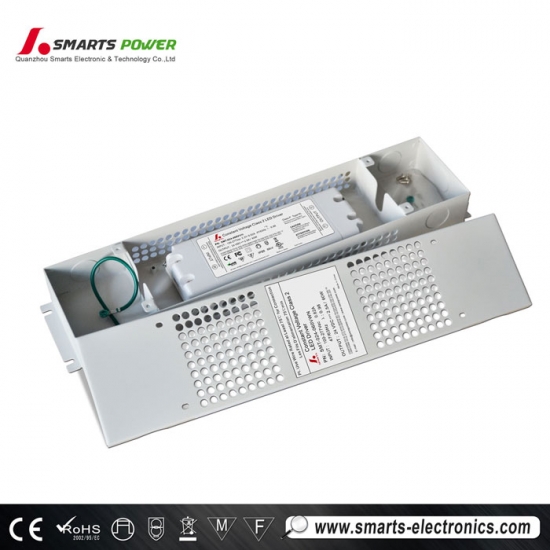

UL listed 24volt 60 Watt led driver
Smarts Electronics are dedicated to various of UL listed LED driver and available to guide you through your 12Volt 24 Volt LED lighting project. And the most important feature are high PF, high efficiency and 7 years warranty with UL listed.

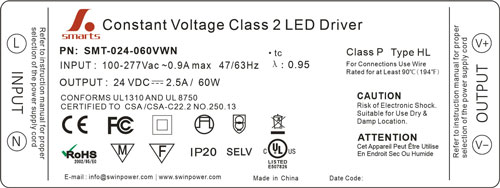

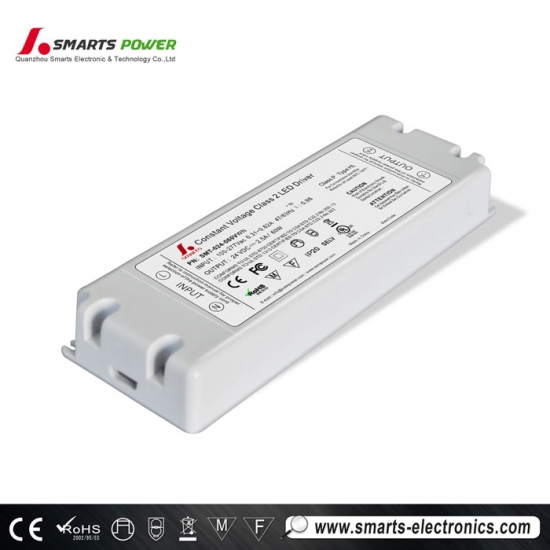

Label
Specification
model
SMT-012-060VWN
SMT-024-060VWN
Output
DC Voltage
12V
24V
Voltage Accuracy
±0.5V
±0.5V
Voltage Regulation
±0.5%
Rated current
5.00A
2.50A
Load Regulation
±1%
Rated power
60W
60W
Input
Voltage Range
100-277V AC
Frequency Range
47～63HZ
Power Factor ( Typ.）
0.98@120VAC 0.95@277VAC
0.99@120VAC 0.95@277VAC
Full Load Efficiency（Typ.）
>86%
>87%
AC Current（Typ.）
0.9A/110VAC
Inrush Current （Typ.）
14A, 50%, 780us@120VAC; 50A,50%,176us@230VAC; 15A,50%,660us@277VAC
Leakage current
<0.50mA
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition removed
Over Loading
≤120% Hiccup mode,recovers automatically after fault condition is removed
Over voltage
≦140VAC(90~135V) , ≦285VAC(170~277V)
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750+UL1310
Withstand voltage
I/P-O/P: 1.98KVAC
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
EMC IMMUNITY
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547 Alight industry level （surge4KV）
Others
Weight
About 0.35Kg
Size
178*61*24mm（L*W*H）
packing
20PCS/CTN（L*W*H）
Notes
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and
25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted
pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
 |
 |
 |
 |

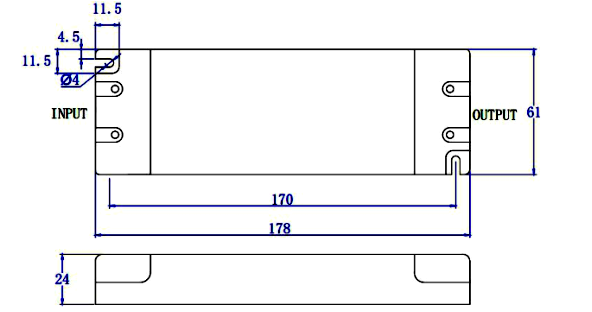

Mechanical Specification

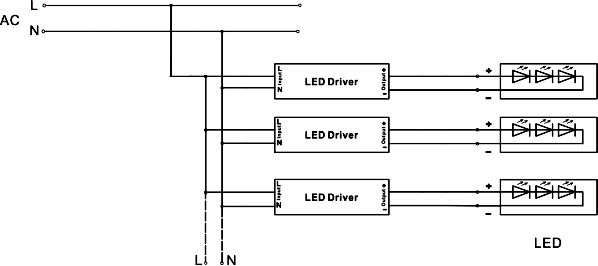

Connecting Diagram
