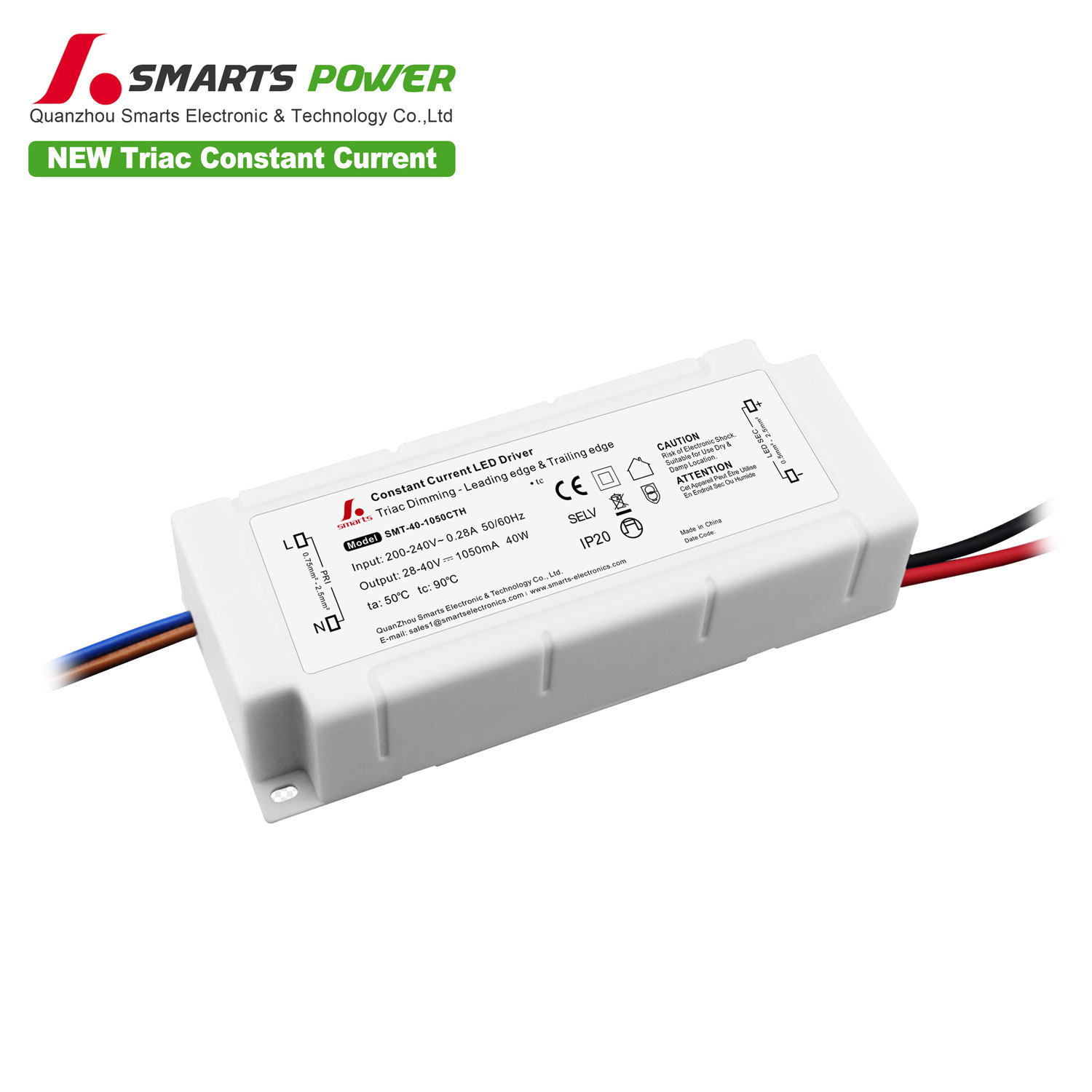

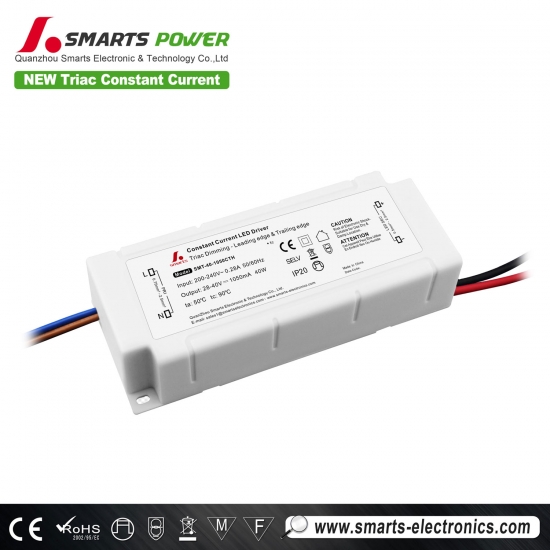

28-40vDC 40w triac dimming constant current led driver 1050ma with CE
No matter your vision, Smarts's products and resources are designed to make the world of electronics more easy.Smarts offers triac dimmable constant current led driver, constant voltage led driver and din rail led driver. We're here to help you start something
Feture:
Model: SMT-40-1050CTH
DC Current :1050mA
Output Voltage Range :28-40V
Output Rated power :40W
Input voltage range:180-265vAC
Frequency Range : 47～63HZ
Current Accuracy: ±5%
Warranty:3 years
CE ROHS approval
PFC>0.90, Efficiency>0.85
Compact size,light weight
100% full-load burn-in test
With short-circuit and overload projection
Analysis problem
Question:
What is the advantages of your 0-10V dimmable led driver?
Answer:
-- the dimming range of other brand 0-10v dimmable led drivers is 1%-100%, but Smarts’ 0-10v dimmable led driver can be 0%. And it do not have the flicker issue.
-- Other brand 0-10v dimmable led driver achieve dimming function though adjust the output current and it has the min load limitation. But Smarts’ 0-10v dimmable led driver is adjust the output voltage to achieve dimming function.
-- What is more, Smarts Electronics’ 0-10v dimmable led driver do not have min load limitation. That is to say, you do not consider the load limitation when you choose our led driver.
-- Our 0-10v dimmable led driver has passed the ETL FCC CE Rohs listed and has 3 years warranty.
Simple Connection Diagram
