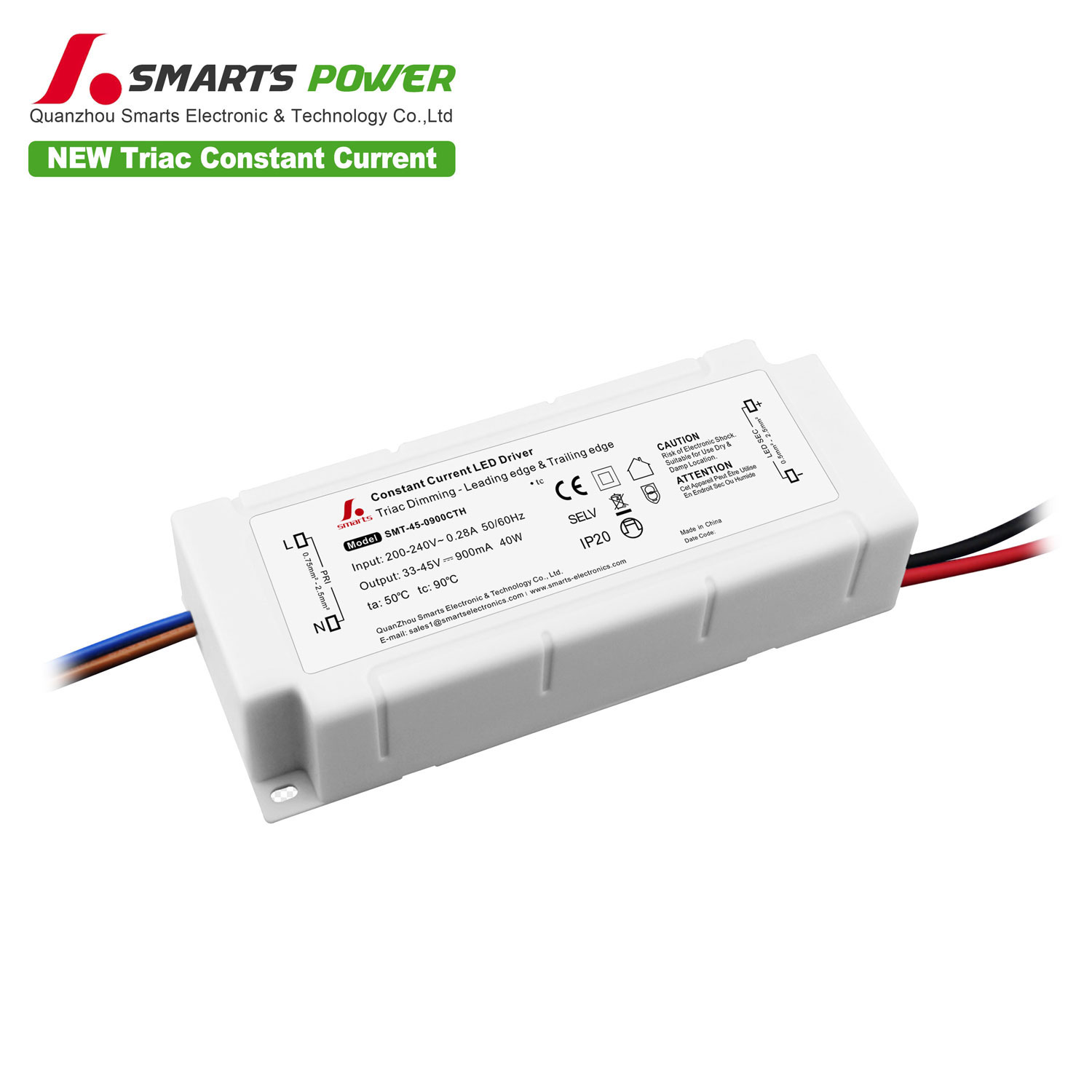

3 years warranty triac dimmable constant current LED driver 900ma 40w
If you are just using the constant current LED lighting driver to power the led lighting, it doesn't matter which one you choose, but the 900ma constant current triac dimmable led driver look very clean for your constant current type LED.
Feture:
Model: SMT-45-0900CTH
DC Current :900mA
Output Voltage Range :33-45V
Output Rated power :40W
Input voltage range:180-265vAC
Frequency Range : 47～63HZ
Current Accuracy: ±5%
Warranty:3 years
CE ROHS approval
PFC>0.90, Efficiency>0.85
Compact size,light weight
100% full-load burn-in test
With short-circuit and overload projection
Analysis problem
Question:
What is class 2 standard?
Answer:
the requirements of class 2 are :1. less than or equal to 5A 2. less than 100w. And should satisfied with these two conditions at the same time.
Simple Connection Diagram
Packing & Shipping:
inner box-white box + outer carton- standard exporting carton for packing
- MOQ: 1 pcs
- Delivery: 7 working days for sample order,12 working days for 500pcs.
- Shipping freight are quoted under your requests.
- Loading port: Xiamen
Certificate:
