Non-dimmable LED Driver

7 years warranty constant current driver led 20w 250ma 350ma 400ma

The 20w led driver is constant current type for UL listed, multiple current type is one of the biggies advantage for this type led driver, come to visit us for the led driver to be matched with PHOTOBIO•T high efficiency LED top light.


  • item no.:

    SMT-M-020CD
  • brand:

    SMARTS
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    3~42vdc
  • Output Current:

    250~700mA
  • Working Mode:

    Constant current
  • Certification:

    CE UL ROHS
  • Warranty:

    7 years
inquiry now
product details

7 years warranty constant current driver led 20w 250ma 350ma 400ma


When you select a more focused led drivers constant current for museums galleries, and showrooms. Sleek, minimal design compliments a wide range of interior applications. All come with 7 year warranty and a team of tech support ready to help with any selection or installation questions.

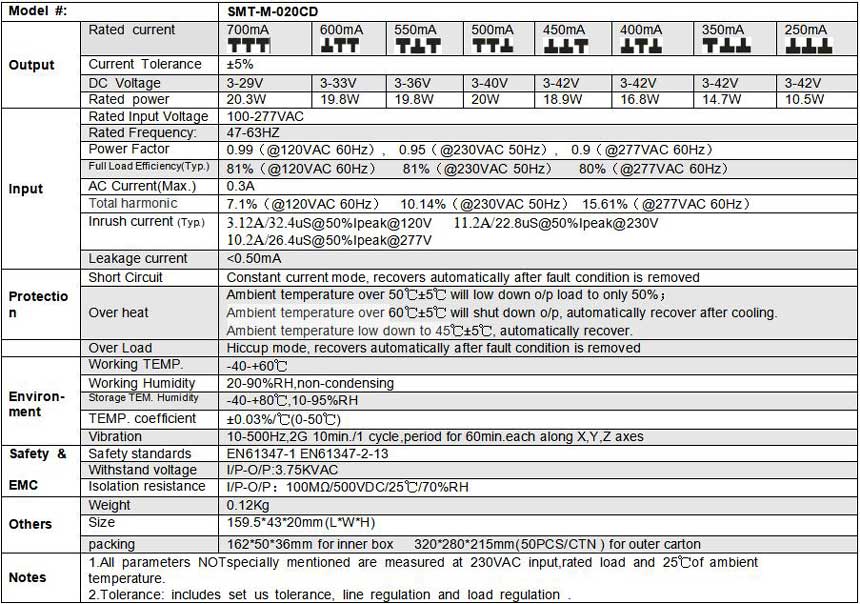

  Specification


Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

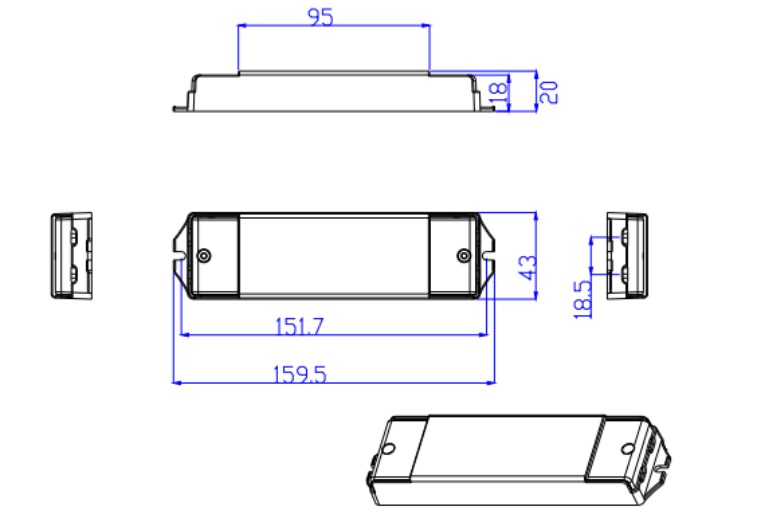

  Mechanical Specification


led driver 20w

 ※Input terminals "Black" and "White" to connect to AC L and N.

 ※Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.

Output terminals DIM (+) to 0/1-10V dimmer signal(+ ),DIM (-) white connect to 0/1-10V dimmer signal (-)

※Please DO NOT connect “DIM-“ to “LED-“, DIM+” to “ LED+” ,or other incorrect connection.




  Dimming operation


led drivers constant current


led power supply 20w


lInput wire 18AWG Black and White to be connected to AC L and N ,Green wire go ground,
lOutput wire 14AWG Red to LED Positive side (+) , Black  to LED Negative side (-).


  Compatible with LED Bath lights


The stone gray accent provides an industrial-like touch, enhancing a modern motif with our constant current led driver. Exposed candelabras nestle inside two clear seeded glass shades, which can be installed pointing up or down.

constant current led driver
