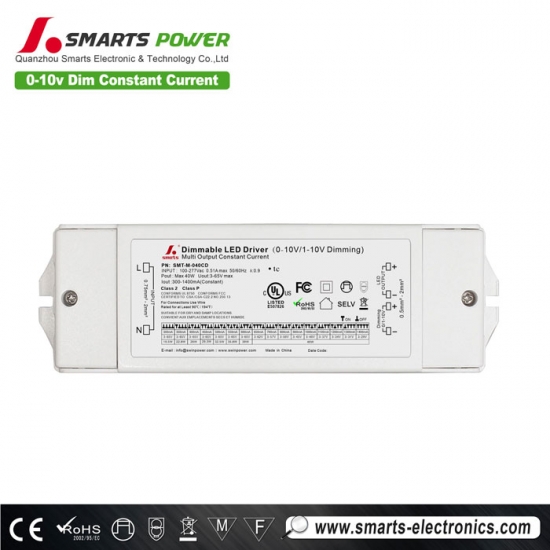

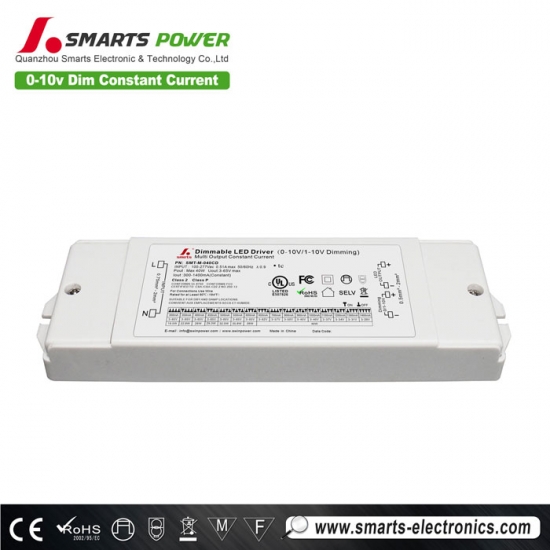

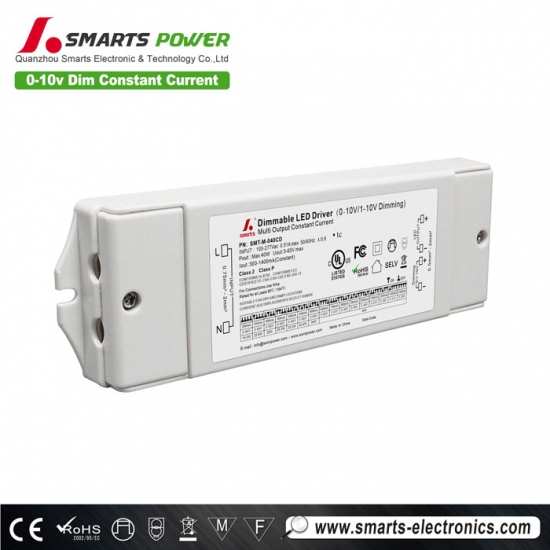

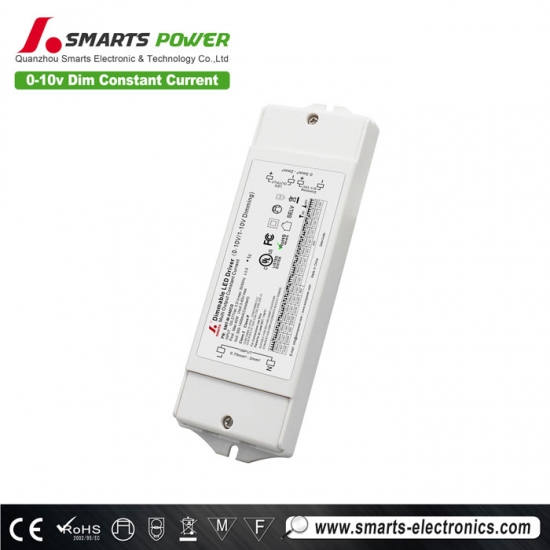

PWM dimmable constant current led driver 700ma led power supply 40w 1000ma
The 0-10V dimmable led driver realizes smooth dimming without flicker after it is connected and matched with the led lamp. The design of multi-current dialing allows users to avoid the trouble of purchasing power supplies with different output currents.

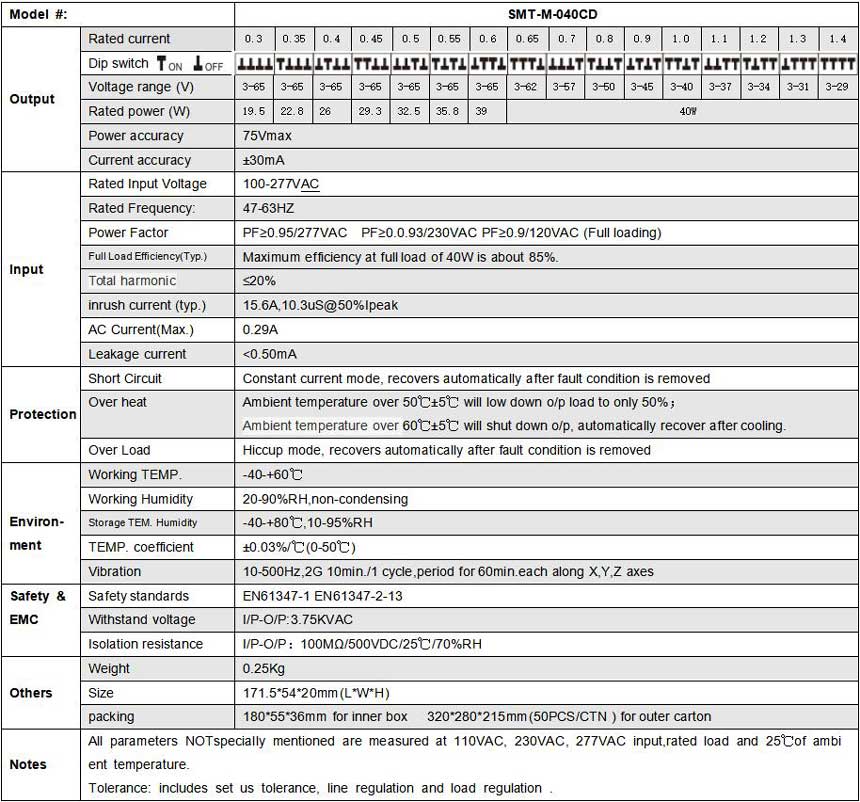

Specification
 |
 |
 |
 |

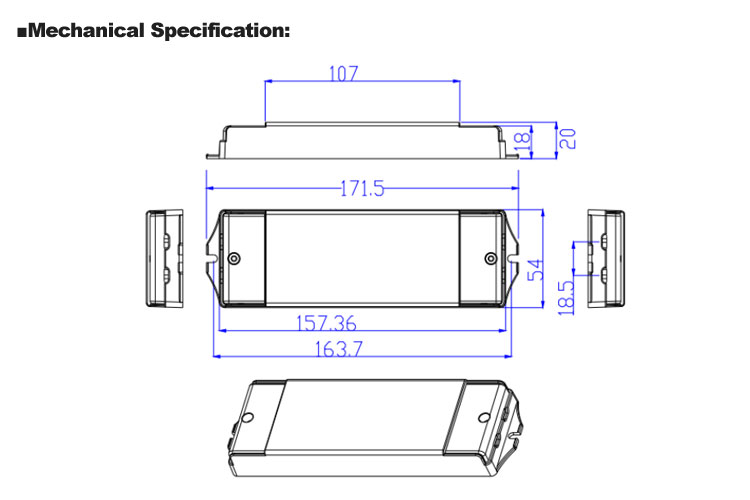

Mechanical Specification
※Input terminals "Black" and "White" to connect to AC L and N.
※Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.
※Output terminals DIM (+) to 0/1-10V dimmer signal(+ ),DIM (-) white connect to 0/1-10V dimmer signal (-)
※Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.
Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged
Dimming operation
Related Products
|

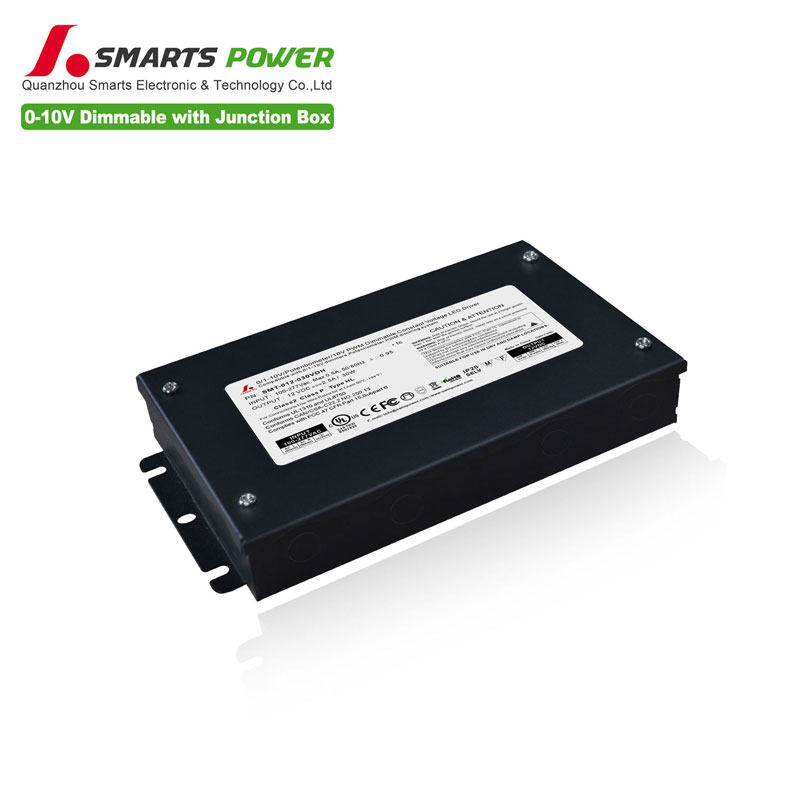

Mode：SMT-012-030VDH intput voltage：100-277V AC
