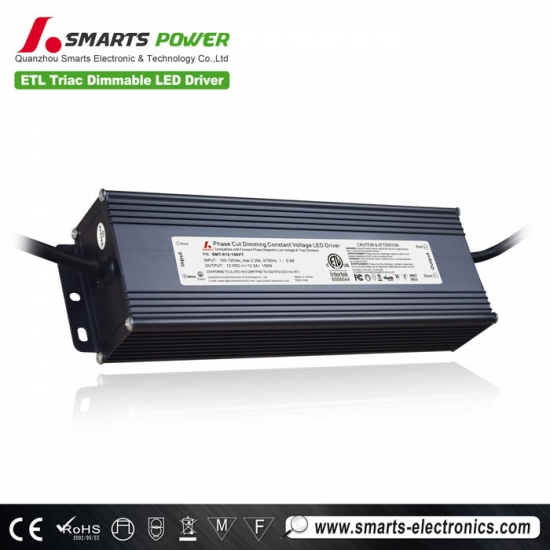

12V 24V Universal Dimmable LED Driver Transformer 150W
For both the high and low voltage load, this 24v 150w dimmable Dimmable LED Driver comes complete with distinct junction boxes . What is more, the Dimmable LED Driver includes two integrated mounting brackets, making it easy to securely screw it in place. It have got ETL FCCCE Rohs listed, it also features auto reset protection from short circuits, over–voltage and over-temperature, making it one of the safest LED Driver on the market.
The Constant Voltage Dimmable LED Driver is designed to work with any recent standard wall dimmer (Triac or Low voltage Magnetic) and allows you to smoothly dim your LED Strips from 100% to 20% without any noise or flickering. Note that this revolutionary LED Driver does not require a minimal load in order to offer you optimal dimming performances.
Model
SMT-012-150VT
SMT-024-150VT
SMT-036-150VT
SMT--048-150VT
Output
DC Voltage
12V
24V
36V
48V
Voltage Tolerance
±0.5V
Rated current
12.5A
6.25A
4.16A
3.1A
Rated power
150W
Input
Voltage Range
100-135VAC / 170～265VAC
Frequency Range
47～63HZ
Power Factor ( Typ.）
>0.75/110VAC, >0.8/220V
Full Load
Efficiency（Typ.）
>85%
>86%
>86%
>87%
AC Current（Typ.）
1.34A
1.32A
1.32A
1.31A
Leakage current
﹤0.6mA/110VAC, ﹤0.70mA/220VAC
Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition is removed.
Over load
≤120%
Over Current
≤1.4*I out
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz 2G 10min./1 cycle，period for 60min.each along X,Y,Zaxes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13
Withstand voltage
I/P-O/P:3.75KVAC
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
Compliance to EN55015,EN61000-3-2 (≧50%load)
EMC IMMUNITY
EN61000-4-2,3,4,5,6,11（Surge about 4KV）
Others
Weight
1.8Kg
Size
256*78*47mm （L*W*H）
packing
440*295*145mm , 8 pcs/ctn
Notes
1. All parameters NOT specially mentioned are measured at 110VAC, 220VAC input , rated load and 25℃of ambient temperature.
2..Tolerance:includes set us tolerance,line regulation and load regulation .

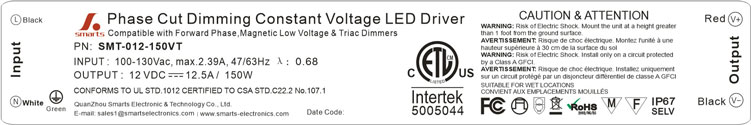

Label
Dimmable LED Driver 150W - 12V
Input: 100 -120V AC
Output: 12V DC 12.5A max (150W)
Certification: cETL / ETL
Dimensions: 39cm(41cm with install brackets)x 8.7 cm x 6.0cm
Weight: 2.3 kg
