best 12v dc led power supply IP67 waterproof for led lights

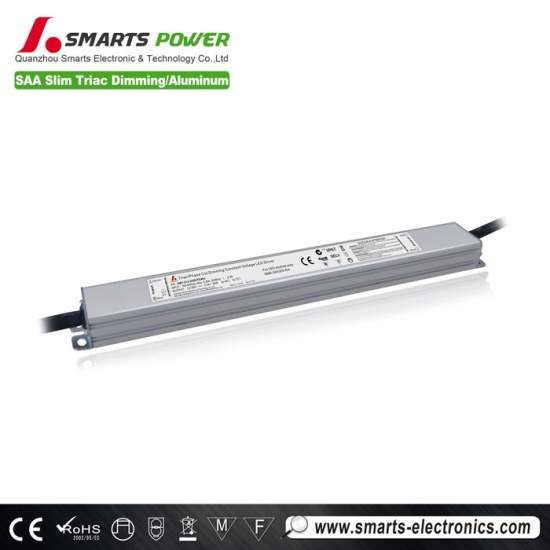

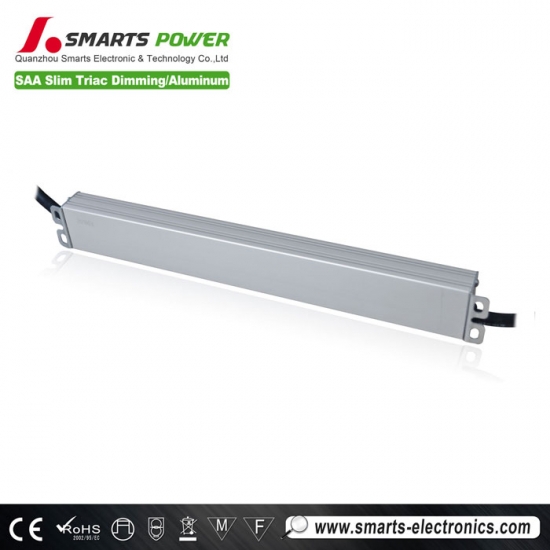

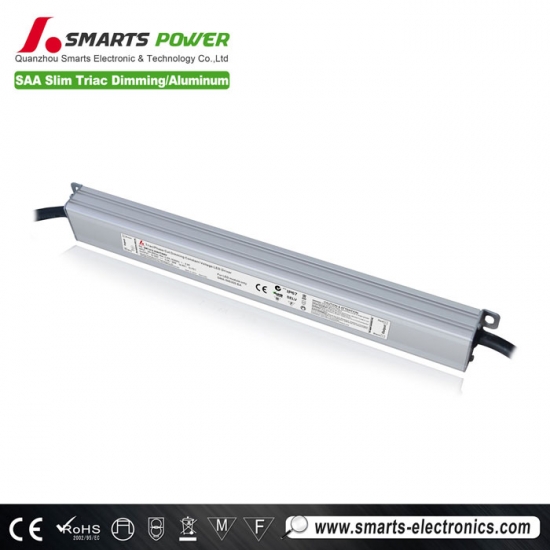

This Class 2 rated dimmable LED driver is SAA C-TICK RCM listed led driver power supply, slim type and is designed to operate with standard MLV/ELV TRIAC (leading edge) dimmer switches.
Features for dimmable led transformer
·Output constant voltage
·Input voltage range 180-265VAC
·CE, ROHS approval
·Built-in PFC function / E fficiency > 80% / PF> 0.99
·Dimming range: 0~100% / load: 9~100%
·Protections:short circuit/over voltage/over heat
·IP67 design for indoor dry or damp environment installations
·Cooling by free air convection
·Work with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers
·PWM output, does not change the color index
·Full protection aluminum housing, for dry, damp, wet location
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·7 years warranty
Specifications for waterproof LED transformer
|
model |
SMT-012-036VTSWH |
SMT-024-036VTSWH |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
Voltage Accuracy |
±5% |
±5% |
|
|
Rated current |
3.0Amp |
1.5Amp |
|
|
Rated power |
36W |
36W (class 2) |
|
|
Voltage Regulation |
±0.5% |
||
|
Load Regulation |
±1% ±1% |
||
|
Input |
Voltage Range |
180-265 VAC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor ( Typ.） |
PF≧0.99/180V ; PF≧0.98/265V |
||
|
Full Load Efficiency（Typ.） |
>83% |
>84% |
|
|
AC Current（Typ.） |
1.10A/180VAC / 0.43A/265VAC |
||
|
Inrush Current（Typ.） |
9.2A, 50%, 1ms@180VAC / 26.4A, 50%, 780us@265VAC |
||
|
Leakage current |
<0.50mA/180VAC; ﹤0.13mA/265VAC |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over Loading |
≤120% shut down o/p voltage, re-power on to recover |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
SAA C-TICK RCM | |
|
Withstand voltage |
I/P-O/P: 2KVAC |
||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,,11, , Alight industry level |
||
|
Others |
Weight |
0.5Kg |
|
|
Size |
330*32*23mm (L*W*H) |
||
|
packing |
30PCS/CTN
|
||
|
Notes |
1. what is the HS code for this Power supply?
Answer: HS code is 8504401400.
|
||
| Label |
 |
||
 |
 |
 |
 |
 |
|
Mechanical Specification for waterproof LED transformer
Applications for dimmable led transformer 12v 24v
LED Mirror projects
Strip/Tape Lighting
Tube Lighting
Panels
Fixtures
Cove Lighting
Bar Lighting
Kick Lighting
Under Cabinet Lighting
