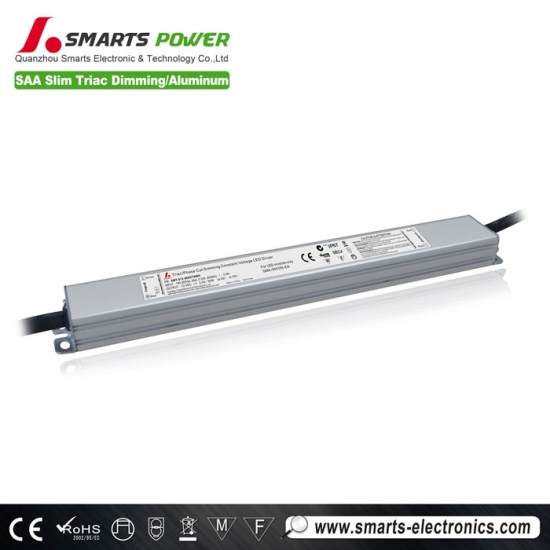

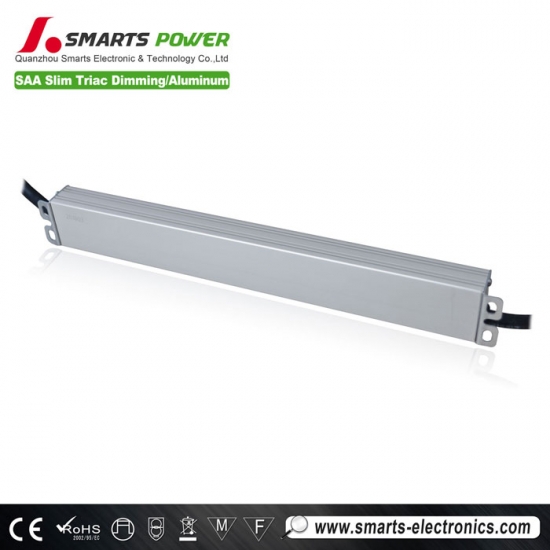

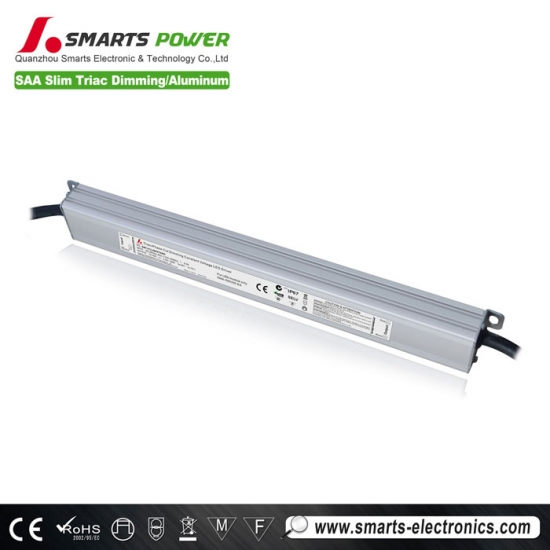

Non-dimmable LED Driver

Class 2 12v 5a 60 Watt Power Supply Waterproof For Led Lighting Led Strip Power Supply

The SMT-012-060VTSW is 12vdc 5.0amp 60w slim type triac dimmable led power supply.The size is 300*32*20mm and could save space,we provide 7 years warranty.
  • item no.:

    SMT-012-060VTSWH
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    xiamen,shenzhen
  • payment:

    T/T,Paypal,westen union
  • color:

    black
  • Input Voltage:

    180-265VAC
  • Output Voltage:

    12vdc
  • Output Current:

    5.0amp
  • Working Mode:

    constant voltage
  • Certification:

    SAA,Class2 ,CE,ROHS,
  • Warranty:

    7 years warranty
inquiry now
product details
Class 2 12v 5a 60 Watt Power Supply Waterproof For Led Lighting Led Strip Power Supply



  Product Description


Smarts Electronics' SMT-012-060VTSWH  12v 5a led power supply is the perfect choice for use in Schools, Hospitals, and Shopping Malls or for any commercial application This unit can be operated with input current ranging from 180-265v power supply waterproof.This power supply features an IP67 rated design, making it suitable for indoor and outdoor use and includes integral short circuit and overload protection that will shut down the unit in case of faults and overloads to protect the unit and connected equipment from damage.



  Features


·Output constant voltage

·Input voltage range 180-265VAC

·CE SAA listed, ROHS,Class 2 approval

·Built-in PFC function / Efficiency > 83% / PF> 0.95

·Dimming range: 0~100% / load:10~100%

·Protections:short circuit/over voltage/over heat

·IP67 design for indoor dry or damp environment installations

·Cooling by free air convection

·Work with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers

·PWM output, does not change the color index

·Full protection aluminum housing, for dry, damp, wet location

·Strong compatibility, flicker-free dimming

·Suitable for LED lighting and moving sign applications

·Compliance to worldwide safety regulations for lighting

·7 years warranty



  Specification


model

SMT-012-060VTSWH

SMT-024-060VTSWH

Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

5.0Amp

2.5Amp

Rated power

60W

60W

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

180-265 VAC

Frequency Range

47~63HZ

Power Factor ( Typ.)

PF≥0.95/180V ;  PF≥0.98/265V

Full Load Efficiency(Typ.)

>83%

>84%

AC Current(Typ.)

0.5A/180VAC  /  0.13A/265VAC

Inrush Current(Typ.)

6.85A, 50%, 640us & 16.8A, 50%, 640us@2770VAC

Leakage current

<0.74mA/180VAC; <0.25mA/265VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over Loading

≤120% shut down o/p voltage, re-power on to recover

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

SAA,CE,ROHS

Withstand voltage

I/P-O/P: 2KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,,11, ,

Alight industry level

Others

Weight

0.45Kg

Size

300*32*20mm (L*W*H)

packing

50PCS/CTN



Notes


Can we make our company information on the label?

Answer:

--As per the policy of ETL, we can not make changes on the labels at liberty. If we make changes as your requirement , then our company will be punished if the ETL department discover it . Really sorry for that and caused you so much trouble..

--If making changes on the labels are necessary for your company, I suggest you multi-list of our ETL certification , then we can help you design the new label as requested.What is your opinion?


  Label   Class 2 12v 5a 60 Watt Power Supply Waterproof For Led Lighting Led Strip Power Supply


Triac dimmable led driver
Dali dimmable led driver
0-10V led power supply
277v led driver

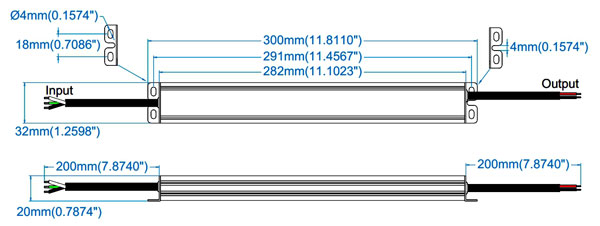

  Mechanical Specification


12v 5a led power supply



※Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,

※Output: Red isDIM+,Black isDIM-


  Dimming Operation


※Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.

※Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..

※Please try to use dimmers with power at least 1.5 times as the output power of the driver.


12v 5a led power supply
