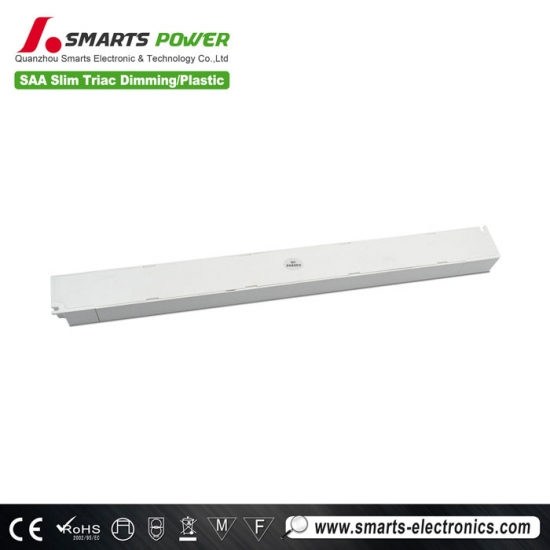

SAA class 2 listed slim type triac dimmable mini led power supply

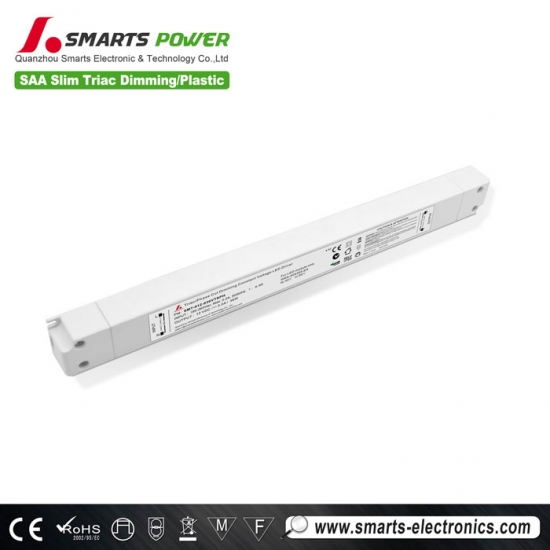

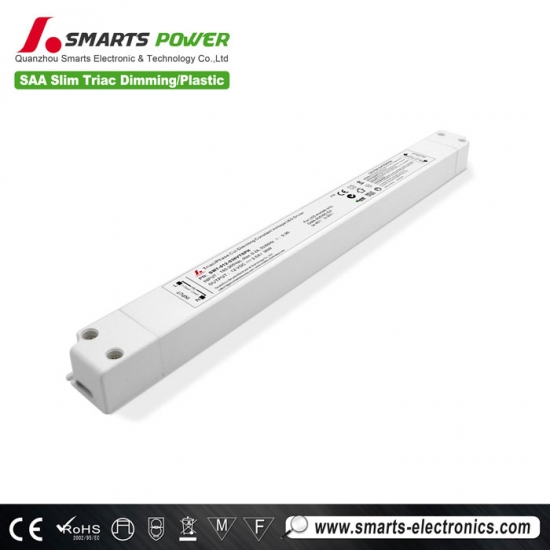

SMT-012-036VTSPH is a 12v 36w dimmable led driver. A full range input of 180-265VAC makes this power supply suitable for both residential and commercial applications. It is available work with leading edge and trailing edge triac dimmers.
Features
·Output constant voltage type
·Input voltage range 180-65VAC
SAA,C-TICK, RCM approval
·Built-in PFC function / Efficiency > 82% / PF> 0.99
·Dimming range: 0~100% / load: 5~100%
·Protections:short circuit/over voltage/over heat
·IP20 design for indoor dry or damp environment installations
·Cooling by free air convection
·Work with leading edge and trailing edge triac dimmers available
·PWM output, does not change the color index
·Full protection aluminum housing, for dry, damp, wet location
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·7 years warranty
Specification
|
model |
SMT-012-036VTSPH |
SMT-024-036VTSPH |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
Voltage Accuracy |
±5% |
±5% |
|
|
Rated current |
3.0Amp |
1.5Amp |
|
|
Rated power |
36W |
36W |
|
|
Voltage Regulation |
±0.5% |
||
|
Load Regulation |
±1% ±1% |
||
|
Input |
Voltage Range |
180-265 VAC |
|
|
Frequency Range |
47~63HZ |
||
|
Power Factor ( Typ.) |
PF≧0.99/180V ; PF≧0.98/265V |
||
|
Full Load Efficiency(Typ.) |
>83% |
>84% |
|
|
AC Current(Typ.) |
0.5A/180VAC / 0.23A/265VAC |
||
|
Inrush Current(Typ.) |
7A, 50%, 420us |
||
|
Leakage current |
<0.27mA/180VAC; ﹤0.25mA/265VAC |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over Loading |
≤120% shut down o/p voltage, re-power on to recover |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
||
|
Environment |
Working TEMP. |
-40~+60℃ |
|
|
Working Humidity |
20~90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
||
|
TEMP.coefficient |
±0.03%/℃(0~50℃) |
||
|
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
SAA,C-TICK, RCM listed |
|
|
Withstand voltage |
I/P-O/P:2KVAC |
||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,,11, , Alight industry level |
||
|
Others |
Weight |
0.35Kg |
|
|
Size |
260*32*20mm (L*W*H) |
||
|
packing |
50PCS/CTN
|
||
|
Notes |
1. What is class 2 standard?
Answer: the requirements of class 2 are :1. less than or equal to 5A 2. less than 100w. And should satisfied with these two conditions at the same time.
|
||
| Label |
 |
||
 |
 |
 |
 |
 |
|

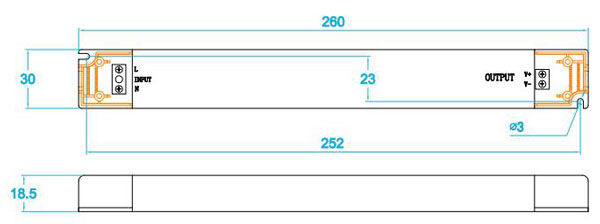

Mechanical Specification
