Non-dimmable LED Driver

CE ROHS listed simple dimmer switch for sale

When the simple dimmer switch power off, long touch ON/OFF KEY to open or shut the buzzer warning tone.
  • item no.:

    SMT50-D2
  • brand:

    SMARTS
  • Input Voltage:

    100-265VAC
  • Output Voltage:

    0-10V
  • Output Current:

    50mA
  • Working Mode:

    0-10V analog signal
  • Certification:

    CE ROHS
inquiry now
product details

CE ROHS listed simple dimmer switch for sale

0-10 V is one of the earliest and simplest dimmer switch signaling systems; simply put, the control signal is a DC voltage that varies between zero and ten volts. The controlled lighting should scale its output so that at 10 V, the controlled light should be at 100% of its potential output, and at 0 V it should at the lowest possible dimming level.


  Technical Parameters


Supply voltage AC100-265V

Product size: L86*W86*H38mm

Frequency 50/60Hz

Working temperature: -20℃-50℃

Output current: 50mA

Static power: <1.2w

Gross weight :228g

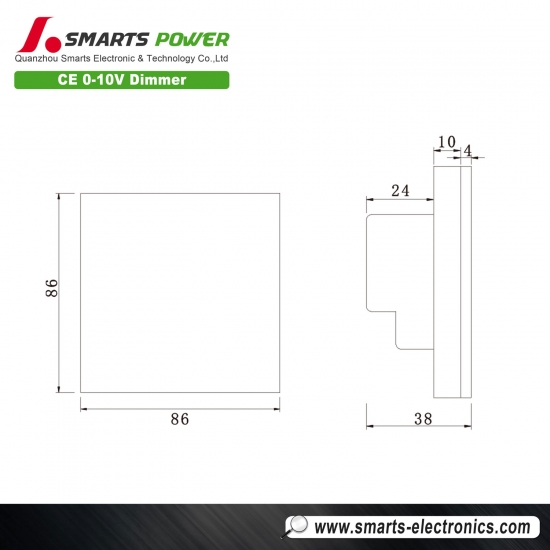

  Product size

simple dimmer switch

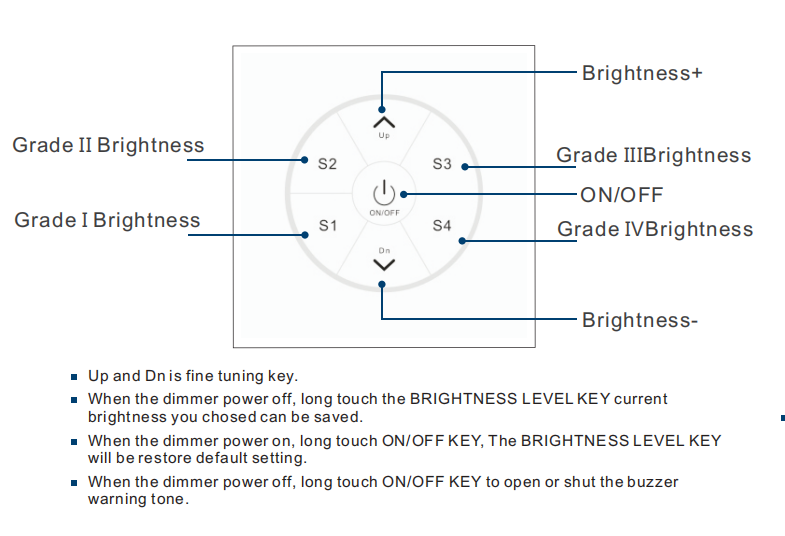

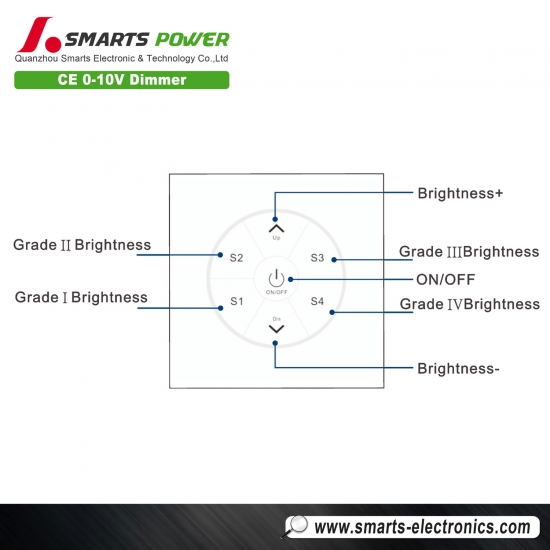

  Funtion Description

1 10v dimmer

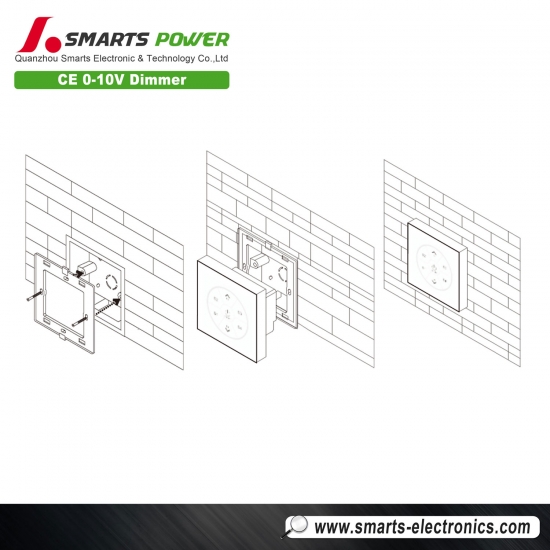

  Installation Instruction

small dimmer switch for lamp

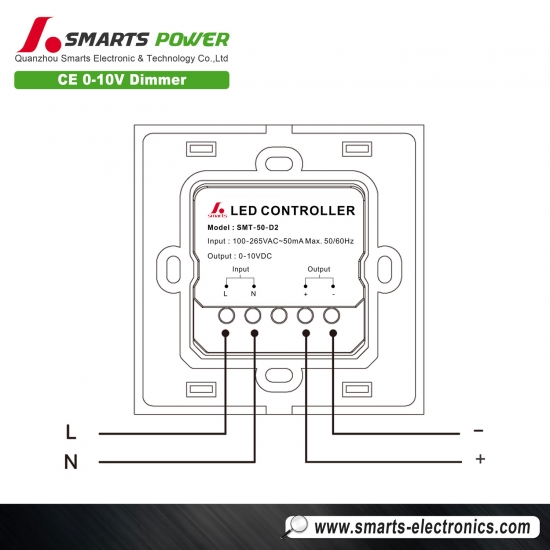

  Interface Introduction

led light wall switch
