CE ROHS listed small 0-10V Rotary Dimmer
The first and simplest electronic lighting control signaling system, low voltage 0-10V dimmers use a low voltage 0-10V DC signal connected to each LED power supply or Fluorescent ballast. At 0 Volts the device will dim to the minimum light level allowed by the dimming driver, and at 10 Volts the device will be operating at 100%.
Supply voltage AC100-265V
Product size: L86*W86*H51mm
Working temperature: -20℃-40℃
Output current: 50mA
Output wattage: 0.5w
Net weight :190g
Technical Parameters

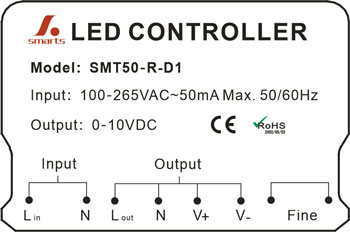

Label

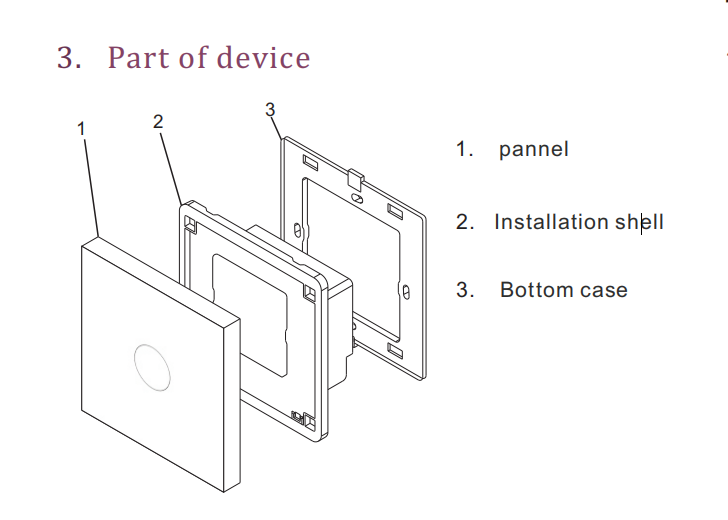

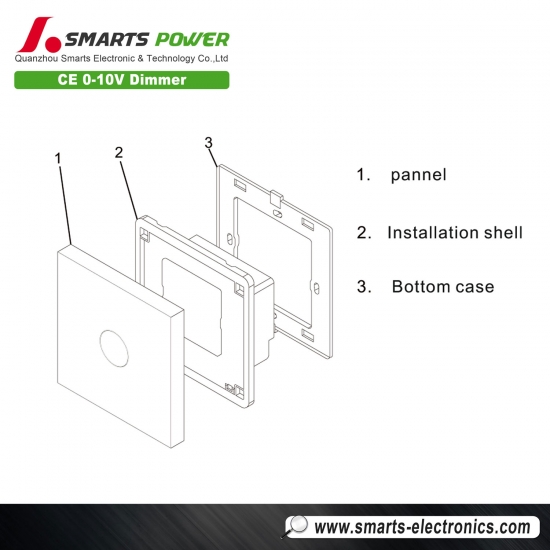

Part of device
Funtion Description
1.this is AC dimmer,not only can control dimmer output 0-10V signal but also control 0-10V led driver L/N, and there is no standby power even when dimmer turn off.
2.this dimmer provide high precision outpout 0-10V signal, with its over current protection and short circuit protection so that the dimmer can work more stable and reliable.
Our Services
What Service we can supply??
1.All inquiries will be replied within 24 hours
2.Professional manufacturer,welcom to visit our website
3.OEM/ODM avaliable:
A.Print logo on our product;
B. Customized specification;
4.After Sales-Service:
A. All products will have 100% burn-in test and strictly quality test before shipping;
B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production;
5.High efficiency,long life span,reasonable&competetative price,fast lead time;
6.We have our engineer team, if you have any question about your LED applications, let us know freely.
FAQ
1. What have you tested for compliance for the bus power ?
Answer: Our DALI dimmable led driver conform to DALI protocol IEC62386.
We have made our DALI dimmable led drivers to be test with the LUTRON DALI system, which is no need DALI bus power. Hence, we didn't buy the DALI bus power before.
So, we're sorry, we didn't have a list for those DALI bus power.
2. About class P:
I just spoke with our UL engineer. If your drivers are on the UL Class P program we can use them without testing if they are comparable in specs to what we are using now.
If they are not on the UL Class P program but are UL Recognized, then we have to have them tested in our fixture.
If they are not UL Recognized then we have to have the driver tested and certified and then also the fixture with them in it.
Otherwise we cannot mark our fixtures as UL Compliant if they include the drivers. There is a small residential-based retail market where it is less critical to have UL certification to our fixtures but it is not the greater share of the marketplace (for us).
3. Is this a magnetic iron core driver or electronic driver?
Answer: The working mode of our dimmable led driver is electronic driver, which is different from the brands "Magnetitude" in North American market.
4. I have a few questions, i tested the magnitude magnetic driver and it runs the LEDs to hot. Does the one you offer run the LEDs like a switching power source and is dimable with a triac dimmer?
Answer: Yes, all our led drivers run the leds like switching power source and this led driver you've mentioned is triac dimmable type, it should be dimmable with a triac dimmer.
