Non-dimmable LED Driver

cheap dark brown light switches with dali dimmer

SMT-DB-01 is 100-265vac dali dimmer switch use for led lighting;dimmer light switch;modern light switch dimmer
  • item no.:

    SMT-DB-01
  • lead time:

    about 7 days after payment
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    xiamen,shenzhen
  • payment:

    T/T,Paypal,westen union
  • color:

    white
  • Input Voltage:

    100-265vac
  • Output Voltage:

    15vdc
  • Certification:

    ce rohs
  • Warranty:

    3 years warranty
inquiry now
product details


                        cheap dark brown light switches with dali dimmer


The SMT-DB-01 is cheap dimmer light switches with dali dimmer which could dark brown and bright led lighting. it's easy to operate with widely application。


Features

Short circuit protection

AC input :100-265VAC 50/60Hz

Cooling by free air convention

Full protection plastic case, IP20 for indoor installation

Comply with safety Low voltage standards


Specification

Input Voltage Range:100-265VAC 50/60Hz

Frequency Range:50/60HZ

Input current:<0.5mA/230Vac

Rated Current:200mA

Output Voltage:15Vdc

Max.Power:3W

Output Voltage at Without Load:≤17.5Vdc

Working temperature:-30 - -55℃

Dimensions:87.4*36.4*60mm(L*W*H)

Package Size:106*54*72mm(L*W*H)

Net.Weight:115g±10g

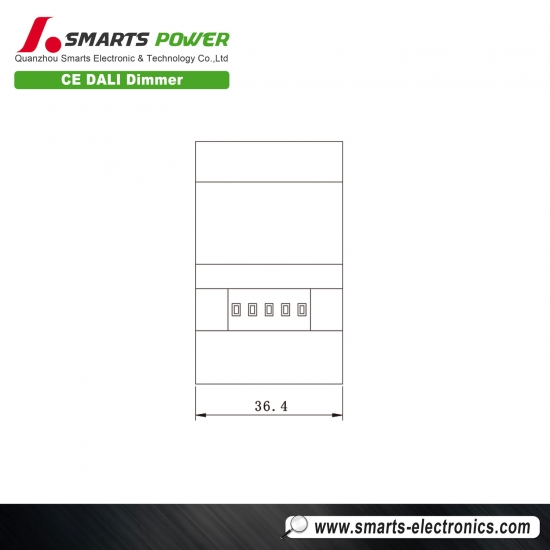

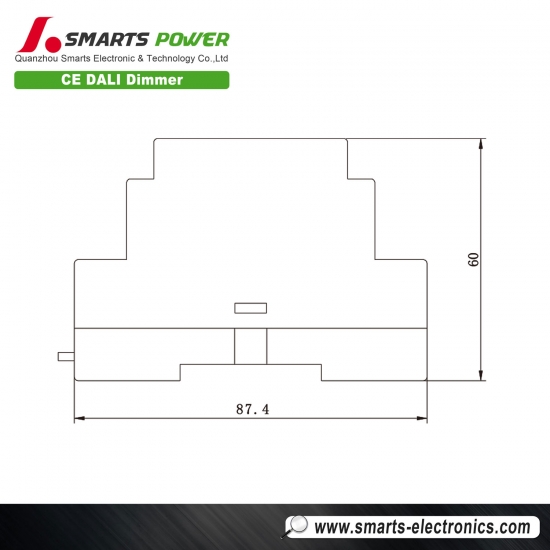

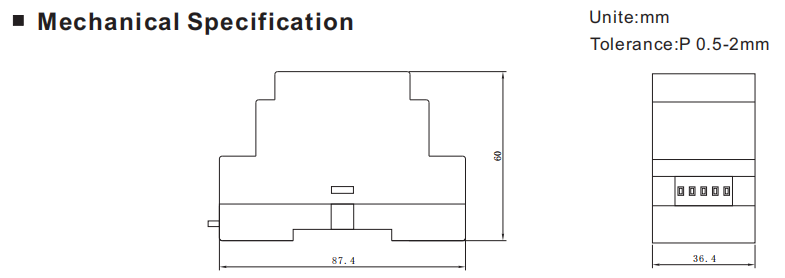

Mechanical Specification
dimmer switch wiring

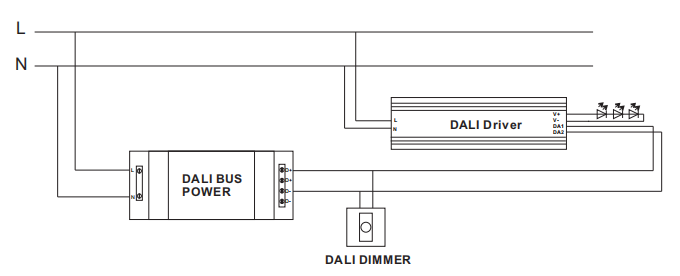

Connecting Diagram
dimmer switch wiring

Question:

Can we make our company information on the label?

Answer:

--As per the policy of ETL/UL,  we can not make changes on the labels at liberty. If we make changes as your requirement , then our company will be punished if the ETL/UL department discover it . Really sorry for that and caused you so much trouble..
--If making changes on the labels are necessary for your company, I suggest you multi-list of our ETL/UL certification , then we can help you design the new label as requested.What is your opinion?
