touch dali dimmer with CE ROHS listed

You can manually turn on or off your strip or adjust the light intensity by turning the knob. it's could work with our dali dimmable led driver.

item no.:
SMT-R-M1
lead time:
about 7 days after payment
product orgin:
China
brand:
SMARTS
shipping port:
xiamen,shenzhen
payment:
T/T,Paypal,westen union
color:
white
Input Voltage:
100-265vac
Working Mode:
DALI dimmer
Certification:
ce,rohs
Warranty:
2 years warranty

inquiry now

product details

touch dali dimmer with CE ROHS listed

Smarts Electronics SMT-R-M1 is lamp dimmer switch with short press control rotary to turn on/off the controller,

Provided by DALI Bus.

1.Technical Parameters

Power Supply:Provided by DALI Bus

Output Signal : DALI Signal

Static power: <0.5W

Current Consumption: 25mA±10%

Output channel: 1CH

Product dimension: L86*W86*H51MM(L.W.H)

Packing size: L116*W110*H56.5MM(L.W.H)

Working temperature: -20℃-60℃

Net weight: 190g

Gross weight: 248g

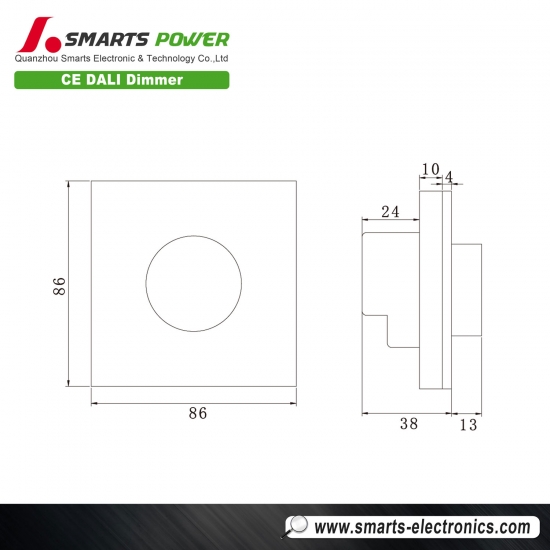

2.Product Size

lamp dimmer switch

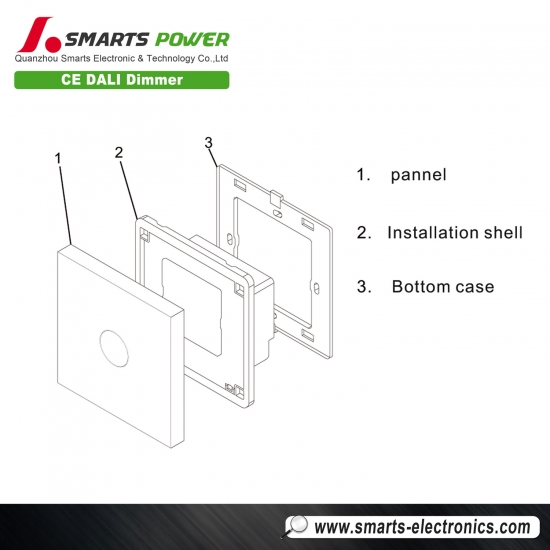

3.Funtion Description

lamp dimmer switch

4.Typical Application:

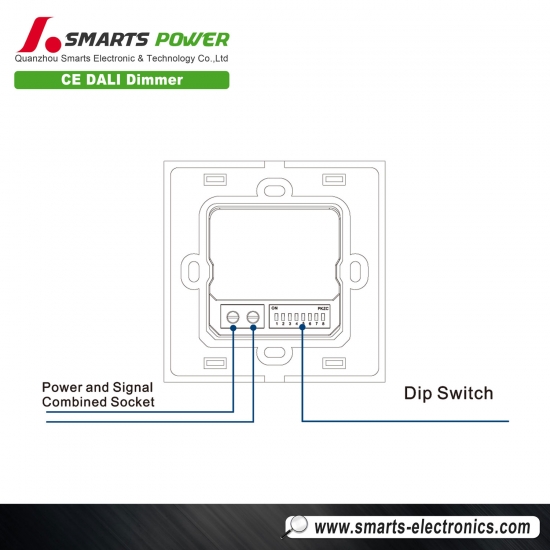

5.Interface Introduction

touch dimmer

6.DIP Switch Operation

wall light dimmer switch

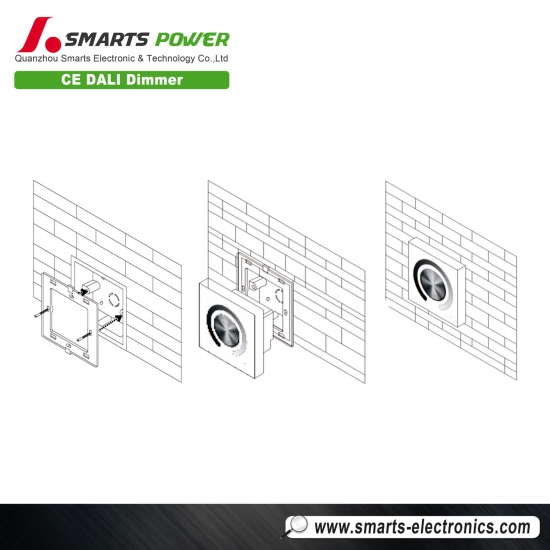

7.Installation Instruction:

Question:

1. Can we make our company information on the label?

Answer:

-As per the policy of ETL/UL, we can not make changes on the labels at liberty. If we make changes as your requirement , then our company will be punished if the ETL/UL department discover it . Really sorry for that and caused you so much trouble..

--If making changes on the labels are necessary for your company, I suggest you multi-list of our ETL/UL certification , then we can help you design the new label as requested.What is your opinion?
