Non-dimmable LED Driver

constant voltage 12v 80w CCT-Tunable & 5 in 1 dimmable led strip light driver power supply junction box

277vac input voltage, CCT & Triac/0-10V/1-10V/10VPWM/Potentiometer dimmable led driver constant voltage output mode, can be used with three-wire dual color temperature LED lamps, switching color temperature according to the power supply to meet the needs of different scenarios

  • item no.:

    CTA-12080J
  • brand:

    SMARTS
  • Input Voltage:

    110-277VAC
  • Output Voltage:

    12VDC
  • Working Mode:

    Constant voltage
  • Certification:

    UL, ROHS, FCC
  • Warranty:

    5 years
inquiry now
product details

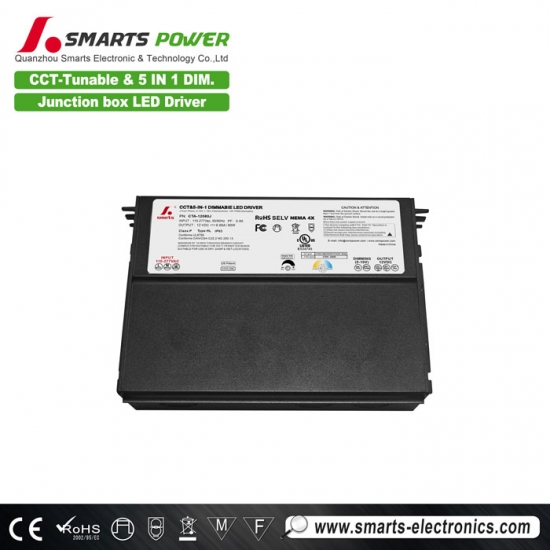

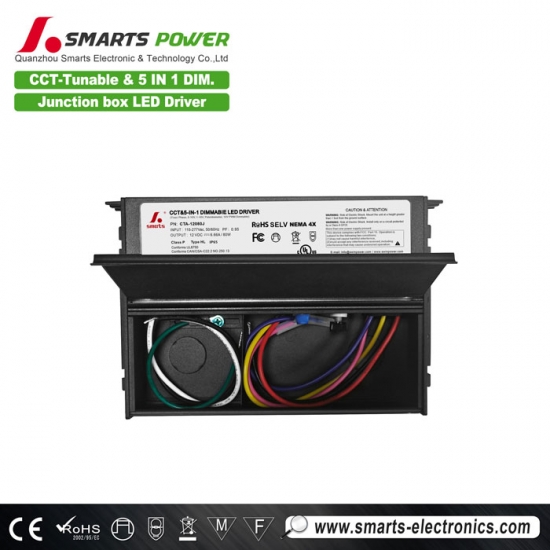

constant voltage 12v 80w CCT-Tunable & 5 in 1 dimmable led strip light driver power supply junction box

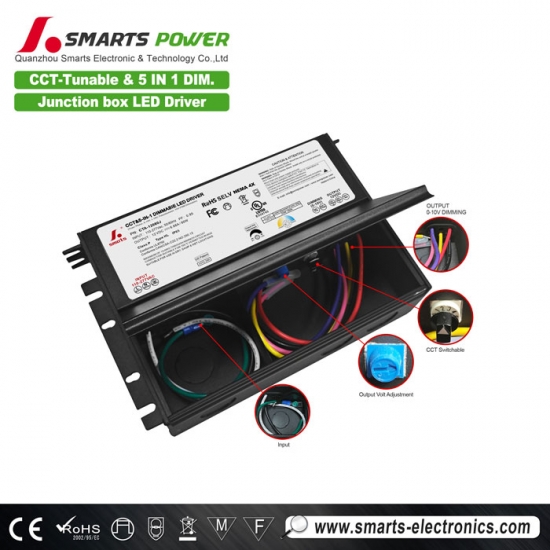

 CCT & triac/0 10v 80W dimmable led driver, built-in unique fine-tuning voltage function knob, which can compensate for light attenuation of the lamp, has short circuit/over temperature/overload protection function, five-year warranty


  Specification

Model Number CTA-12080J CTA-24080J CTA-48080J
Output Type
Reted Power 80W
Reted Voltage 12V 24V 48V
Reted Current 6.66A 3.33A 1.66A
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Load Regulation ±1%
Input Type
Voltage Range 110-277V
Frequency Range 47-63HZ
Efficiency(Typ.) 84%@120VAC 85%@277VAC
Total Harmonic Distortion THD< 15%(@100% load)
Power Factor(typ.) 0.99@120VAC 0.98@277VAC
AC Current(Typ.) 0.85A
Inrush Current(Typ.) 22A
Leakage Current <0.5mA
PROTECTION
Short Circuit Hiccup mode, recovers automatically after fault condition is removed.
Over Load Intelligently reduce the output voltage, auto-recovery or re-power on to recovery
Over Temperate 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
ENVIRONMENT
Working Temp. Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section)
Working humidity 20 ~ 95% RH non-condensing
Storage temp., Humidity -40 ~ +90, 10 ~ 95% RH
Temp .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
SAFETY & EMC
Safety standards UL8750, CSAC22.2 No. 250.0-08
Withstand voltage I/P-O/P:1.88KVAC
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC Emission Compliance to FCC part 15  Subpart B
OTHERS
Dimension 188x120.5x42mm (L*W*H)
Packing -
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

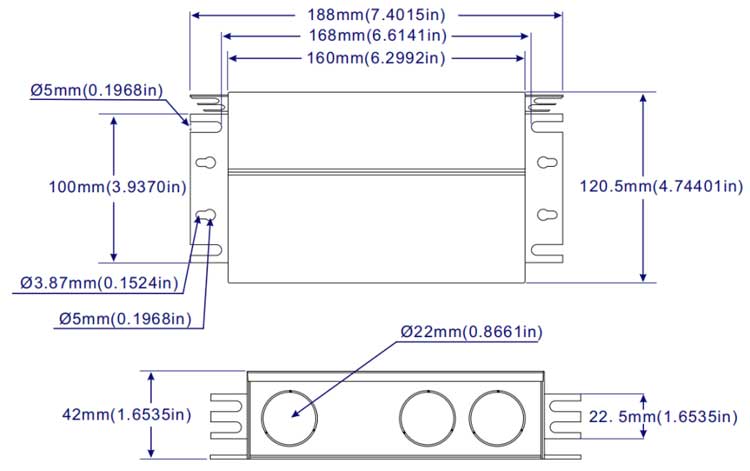

  Mechanical Specification


Wire Specification

CTA-J Input Output 0/1-10V Dimming
Power Function Color Spec. Function Color Spec. Function Color Spec.
80W AC L Black 18AWG DC+ Red 18AWG Dim+ Purple 18AWG
AC N White 18AWG DC- Black 18AWG Dim- Pink 18AWG
Ground Green 18AWG CW- Yellow 18AWG / / /

Function Introduction


Mounting

1.This driver must be installed in a well-ventilated area free from explosive gases and

vapors. Air circulation is essential for heat dissipation.
2.Recommended spacing between LED drivers should be a minimum of 4” (10cm).
3.Do not mount driver close to or above objects that can radiate. Vertical mounting
is highly recommended.
4.Select an appropriate location that is able to support the weight of the product.
5.Use the mounting tabs on the left and right side of the driver to mount the product.

Connecting Diagram

Using TRIAC/Phase cut dimming
1.Through a phase-dimmer or lighting system, control the input AC phase line (L) and adjust the output PWM
2.Triac dim mode: Forward phase & reverse phase, MLV, ELV dim
3.Please try to use dimmers with power at least 1.5 times as the output power of the driver.


  Dimming operation

Works with Two channel CCT warm-dim LED strip/tape (3 wires)



  Related Products

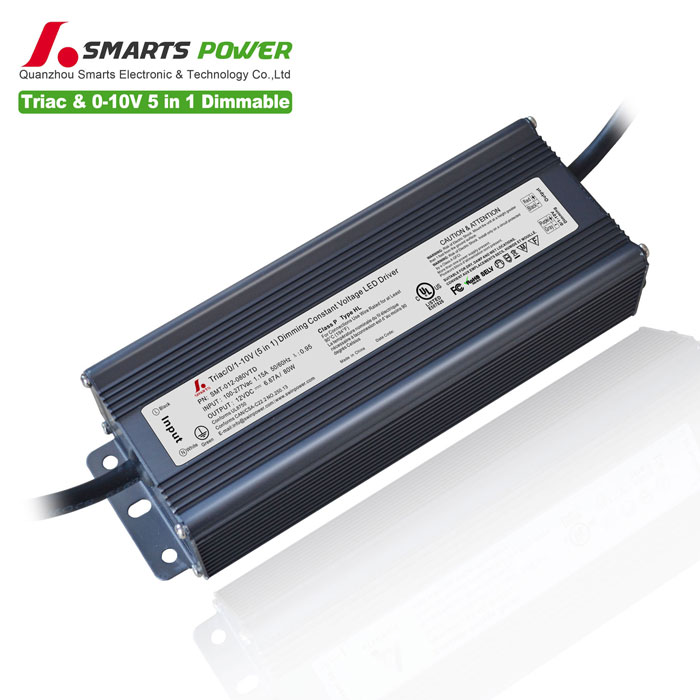

80W waterproof constant voltage led driver, dimmable mode is triac & 0 10v dimmable, suitable for outdoor lighting dimming projects, 7-year warranty



Mode:SMT-012-080VTD

intput voltage:100-277vac

Size : 200*68.5*45mm
output voltage:12vdc
Weight:1.1Kg/pcs

Send Us An Inquiry

We will contact you as soon as possible!

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

categories
hot products
related products
led constant voltage power supply CCT & triac/0 10v dimmable constant voltage led driver power supply 12v 30W
277vac input voltage CCT & triac/0-10v 30W dimmable led driver ,PWM dimmable mode, compatible with all Triac/Phase-Cut/MLV/ELV dimmers or DC0-10V,Resistor & 10V PWM signal dimmers on the market such as Lutron dimmer
12 volt dimmable led driver 12 volt 60w CCT& 5 in 1 Dimming Electronic Dimmable LED Driver power supply
This CCT& 5in1 dimmable led driver is compact in size, easy to install, aluminum housing design, can pass NEMA 4X, good heat dissipation performance, strong compatibility, and can work well with most triac/0-10V dimmers on the market Compatible for use with, for example, Lutron 60W dimmers
dimmable led driver triac & 0 10v constant voltage dimming 80W LED driver strips power supply junction box
SMARTS new multi-functional collection type 5 IN 1 dimmable led driver 80W 12V, the output voltage is 110-277vac, constant voltage working mode, it is very compatible with Lutron triac/0-10v 80W dimmer
best constant voltage led driver ul listed 12v CCT & 5 in 1 constant voltage dimmable led driver strip power supplies
smarts CCT & triac/0-10v/1-10V/10VPWM/Potentiometer 96W 24V Constant voltage LED driver is integrated with the junction box, easy to install, has strong compatibility, and can be well connected with Lithonia Lighting's 96W LED downlight
triac dimmable led driver 12v 277VAC triac &0-10V dimmable constant voltage electronic led driver transformer 12v 100W
smarts new product 100W dimmable led power supply PWM output mode, the dimming range is 0-100% deep dimming, with exclusive patented design "Clamshell" junction box, convenient and quick wiring, can be perfectly connected with RAB Lighting's 100W LED floodlight to achieve smooth Flicker-free dimming
triac & 0 10v dimmable led power supply 12 volt 120W triac & 0 10v constant voltage dimming led driver power supply
smarts new product 120W dimmable led driver, the dimming mode is CCT & Triac/0-10V/1-10V/10VPWM/Potentiometer, which is compatible with most dimmers on the market, such as Lutron triac/0-10v dimmer
30w dimmable led driver 30w 12v/24v CCT-Tunable & triac/0 10v dimmable constant voltage led driver strip light power supply
277vac CCT & Triac/0-10V/1-10V/10VPWM/Potentiometer dimmable 30W 12V led driver, has ultra-low load requirements, can work perfectly under 10-100% load, has strong compatibility, and can be well compatible with most dimmers on the market, such as Lutron dimmers
60W dimming led driver 60w 12V/24v CCT & triac/0 10V dimmable constant voltage led strip light driver
CCT-Tunable & triac/0 10V dimmable led driver 60W has an integrated design with the junction box. It has a wide dimming range of 0.01~100% ultra-deep dimming. It has strong compatibility and is compatible with popular front and rear thyristor dimmers and systems on the market. 0 -10V dimmers and systems, such as Lutron dimmers
