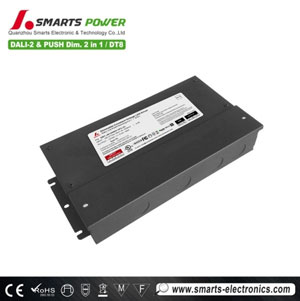

DALI-2 D4i Intelligent Dimmable Constant Current 100W LED driver 1200mA ultra-high efficiency & good heat dissipation
DALI-2 D4i Intelligent Dimmable 100W LED driver 1200mA fully compatible with the DALI-2 D4i lighting control protocol, are designed for excellent performance, reliability, and efficiency.suitable for street lights, stadium lights, square lights, plant lights and others.
Specification
|
Model |
SMT-0100U120-D4IA |
|
|
Output |
Output Voltage Range |
42-118V |
|
Output Current Range |
120-1200mA |
|
|
Output Power |
100W |
|
|
O/P Current Ripple(PK-PK) |
≤5% |
|
|
No Load Voltage |
88-123V |
|
|
Start-up Current Overshoot |
1.28A@120VAC 1.26A@230VAC 1.29A@305VAC |
|
|
Start-up Time |
717ms@120VAC(100%load) 719ms@230VAC 720ms@305VAC |
|
|
Load Regulation |
≤5% |
|
|
Auxiliary Power |
+24V 125mA |
|
|
Input |
Rated Input Votage Range |
120-277VAC |
|
Input Voltage Range |
90-305VAC |
|
|
Input Frequency Range |
47 - 63Hz |
|
|
Power Factor @ full load |
PF≥0.99@120VAC |
|
|
T.H.D (Typ. ) @ full load |
≤10% @230VAC |
|
|
Efficiency (Typ.) @ full load |
90%@277VAC |
|
|
Max Input Current |
0.97A@120V |
|
|
Standby Power Consumption |
<0.5W DIMMING TO OFF |
|
|
Max Inrush Current (Typ.) |
55A, 200us @50% 220VAC |
|
|
Remark |
All performance parameters are typical values measured at 25℃, unless otherwise noted. |
|
| Protection Requirement | Short Circuit Protection | Driver will not be damaged, Constant Current Or Hiccup mode |
| Constant Power | The output voltage and current will automatically follow the mode(Attached Figure 1) | |
| Over Temperature Protection | After the shell temperature exceeds the TC point, start the overtemperature protection function(Attached Figure 2) | |
| Over Load Protection | Hiccup mode, recovers automatically after fault condition is removed. | |
| Remark | ||
 |
 |
 |
 |
Dimming Specifications
| Item | Min. | Type | Max. | Remark | Optional | |
| 0-10V Dimming | Dim Vmax | 0V | 12V | 0-10V dimming and PWM dimming and potentiometer dimming are three-in-one compatible 0-5V dimming, negative logic dimming, Customize according to customer needs | ||
| Dim Range | 1% Iomax | 100% Ioset | ||||
| Dim voltage Range | 1V | 10V | ||||
| Dim to Off | Dim off | 0.8V | 0.9V | 1.0V | ||
| Dim on | 1.1V | 1.2V | 1.3V | |||
| PWM Dimming | PWM high | 5V | 10V | |||
| PWM low | -0.3V | -0.6V | ||||
| Frequency | 200Hz | 2KHz | ||||
| PWM duty | 1% | 99% | ||||
| Potentiometer Dimming | Resistance | 10K ohm | 100K ohm | |||
| DALI-2 Dimming | AC Power measurement | -0.01 | 0.01 | √ | ||
| DA, DA high level | 9.5 V | 22.5 V | ||||
| DA, DA Low level | -6.5 V | 6.5 V | ||||
| DA, DA current | 0 mA | 2 mA | ||||
| DALI Standards | IEC 62386-101 102 207:DALI 2.0 D4i | √ | ||||
| DALI dimming compatibility | Yuanhao Master,Simon Master,Philips Master DDBC120-DALI,OSRAM Master,Helvar Master 905 Router,Tridonic Master,HDL MC64-DALI431 Master,Crestron,KNX | √ | ||||
| DMX Dimming | / | |||||

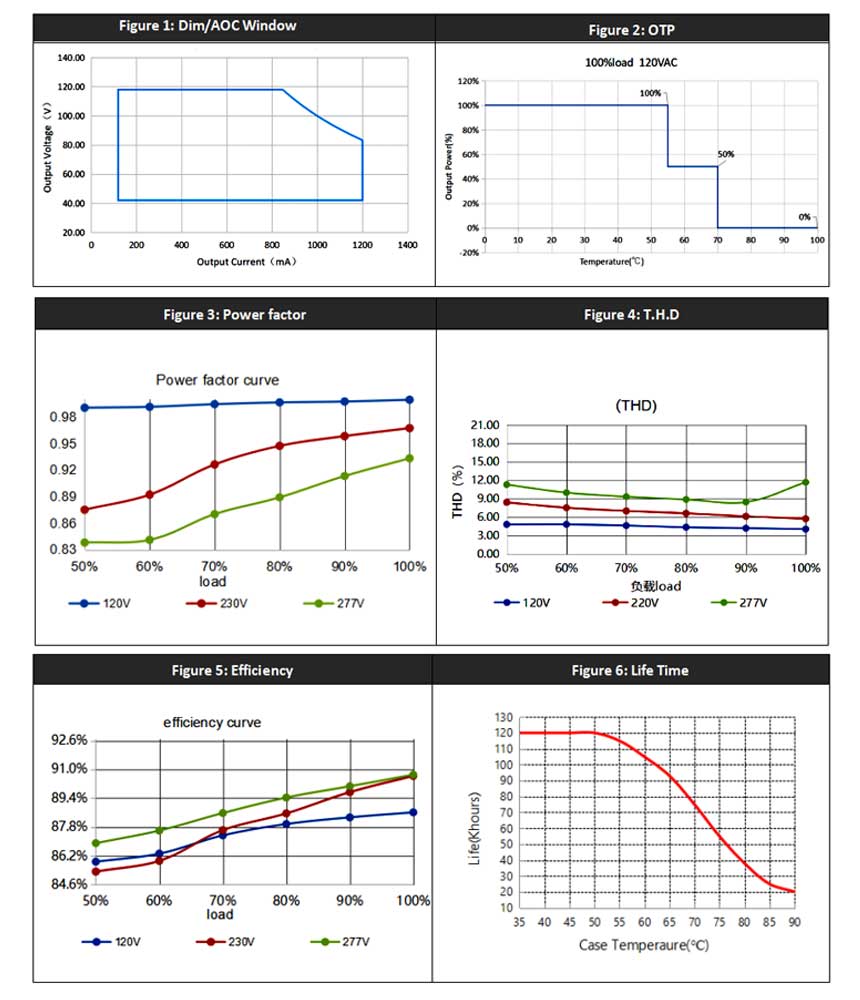

Characteristic Curve
