Non-dimmable LED Driver

12v dc lighting electronic transformer low voltage triac dimmable driver

12v dc lighting transformer is designed to operate with any Lutron TRIAC (Leading edge) dimmer switch TGCL-153PH-WH. It is encased in a aluminum enclosure that includes 2 knockouts, making it the perfect choice for various LED installations.

  • item no.:

    SMT-012-120VTD2JV2
  • brand:

    SMARTS
  • Input Voltage:

    110-277VAC
  • Output Voltage:

    12v
  • Output Current:

    10A
  • Working Mode:

    CV
  • Certification:

    UL, FCC, CE, ROHS
  • Warranty:

    7 years
inquiry now
product details

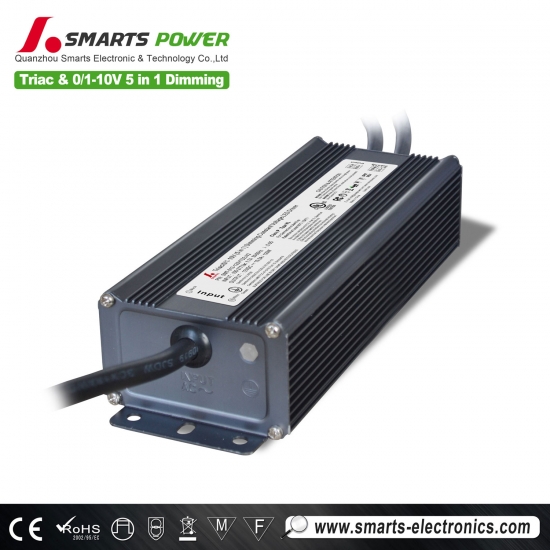

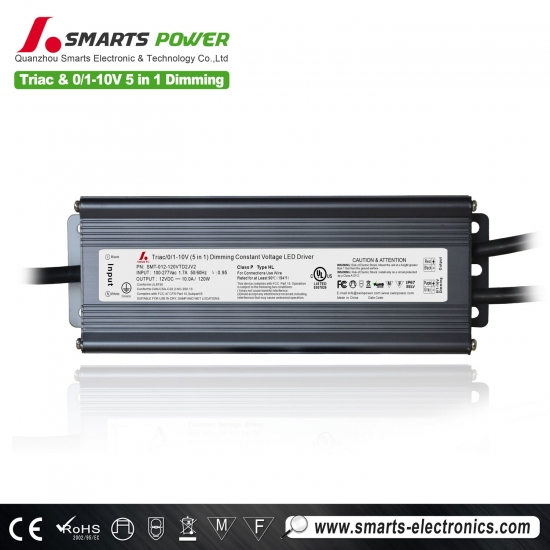

12v dc lighting electronic transformer low voltage triac dimmable driver


12v dc lighting transformer is the ultimate power supply for flawless dimming capabilities in any type of project. Offering a wide voltage input range, it is perfectly compatible with LEDCO single channel LED strip lights. These drivers have their own junction boxes for reliable, long-lasting use.


  Product parameters

model

SMT-012-120VTD2JV2

SMT-024-120VTD2JV2

Output

DC Voltage

12V

24V



Voltage Tolerance

±0.5V



Voltage Regulation

±0.5%



Rated current

10.00A

5.0A



Rated power

120W

120W



Load Regulation

±2 %

±1 %

Input

Voltage Range

100~277VAC



Frequency Range

4763HZ



THD(Typ.) @full load

<20%@120VAC &277VAC



Power Factor ( Typ.

[email protected]   0.9[email protected]277VAC

[email protected]   0.9[email protected]277VAC



Full Load Efficiency(Typ.)

82%@120VAC   83%@277VAC

82%@120VAC   84%@277VAC



AC CurrentTyp.

1.7A



Inrush Current Typ.

20A, 50%, 1.6ms @120VAC;   25A, 50% 1.2ms @277VAC



Leakage current

<0.5mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition removed



Over Loading

≤120% constant current limiting, auto-recovery



Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Environment

Working TEMP.

-40+60℃



Working Humidity

2090%RH,non-condensing



Storage TEM.,Humidity

-40+80℃1095%RH



TEMP.coefficient

±0.03%/℃050℃



Vibration

10500Hz2G 10min./1 cycleperiod for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750 , CAN/CSA-C22.2 No.250.13



Withstand voltage

I/P-O/P:1.88KVac



Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH



EMC EMISSION

FCC 47 CFR Part 15 ,Subpart B

Others

Net Weight

1.1Kg



Size

230*70*43mmL*W*H



packing

Carton size: 340*275*170mm , 10PCS/ctn

Notes

1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.

2. Tolerance: includes set up tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final

equipment manufactures must be-qualify EMC Directive on the complete installation again.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  Mechanical Specification


triac dimmable driver

Input cable 3*18AWG,the green cable to (FG) "Black" to L ,and "White" to N of Mains AC

Output cable 2*16AWG,Red" (+) to LED Positive side (+) , "Black"(-)  to LED Negative side (-).

Dimming cable 2*18AWG,DIM (+) Purple  to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)

Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.


  Compatible Strip Lighting Type


AspectLED's Flexible 12Vlow voltage LED strip lights feature super bright side emitting SMD 335 LEDs and are a perfect solution together with triac dimmable driver for a wide variety of architectural and accent lighting applications including; cove lighting, under-cabinet lighting, back-lighting, pathway lighting and decorative lighting.

12v dc lighting transformer


  Related Products


triac dimmable driverTriac dimmable driver is the most versatile and efficient dimmable electronic driver for single color output LED strips. This driver has a high power factor of up to 0.98, a universal input and perfect compatibility with a wide range of dimmers for flicker free lighting.



Mode:SMT-012-060VTD2JV2
intput voltage:100~277V AC
Size :  350*77*37mm
100% full load burn-in test



Send Us An Inquiry
