Smarts Electronics' SMT-012-200VTH 100-277vac LED Driver is the perfect choice for use in Schools, Hospitals, and Shopping Malls or for any commercial application that 100-277vac is present.The Drivers are paired with relative junction box.

  Specification



Model		SMT-012-200VTH		SMT-024-200VTH
Output	DC Voltage	12V		24V
	Voltage Tolerance	±0.5V
	Voltage Regulation	±0.5%
	Voltage Tolerance	±0.5V
	Load Regulation	±2%		±1%
	Rated current	16.67A		8.33A
	Rated power	200W
Input	Voltage Range	100-277VAC
	Frequency Range	47~63HZ
	Power Factor(Typ.)@ full load	0.96@120VAC  0.97@277VAC	0.97@120VAC  0.95@277VAC
	THD(Typ.)@ full load	<20%
	Inrush Current (Typ.)	15A, 50%, 1.4ms
	Full Load  Efficiency(Typ.)	>88%	>88%
	AC Current(Typ.)	2.3A@110VAC  1.76A
	Leakage current	<0.50mA
Protection	Short Circuit	shut down o/p voltage, re-power on to recover after fault condition is removed
	Over load	≤120% constant current limiting, auto-recovery
	Over temperature	100℃±10℃ shut down o/p voltage, automatically recover after cooling.
	Over Current	≤1.4*I out
Environment	Working TEMP.	-40~+60℃
	Working Humidity	20~90%RH,non-condensing
	Storage TEM.,Humidity	-40~+80℃,10~95%RH
	TEMP.coefficient	±0.03%/℃(0~50℃)
	Vibration	10~500Hz 2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
Safety&EMC	Safety standards	UL8750
	Withstand voltage	I/P-O/P:3.75KVAC
	Isolation resistance	I/P-O/P:100MΩ/500VDC/25℃/70%RH
	EMC EMISSION	Compliance to EN55015,EN61000-3-2 (≥50%load)
	EMC IMMUNITY	EN61000-4-2,3,4,5,6,11(Surge 4KV)
Others	Weight	1.8Kg
	Size	260*103*46mm (L*W*H)
	packaging	10PCS/CTN 385*335*200mm     20PCS/CTN
	Notes	Can we make the 120w 150w 200w 250w constant volatge led drivers into one output? Answer:  Yes.

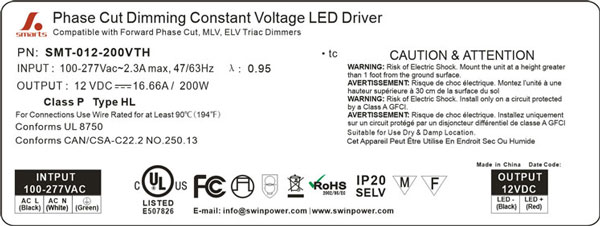

Label

  Packaging & Shipping

what is the packing situation ??



MOQ: 1 PCS

Payment : T/T  Western union  Paypal  Credit Card

Delivery : within 7 working days for sample order ,  13 working days for 500pcs

Shipping term : FedEx  DHL  UPS  TNT  Air /Sea Transportation
