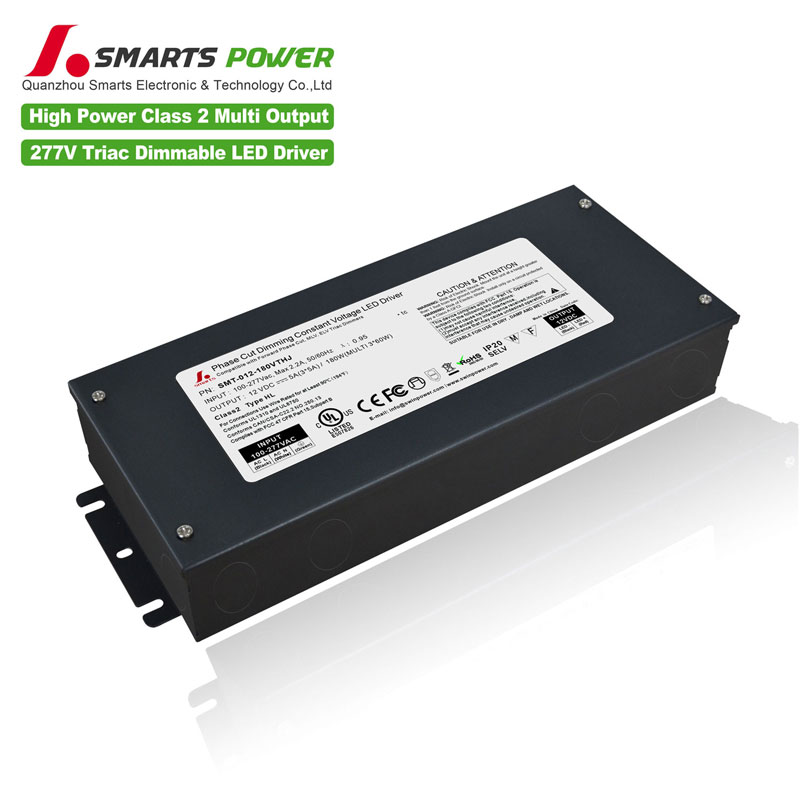

UL led driver dimmable led triac high power led voltage 180 wattage
SMT-012-180VTHJ is high power led voltage wiht output 180watt. It is a kind of Class 2 and operates multiple output 3*5A. Built with junction box enables it more safer. 277vac LEVITON dimmer shows 0-100% dimming range with it.
Specificaiton
|
Model |
SMT-012-180VTHJ (1.0 version) SMT-012-180VTHJV2 (2.0 version) SMT-012-180VTHJWV2 (3.0 version) |
SMT-024-192VTHJ (1.0 version) SMT-024-192VTHJV2 (2.0 version) SMT-024-192VTHJWV2 (3.0 version) |
||
|
Output |
DC Voltage |
12V |
24V |
|
|
Voltage Tolerance |
±0.5V |
|||
|
Voltage Regulation |
±0.5% |
|||
|
Voltage Tolerance |
±0.5V |
|||
|
Load Regulation |
±1% ±1% |
±1%
|
||
|
Rated current |
3*5A |
2*4A |
||
|
Rated power |
180W(3*60W) |
192W (2*96W) |
||
|
Input |
Voltage Range |
100-277VAC |
||
|
Frequency Range |
47～63HZ |
|||
|
Power Factor(Typ.)@full load |
0.99@120VAC 0.94@277VAC |
0.99@120VAC 0.94@277VAC |
||
|
THD(Typ.)@full load |
<20% |
|||
|
Inrush Current(Typ.) |
15A, 50%, 1.4ms |
|||
|
Full Load Efficiency（Typ.） |
86%@120VAC , 88%@277VAC |
87%@120VAC , 89%@277VAC |
||
|
AC Current（Typ.） |
2.2A@100VAC |
2.3A@100VAC |
||
|
Inrush Current (Typ.) |
19A (twidth=1.3ms) @120VAC ;38A (twidth=960us) @277VAC |
19A (twidth=1.3ms) @120VAC ;38A (twidth=960us) @277VAC |
||
|
Leakage current |
<0.50mA |
|||
|
Protection |
Short Circuit |
shut down o/p voltage, re-power on to recover afterfault conditionisremoved |
||
|
Over loading |
≤120% constant current limiting, auto-recovery |
|||
|
Over temperature |
100℃±10℃ shut down o/p voltage,automatically recover after cooling. |
|||
|
Over Current |
≤1.4*I out |
|||
|
Environment |
Working TEMP. |
-40～+60℃ |
||
|
Working Humidity |
20～90%RH,non-condensing |
|||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
|||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
|||
|
Vibration |
10～500Hz 2G 10min./1 cycle，period for 60min.each along X, Y,Z axes |
|||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
||
|
Withstand voltage |
I/P-O/P: 1.88KVAC |
|||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
|||
|
EMC EMISSION |
FCC Part 15 B |
|||
|
Others |
Weight |
2.3Kg |
||
|
Size |
1.0version: 278*108*46mm / 2.0version: 278*110*45mm / 3.0version: 278*130*45mm (L*W*H) |
|||
|
packaging |
340*210*245mm/8pcs /CTN G.W.:19.50KG/CTN (1.0 version)
385*335*200mm 20PCS/CTN |
|||
|
Notes |
1. All parameters NOT specially mentioned are measured at110V &277VAC input , rated load and 25℃of ambient temperature. 2..Tolerance:includes set us tolerance,line regulation and load regulation. |
|||
 |
 |
 |
 |
■Mechanical Specification

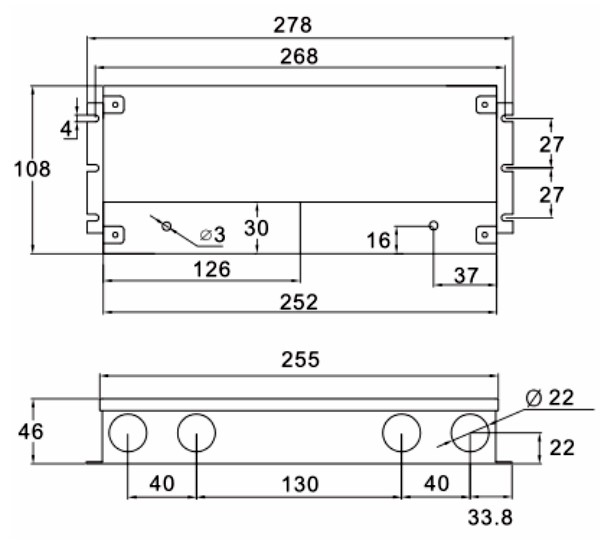

1.0 version: SMT-012-180VTHJ , SMT-024-1920VTHJ

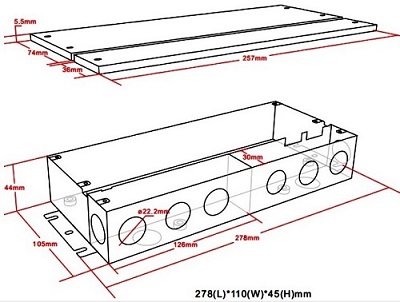

2.0 version : SMT-012-180VTHJV2 / SMT-024-192VTHJV2

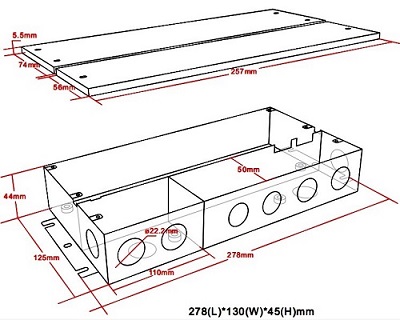

3.0 version : SMT-012-180VTHJWV2 / SMT-024-192VTHJWV2
※Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
※Output wire: 16AWG , Red is（DIM+）,Black is（DIM-）
※Class 2 standard output terminal. Three groups of cables for SMT-012-180VTHJ / SMT-012-180VTHJV2 / SMT-012-180VTHJWV2 ; two groups for SMT-024-192VTHJ / SMT-024-288VTHJV2 / SMT-024-288VTHJWV2
■Dimming Operation
※The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase/triac dimmer.
※Usually matching with Forward phase , leading edge , Magnetic low voltage, triac dimmers, or Reverse phase, trailing edge ,Electric low voltage Dimmers.
※Please try to use dimmers with power at least 1.5 times as the output power of the driver.

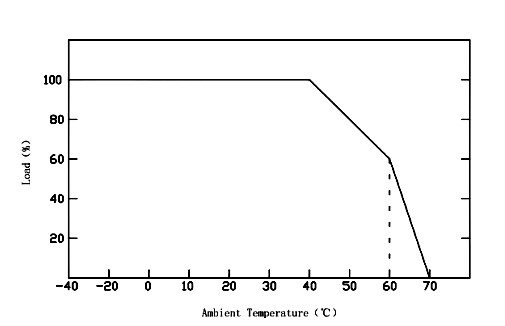

■Derating Curve
※To extend their life, please refer to the Derating Curve and derate according to the temperature.

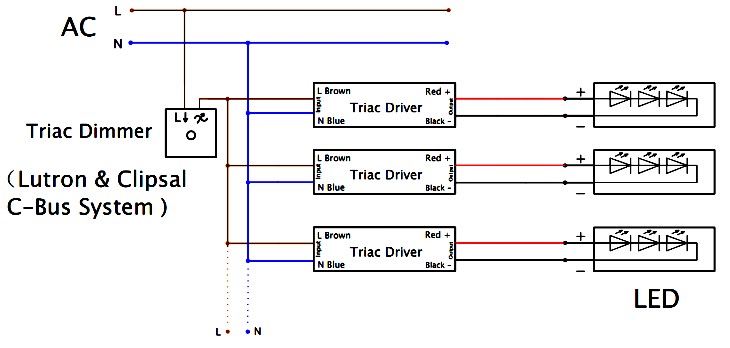

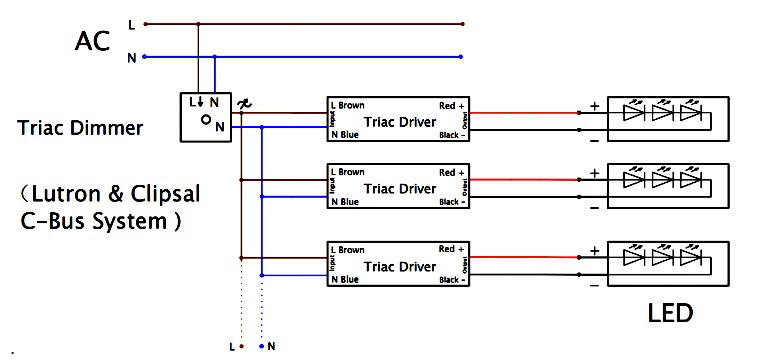

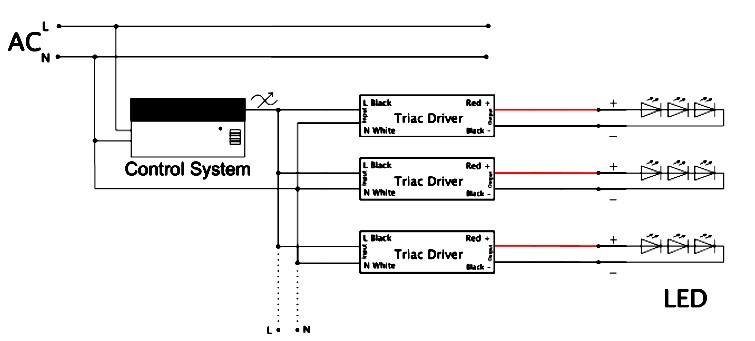

■ Connecting Diagram
.

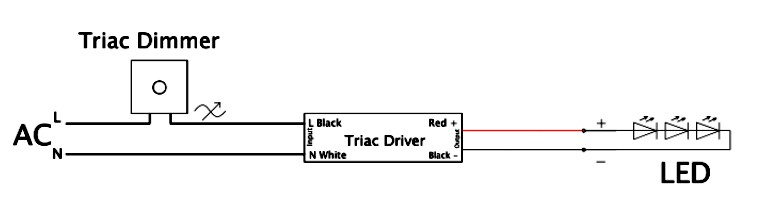

■ Simple Connection Diagram:
■ Instruction:
※This driver should be installed by qualified and professional person;
※Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.
※Ensure that wiring is correct before test in order to avoid light and power supply damage;
※If the dimmable LED drivers do not work normally, pl. don’t maintain privately, but contact us: sales9@smartselectronics.com Or take a phonecall: 0086-18016688251
Official website: www.smarts-electronics.com and www.swinpower.com
Compatible Dimmer Type
This UL led driver dimmable led offers 7 years warranty, Compatible with magnitude MLV led driver, this driver has less defective rate within 0.001%.
