Magnetic Track LED Light constant voltage 100W 24v non dimming led driver for LED light
Magnetic Track LED Light constant voltage 100W 24v non dimming led driver for LED light
Magnetic Track LED Light constant voltage 100W 24v non dimming led driver for LED light

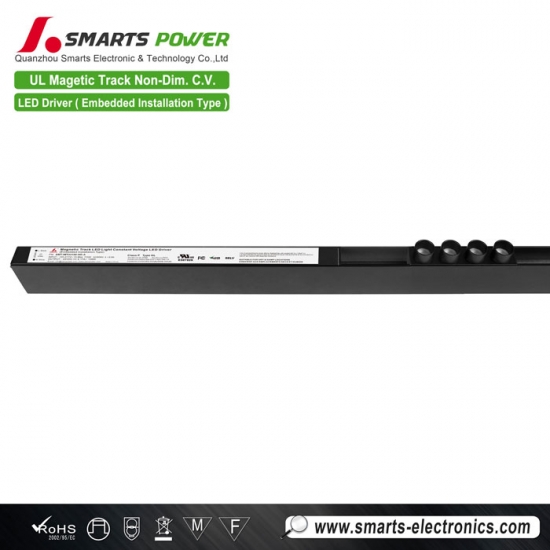

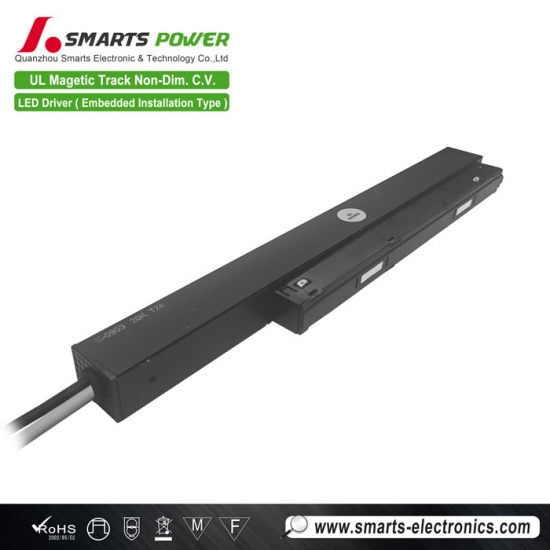

This 100W ultra-thin constant voltage non-dimmable LED driver features high efficiency and a compact size, making it suitable for installation in confined spaces in indoor dry environments for LED lighting projects. 7-year warranty.
Specification
| Model | SMT-IMT24100-ND-A | SMT-IMT48100-ND-A | |
| Certificate | UL/ SELV / FCC / RoHS / REACH | ||
| Output | DC Voltage | 24V | 48V |
| Voltage Tolerance | ±1.5% | ±1% | |
| Voltage Regulation | ≤0.5% | ||
| Rated current | 4.17A | 2.08A | |
| Rated power | 100W | ||
| Load Regulation | ±1% | ||
| Input | Voltage Range | 110-277VAC | |
| Frequency Range | 47 - 63Hz | ||
| Power Factor (Typ.) @ full load | 0.99@120VAC 0.95@277VAC | ||
| THD(Typ. ) @ full load | <20%@120VAC &277VAC | ||
| Efficiency(Typ.) @ full load |
≥88.5%@120VAC ≥91%@277VAC |
≥88.5%@120VAC ≥91%@277VAC |
|
| AC Current (Max.) | 1.2A | ||
| Inrush Current (Typ.) | 17A,810us@50%Ipeak110VAC;38A,148us@50%Ipeak277VAC | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed | |
| Over Load | ≤120% Constant current mode, recovers automatically after fault condition is removed | ||
| Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling | ||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | |
| Working Humidity | 20 - 90%RH non-condensing | ||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | ||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
| Safety & EMC | Safety standards | UL8750 (US) | |
| Withstand voltage | I/P-0/P: 1.8KVAC I/P-F/G: 1.8KVAC O/P-F/G: 0.5KVAC(US) | ||
| Isolation resistance | I/P-O/P: 100MΩ/ 500VDC/ 25℃/ 70% RH | ||
| EMC Emission | FCC Part 15 Subpart B (US) | ||
| Surge Immunity Test | Different mode: 2KV, Common mode:4KV | ||
| Others | Net Weight | 0.4KG | |
| Dimension | 309.5*22.4*44mm / 12.18*1.73*0.88 inch (L*W*H) | ||
| Packing | 20pcs /CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input,rated load and 25℃ of ambient temperature. | ||
| 2. Under low input voltage, derating output is required to ensure a long life. | |||
Mechanical Specification
| American wire gauge MGQ101 | |
| Input wires | Black(L) Whote(N) Green(G)(3*18AWG) |
| Output | Embedding the track and through the guide rail driver output current |
| Remark: Please make sure your connection these correctly otherwise your product will not function correctly and could be damaged | |
Warm tips :
Recommended Max. Carrying Current (A) = wire diameter(mm²) x 10A/mm ²
For example: 1mm ² output cable, Recommended Max. Carrying Current (A) = 1mm ² x 10A/mm ²=10A
Compatible Track:
Dimming Operation
