42w led driver, constant voltage models, universal 100-240vac. Led driver 24v serves as a special energy efficient get the protection for short circuit/overload/over temperature
|

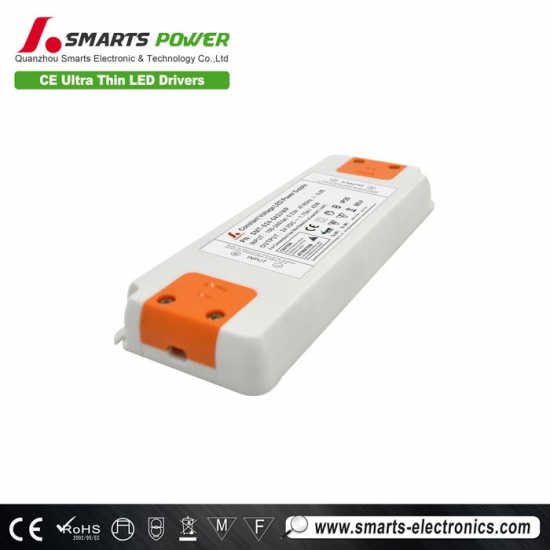

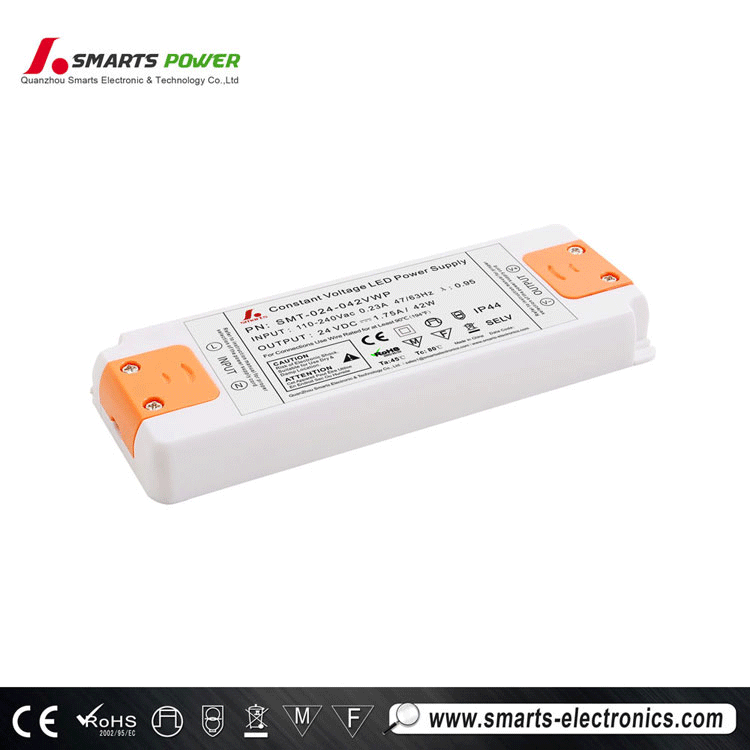

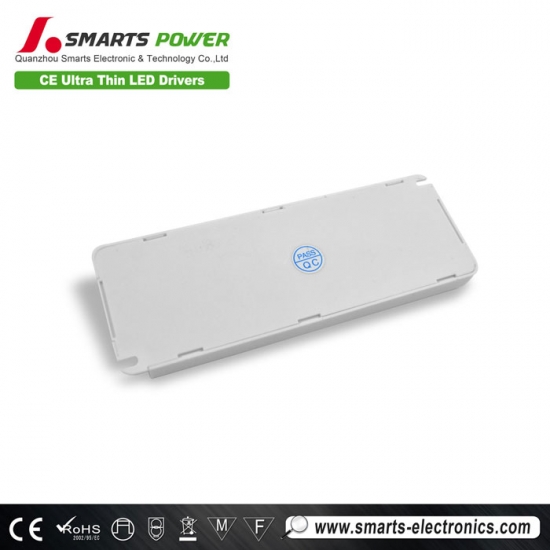

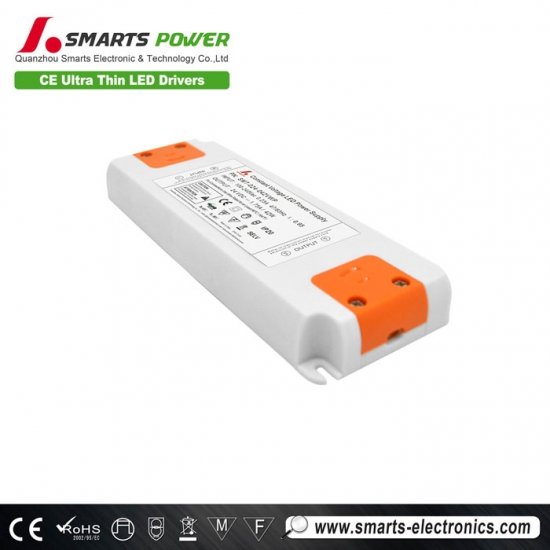

Details for led spotlight driver
|

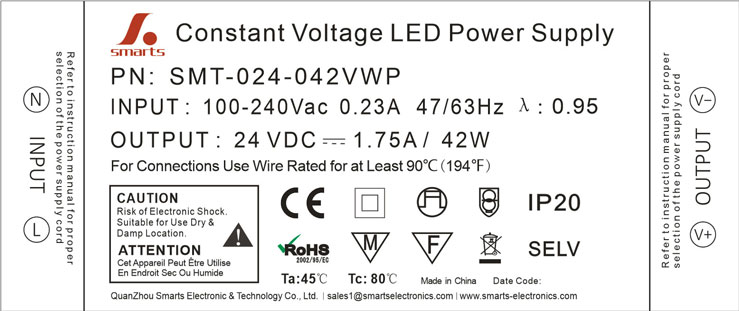

Label
|
 |
|
SPECIFICAION for led spotlight driver
| MODEL | SMT-012-042VWP |
SMT-024-042VWP |
|||
| OUTPUT | DC VOLTAGE | 12V |
24V |
||
| RATED CURRENT | 3.5Amp |
1.75Amp |
|||
| VOLTAGE RANGE |
|
||||
| RATED POWER | 42Watt | ||||
| RIPPLE&NOISE(max) | 300mV | ||||
| VOLTAGE TOLERANCE | ±5% | ||||
| LINE REGULATION | ±1% | ||||
| LOAD REGULATION | ±2% | ||||
| INPUT | VOLTAGE RANGE | 100-265VAC | |||
| FREQUENCY RANGE | 47-63Hz | ||||
| POWER FACTOR(Typ.) |
|
||||
| EFFICIENCY(Typ.) | ﹥83% |
﹥84% |
|||
| AC CURRENT(Typ.) | 0.48A/110VAC, 0.25A/220VAC | ||||
| PROTECTION | SHORT CIRCUIT | Protection type:recovers automatically after condition is removed | |||
| OVER CURRENT | overload protected@145-160% above peak rating | ||||
| OVER VOLTAGE | Protection type:Shut down o/p voltage,re-power on to removed | ||||
| ENVIRONMENT | WORKING TEMP. | -10～+50℃ (Refer to output load derating curve) | |||
| WORKING HUMIDITY | 20～99% RH non-condensing | ||||
| STORAGE TEMP.,HUMIDITY | -40～+80℃,10～99%RH | ||||
| SAFETY&EMC | SAFETY STANDARDS | EN61347-1;EN61347-2-13; CE /ROHS approval | |||
| WITHSTAND VOLTAGE | I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| EMC Test Standards | EN55015;EN61000-3-2;EN61000-3-3; | ||||
| EN61547;EN61000-4-2,3,4,5,6,8,11; | |||||
 |
 |
 |
 |
Noted for led spotlight driver
1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
Mechanical Specification for led spotlight driver
