triac & 0 10v dimmable constant voltage pwm output led driver power supply junction box 12v 30w

This 30W Triac/0-10V/1-10V/10VPWM/Potentiometer dimmable led driver is designed to be integrated with the junction box. It has a built-in 8-speed switchable output frequency knob with an optional range of 250hz-20khz.


  Specification

Model Number HZA-12030J HZA-24030J HZA-48030J
Output Type
Reted Power 30W
Reted Voltage 12V 24V 48V
Reted Current 2.5A 1.25A 0.63A
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Load Regulation ±1%
Input Type
Voltage Range 110-277V
Frequency Range 47-63HZ
Efficiency(Typ.) 79%@120VAC 80%@277VAC
Total Harmonic Distortion THD< 15%(@100% load)
Power Factor(typ.) 0.99@120VAC 0.98@277VAC
AC Current(Typ.) 0.35A
Inrush Current(Typ.) 18A
Leakage Current <0.5mA
PROTECTION
Short Circuit Hiccup mode, recovers automatically after fault condition is removed.
Over Load Intelligently reduce the output voltage, auto-recovery or re-power on to recovery
Over Temperate 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
ENVIRONMENT
Working Temp. Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section)
Working humidity 20 ~ 95% RH non-condensing
Storage temp., Humidity -40 ~ +90, 10 ~ 95% RH
Temp .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
SAFETY & EMC
Safety standards UL8750, CSAC22.2 No. 250.0-08
Withstand voltage I/P-O/P:1.88KVAC
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC Emission Compliance to FCC part 15  Subpart B
OTHERS
Dimension 158x120.5x42mm (L*W*H)
Packing -
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  Mechanical Specification



Wire Specification

HZA-J Input Output 0/1-10V Dimming
Power Function Color Spec. Function Color Spec. Function Color Spec.
30W AC L Black 18AWG DC+ Red 18AWG Dim+ Purple 18AWG
AC N White 18AWG DC- Black 18AWG Dim- Pink 18AWG
Ground Green 18AWG / / / / / /

Function Introduction



Mounting

1.This driver must be installed in a well-ventilated area free from explosive gases and vapors. Air circulation is essential for heat dissipation.

2.Recommended spacing between LED drivers should be a minimum of 4” (10cm).

3.Do not mount driver close to or above objects that can radiate heat. Vertical mounting is highly recommended.

4.Select an appropriate location that is able to support the weight of the product.

5.Use the mounting tabs on the left and right side of the driver to mount the product.



Connecting Diagram

Using TRIAC/Phase cut dimming

1.Through a phase-dimmer or lighting system, control the input AC phase line (L) and adjust the output PWM

2.Triac dim mode: Forward phase & reverse phase, MLV, ELV dim

3.Please try to use dimmers with power at least 1.5 times as the output power of the driver.


  Dimming operation

UsingTriac MLV wiring diagram




  Related Products

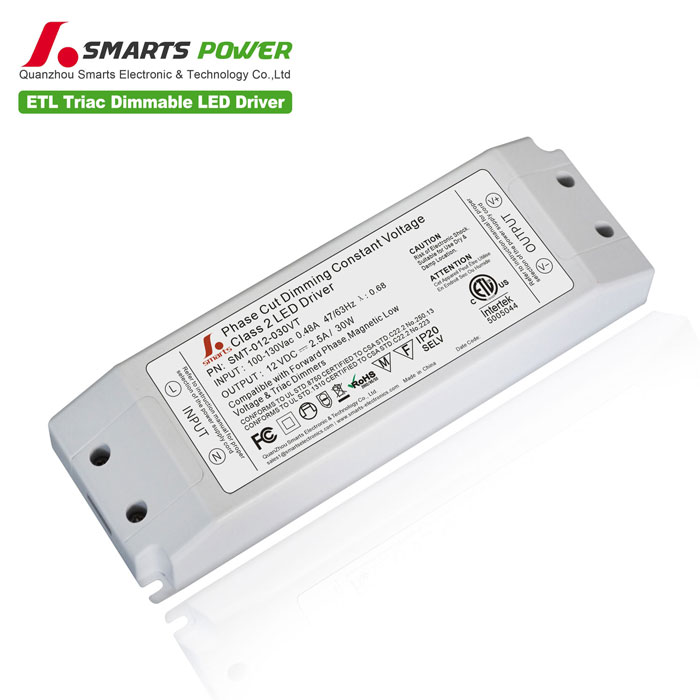

triac dimmable 30W 12V led driver, plastic shell design, waterproof grade ip20, suitable for indoor lighting project installation, UL certified, in compliance with global lighting safety regulations, 5-year warranty


Mode:SMT-012-030VT

intput voltage:100-130vac

Size : 155*54*20mm
output voltage:12vdc
Weight:0.25Kg/pcs
