Non-dimmable LED Driver

UL 250W 12V LED Driver for LED STrip Lights

Our 277VAC Dimmale & non-dimmable 250w led driver are easy to integrate into any application or design.
  • item no.:

    SMT-012-250V WN
  • lead time:

    About 7 days for samples
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    T/T, Paypal, Western Union, Creadit Card
  • price:

    $45/50
  • color:

    Blue
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12VDC
  • Output Current:

    20.83A
  • Working Mode:

    Constant Volatge
  • Certification:

    UL/cUL CE Rohs
  • Warranty:

    7 Years
inquiry now
product details

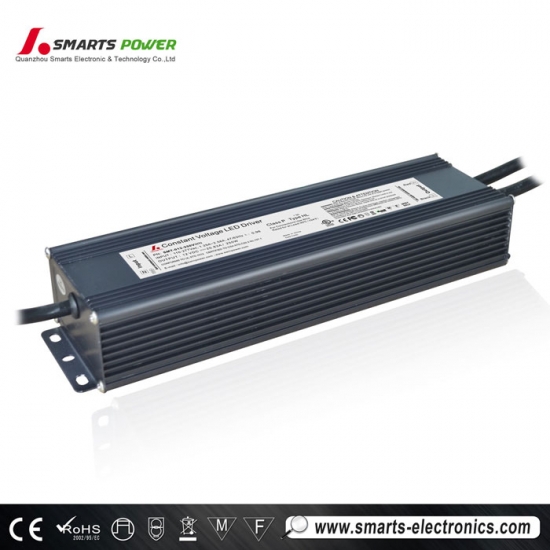

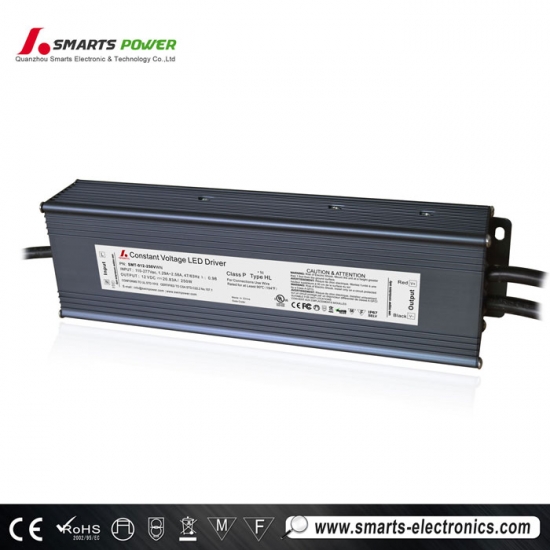

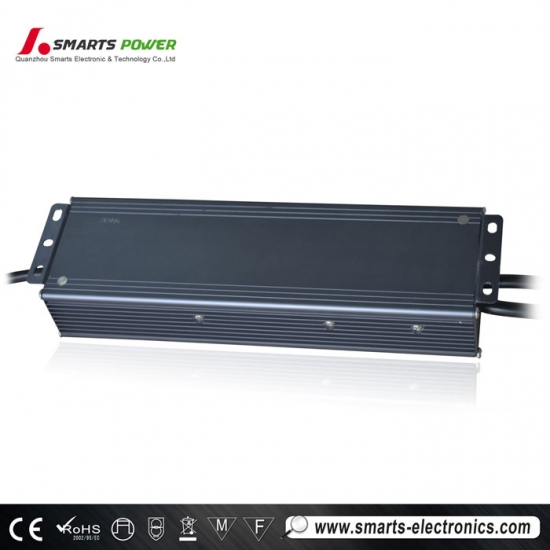

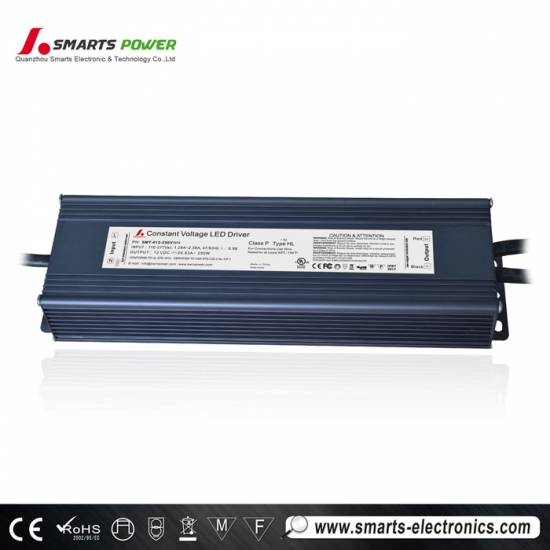

UL 250W 12V LED Driver for LED STrip Lights

Our 277VAC Dimmale & non-dimmable 250w led driver are easy to integrate into any application or design



This line of Smarts Electronics’s led driver 12v dc is a highly affordable and reliable hard wired driver 12v led that you can safely put outdoors! It is your best option to power any LED Lights with its robust cover and waterproof connections and cables! It also includes an installation bracket on each side to allow screwing it to a wall for a sturdier installation.


Features for 250w led driver :
·Output constant voltage type
·Input voltage range 100-277VAC
·Built-in PFC function / PF>0.97 / E fficiency > 88%
·Protections:short circuit/over voltage/over heat
·IP67 design for indoor or outdoor installations
·Cooling by free air convection
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lightings.
·7 years warranty
·UL/cUL listed, Class P, Type HL approval


Specifications for LED Driver Power Supply:

Model

SMT-012-250V  WN

SMT-024-250V  WN

Output

DC Voltage

12V

24V

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Voltage Tolerance

±0.5V

Load Regulation

±2%

±1%

±1%



Rated current

20.83A

10.41A

Rated power

250W

Input

Voltage Range

100-277VAC

Frequency Range

4763HZ

Power FactorTyp.@ full load

0.98@120VAC  0.97@277VAC

0.98@120VAC  0.97@277VAC

THDTyp.@ full load

<20%

Inrush Current Typ.

20A, 50%, 1.4ms

Full Load

EfficiencyTyp.

>88%

>89%

AC CurrentTyp.

3.4A@110VAC

Leakage current

<0.50mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition

 is removed

Over load

≤120% constant current limiting, auto-recovery

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Over Current

≤1.4*I out

Environment

Working TEMP.

-40+60℃

Working Humidity

2090%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz 2G 10min./1 cycleperiod for 60min.each along X,

Y,Z axes







Safety&EMC

Safety standards

UL8750

Withstand voltage

I/P-O/P: 3.00KVAC

Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance to  FCC Part 15 B

EMC IMMUNITY

EN61000-4-2,3,4,5,6,11Surge 4KV

Others

Weight

1.75Kg

Size

276*78*47mm (L*W*H)

packaging

10PCS/CTN

385*335*200mm     20PCS/CTN

Notes

1. All parameters NOT specially mentioned are measured at 110V & 277VAC input , rated

  load and 25℃of ambient temperature.

2.Tolerance:includes set us tolerance,line regulation and load regulation.

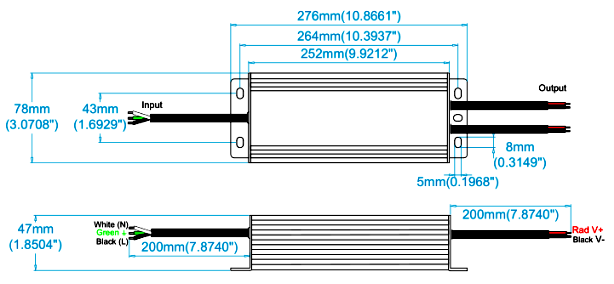

Mechanical Specification for led driver 12v dc :

led driver 12v dc

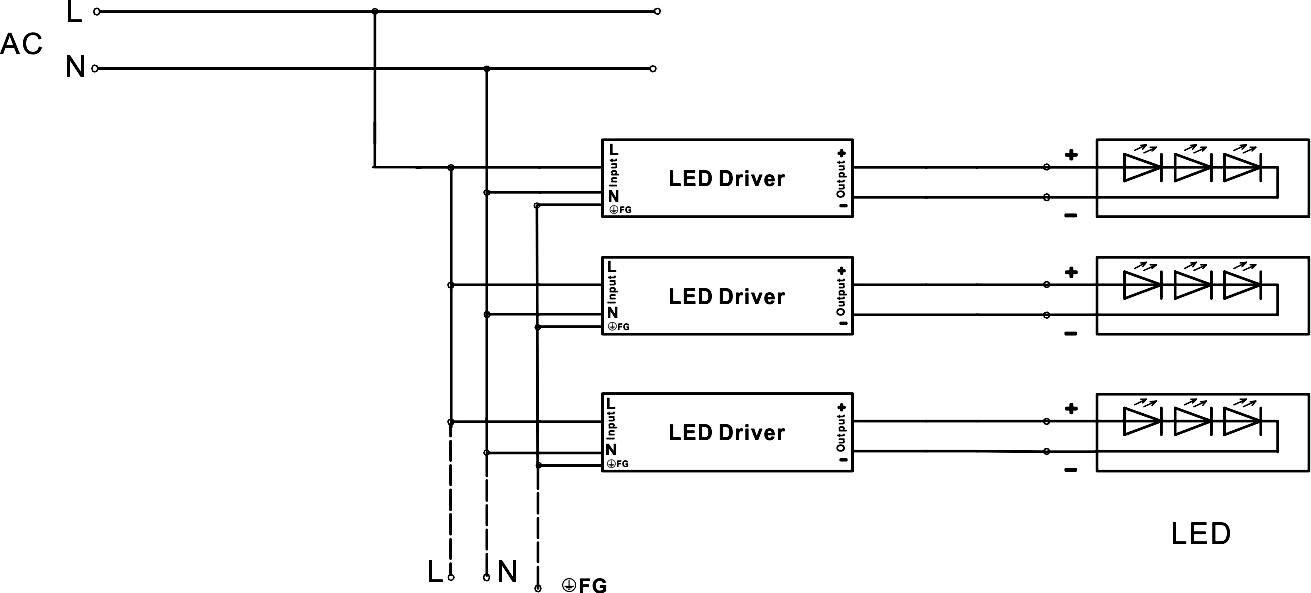

Connecting Diagram for driver 12v led:

led driver 12v dc




Product of choice for any lighting applications:

PENDANT

RECESSED

STRIPE/TAPE

UNDER-CABINET

LANDSCAPE

LINEAR

PANEL AND TUBE

HIGH AND LOW BAY
