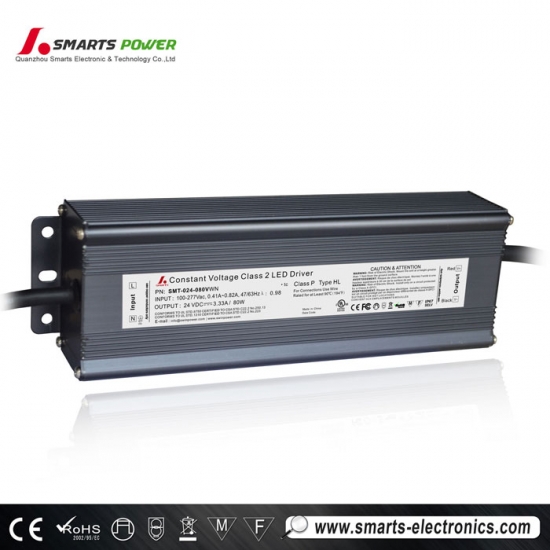

Specification
|
model |
SMT-024-080VWN |
|
|
Output |
DC Voltage |
24V |
|
Voltage Accuracy |
±0.5V |
|
|
Rated current |
3.33A |
|
|
Rated power |
80W |
|
|
Input |
Voltage Range |
100~277V AC |
|
Frequency Range |
47～63HZ |
|
|
Power Factor ( Typ.） |
0.99@120VAC 0.96@230VAC 0.97@277VAC |
|
|
Full Load Efficiency(Typ.) |
>82% |
|
|
THD(Typ.)@ full load |
<15%@120VAC <20%@230VAC <20%@277VAC |
|
|
AC Current（Typ.） |
1.2A/110VAC |
|
|
Inrush Current （Typ.） |
20A, 50%, 1.6ms |
|
|
Leakage current |
﹤0.5mA/110V |
|
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
|
|
Over Loading |
≤120% constant current limiting, auto-recovery |
|
|
Over voltage |
≦140VAC(90~135V) , ≦270VAC(170~265V) |
|
|
Environment |
Working TEMP. |
-40～+60℃ |
|
Working Humidity |
20～90%RH,non-condensing |
|
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
|
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
|
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes |
|
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
|
Withstand voltage |
I/P-O/P: 1.98KVAC |
|
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
|
|
EMC EMISSION |
FCC Part 15 B |
|
|
EMC IMMUNITY |
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547 Alight industry level （surge4KV） |
|
|
Others |
Net Weight |
1.1Kg |
|
Size |
230*70*46mm（L*W*H） |
|
|
packing |
329*279*176mm , 10PCS/ctn |
|
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . |
|
| Label |
 |
|
 |
 |
 |
 |

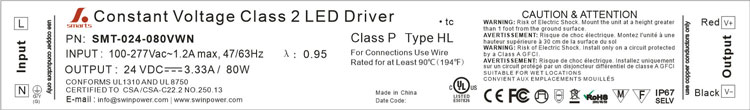

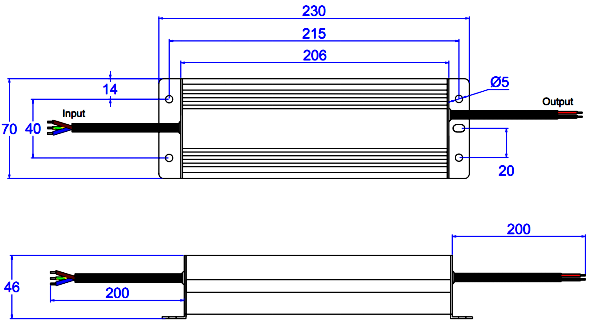

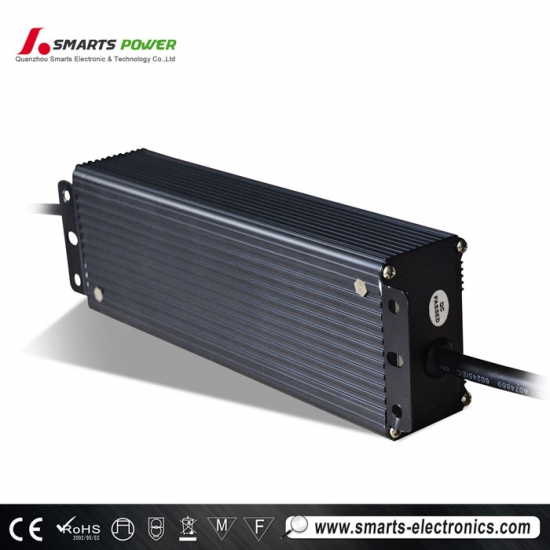

Mechanical Specification
Input power cord: AC (L), (N), and earth wire (G)
Output : 2*16AWG, Red to LED Positive side (+) , Black to LED Negative side (-).
Instruction
- This driver should be installed by qualified and professional person;
- Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.
- Ensure that wiring is correct before test in order to avoid light and power supply damage;
