Non-dimmable LED Driver

UL constant voltage led driver 26watt 30watt with junction box

Our constant voltage 30watt led driver have got UL, cUL listed, Class 2, Class P, Type HL.

  • item no.:

    SMT-024-030VWJ
  • lead time:

    7 woking days for samples
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    EXW
  • market price:

    $15.5
  • Input Voltage:

    100-277vac
  • Output Voltage:

    24vdc
  • Output Current:

    1.25A
  • Working Mode:

    constant voltage
  • Certification:

    CE UL FCC ROHS
  • Warranty:

    7 years
inquiry now
product details

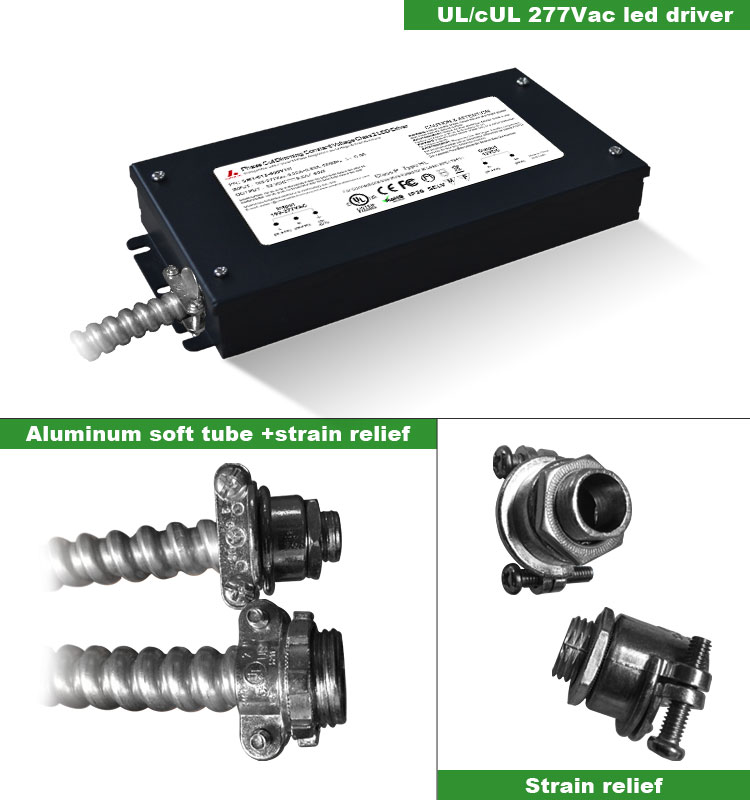

UL constant voltage led driver 26watt 30watt with junction box

  Introduction


Non-Dimmable Constant Voltatge 30watt Led Driver For Ceiling Down LED Panel Light Lamp Bulb 30W 60W 100W 120W 150W 200W.

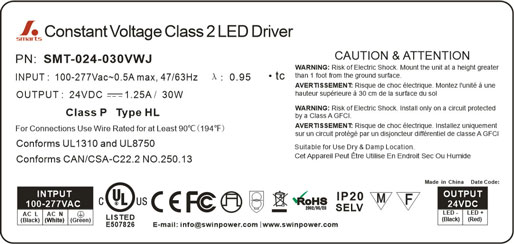

  Label


30w led driver


  Specification


model

SMT-012-030VWJ

SMT-024-030VWJ

Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

1.66Amp

0.83Amp

Rated power

30W

30W

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC

Frequency Range

47~63HZ

Power Factor ( Typ.)

0.99@120V ;0.98@230V ;0.98@277V

0.99@120V ; 0.98@230V ;0.96@277V

Full Load Efficiency(Typ.)

>87%

>88%

AC Current(Typ.)

0.51A/110VAC /  0.43A/277VAC

Leakage current

<0.27mA/110VAC;﹤0.25mA/277VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over Loading

≤120% shut down o/p voltage, re-power on to recover

Over temperature

100℃±10℃ shut down o/p voltage,automatically recover after cooling.



Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,,11, ,

Alight industry level

Others

Weight

0.95Kg

Size

165*92*26mm (L*W*H)

packing

355*215*215mm /10PCS/CTN



Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,

Rated load and 25℃of ambient temperature.

2.  Tolerance:includes set us tolerance,line regulation and load regulation .



Triac dimmable led driver
Dali dimmable led driver
0-10V led power supply
277v led driver


ul constant voltage led driver

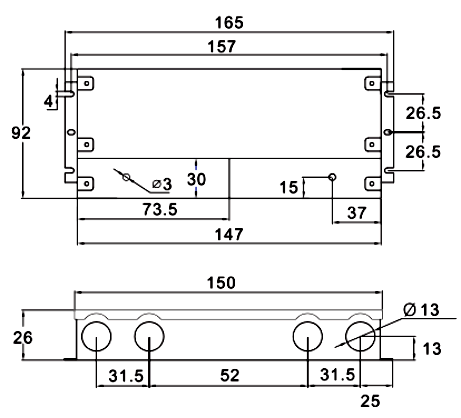

  Mechanical Specification



size for 30w led driver


Input power cord: 18AWG Black and White to be connected to AC L and N ,Green wire go ground

Output power cord: 16AWG, Red to LED Positive side (+) , Black to LED Negative side (-).


  Simple connection diagram
