Non-dimmable LED Driver

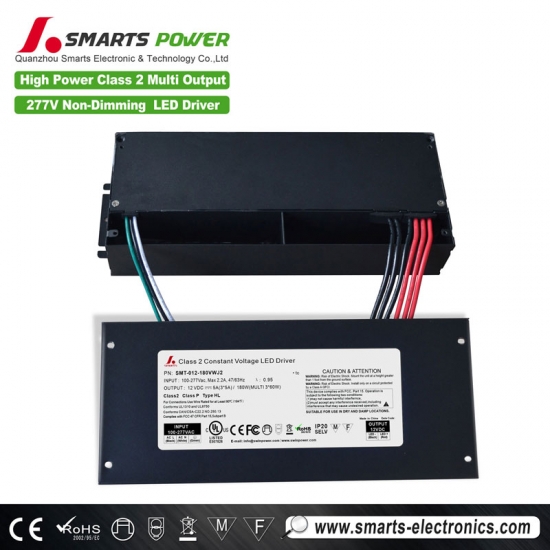

UL cUL certificated led driver high power 180w Class 2 12v 24v built in junction box

277v 110v led power supply owns a built-in junction box not only the input  but also the output. Confirms to UL safe standard.  Compared with most of the power supplies on the market like Meanwell, this driver is nothing short of great performance.
  • item no.:

    SMT-012-180VWJ2
  • brand:

    SMARTS
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12vdc 24vdc
  • Output Current:

    3*5A ; 2*4A
  • Working Mode:

    constant voltage
  • Certification:

    UL cUL
  • Warranty:

    7 years warranty
inquiry now
product details

UL cUL certificated led driver high power 180w Class 2 12v 24v built in junction box


This led power supply 12v is  Class 2 Class P type HL. You are free to choose a waterproof type for outdoor using or non waterproof type for indoors application. AQ lighting led strip lights is recommended.


  Specification



Model

SMT-012-180VWJ2 (1.0 version)

SMT-012-180VWJ2V2 (2.0 version)

SMT-012-180VWJ2WV2 (3.0 version)

SMT-024-192VWJ2(1.0 version)

SMT-024-192VWJ2V2 (2.0 version)

SMT-024-192VWJ2WV2 (3.0 version)

Output

DC Voltage

12V

24V

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Rated current

3*5A

2*4A

Rated power

180W(3*60W)

192W (2*96W)

Input

Voltage Range

100-277VAC

Frequency Range

47-63Hz

Power Factor(Typ.)@ full load

0.99@120VAC  0.94@277VAC

0.99@120VAC  0.94@277VAC

THD(Typ.)@ full load

<20%

<20%

Efficiency(Typ.)@ full load

87%@120V   89%@277VAC 79%

88%@120V   90%@277VAC

AC Current(Max.)

2.2A@100VAC

2.3A@100VAC

Inrush Current(Typ.)

19A ,50%,1.3ms @120VAC ; 38A,50%,960us @277VAC

12.4A (twidth=430us) @277VAC

Leakage current

<0.50mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover afterfault conditionisremoved

Over Loading

≤120%  Hiccup mode ,recovers automatically after fault condition is removed

Over temperature

100℃±10℃ shut down o/p voltage,automatically recover after cooling.

Environment

Working TEMP.

-40~+60℃ (see below derating curve)

Working Humidity

20~90%RH, non-condensing

Storage TEMP. Humidity

-40~+80℃,10~95%RH

TEMP .coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes



Safety& EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:1.88KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC 47 CFR Part 15 ,Subpart B

Others

Weight

2.0Kg (1.0 version)

Size

1.0 version:278*108*46mm  /  2.0 version:278*110*45mm

3.0 version:278*130*45mm

packaging

285*275*245mm/10pcs /CTN  /G.W.:22.10KG/CTN(1.0 version)

385*335*200mm     20PCS/CTN

Notes

1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.

2. To extend the driver's using life ,please reduce the loading at lower input voltage.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

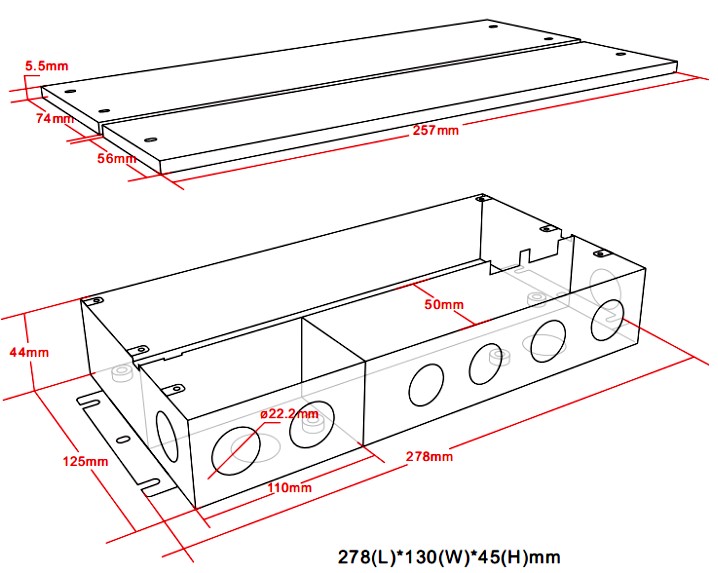

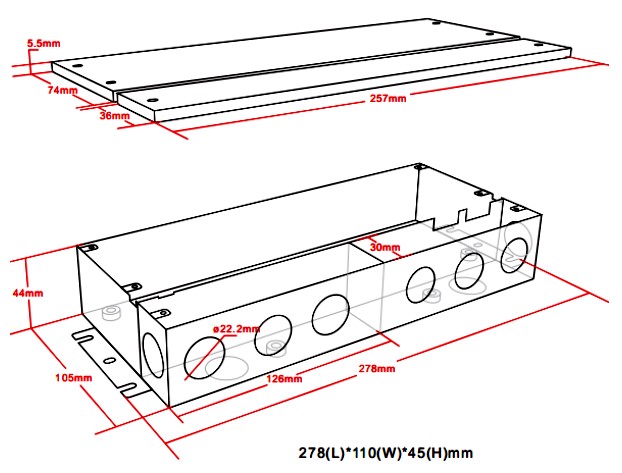

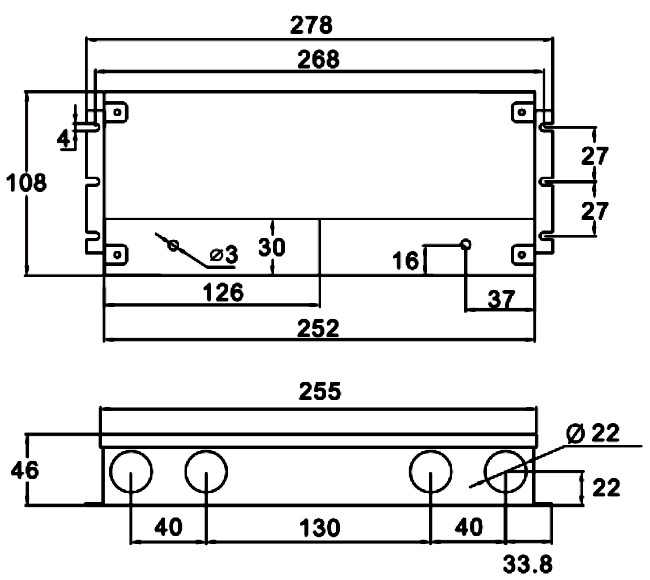

  Mechanical Specification



led power supply 12v

1.0 version: SMT-012-180VWJ2  /  SMT-024-192VWJ2





led power supply 12v

2.0 version: SMT-012-180VWJ2V2  /  SMT-024-192VWJ2V2



led power supply 12v

3.0 version: SMT-012-180VWJ2WV2  /  SMT-024-192VWJ2WV2



※Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,

※Output cable 2*16AWG,Red" (+) to LED Positive side (+) , "Black"(-)  to LED Negative side (-).

※Class 2 standard output terminal.Three groups of cables for SMT-012-180VWJ2, SMT-012-180VWJ2V2, SMT-012-180VWJ2WV2,;  Two groups for SMT-024-192VWJ2,SMT-024-192VWJ2V2,SMT-024-192VWJ2WV2

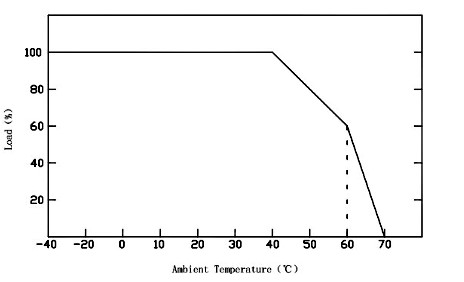

  ■Derating Curve


led power supply 12v

※To extend their life, please refer to the Derating Curve and derate according to the temperature.

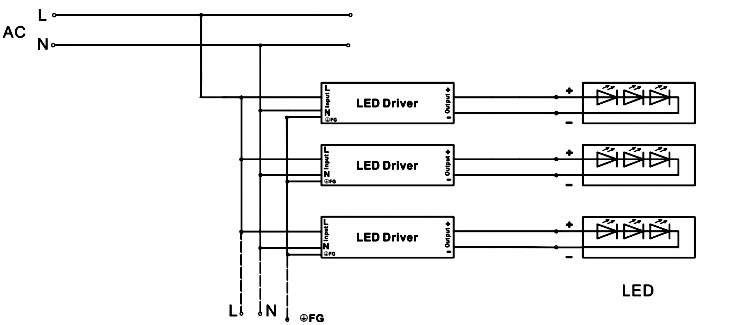

  ■ Connecting Diagram


led power supply 12v


  ■ Simple Connection Diagram:


led power supply 12v


  ■ Instruction:


※This driver should be installed by qualified and professional person;

※Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.

※Ensure that wiring is correct before test in order to avoid light and power supply damage;

※If the LED drivers do not work normally, pl. don’t maintain privately, but contact us: sales9@smartselectronics.com  Or take a phonecall: 0086-18016688251


  Compatible Dimmer Type


Smarts 180w led power supply without minimum Load requirement. Has multiple output 3*5A. Most 12v led lights are workable, such as klusdesign 12v led tape.

180w led power supply

  Related Products

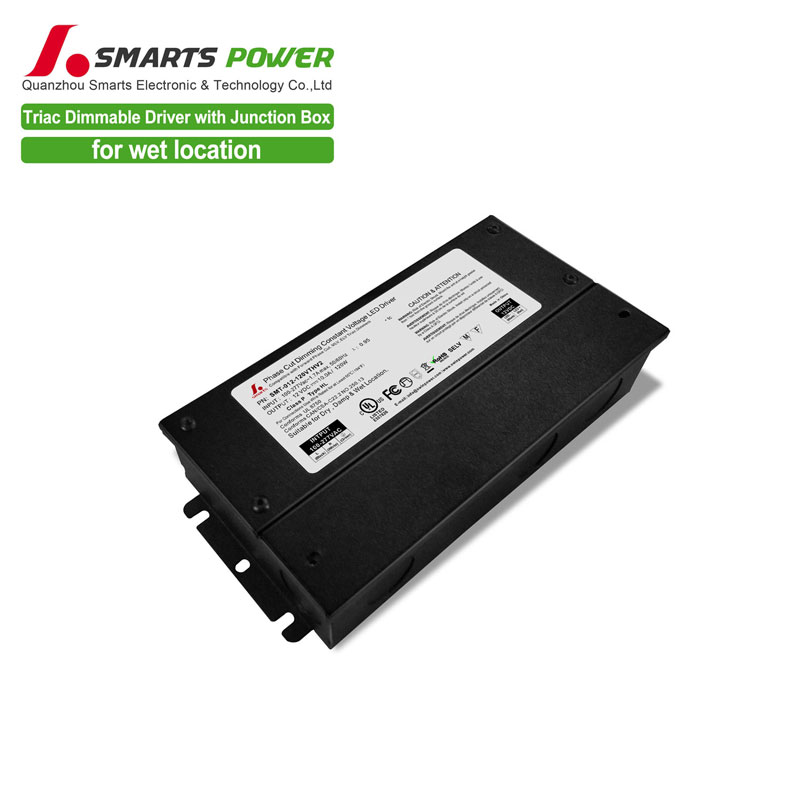

UL led driver power supply

This is abother type of UL led driver power supply with triac dimming mode.

The output power is 120watt. 12v 24v are both available.  7 years quality assurance.


Mode:SMT-012-120VTHV2
intput voltage:100~277VAC
Size :  220*94.5*40mm

Certificaiton: UL cUL

Weight:1.3kg/pcs
