Non-dimmable LED Driver

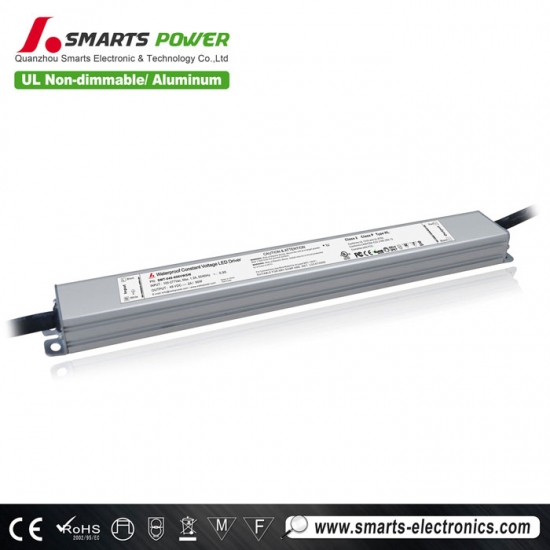

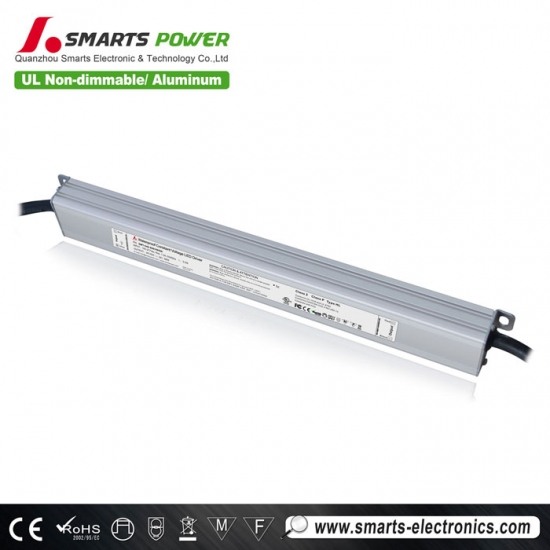

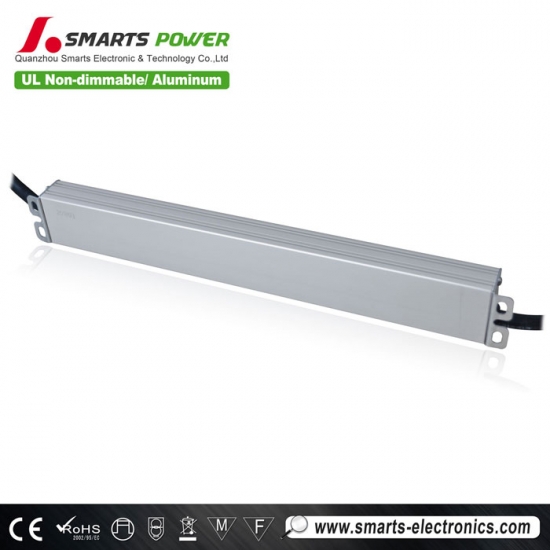

UL waterproof 48v 96w waterproof electronic led driver

There is non minimum load for this 48v 96w constant voltage led driver, you can connect any load between 1w to 96w.
  • item no.:

    SMT-048-096VWSW
  • lead time:

    4-7 working days for sample
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    xiamen
  • payment:

    EXW
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    48VDC
  • Output Current:

    2amp
  • Working Mode:

    constant voltage
  • Certification:

    UL,CE,ROHS
  • Warranty:

    7 years
inquiry now
product details

UL waterproof 48v 96w waterproof  electronic led driver


Class 2 SMART brand UL Recognized Constant Voltage LED Driver with a universal AC input of 100-2770VAC and a 48VDC output of 2amp 96 watts. An IP67 design for indoor dry or damp environment installations . Use this LED transformer to connect 48VDC LED Modules, LED Lights, LED Light Ribbons, RGB LED lighting and other LED Lighting products.


 Features


  • Output constant voltage type
  • Input voltage range 100-277VAC

  • UL/ cUL listed, Class 2, Class P, CE, ROHS approval

  • Built-in PFC function / Efficiency > 83% / PF> 0.99

  • Protections:short circuit/over voltage/over heat

  • Full protection aluminum housing, for dry, damp, wet location

  • Suitable for LED lighting and moving sign applications

  • Compliance to worldwide safety regulations for lighting

  • 7 years warranty


   Mechanical Specification






   Driver specification




Input Voltage Range
100-277VAC
Input Frequency
47-63Hz
Input Current

0.75A/100VAC  /  0.2A/277VAC


Inrush Current(Typ.


7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC;  12A,50%480us@277VAC


Leakage current


<0.5mA/110VAC; ﹤0.2mA/277VAC


Efficiency
>83%
Power Factor
>0.99
Output Voltage
48vdc
Output Current
1.25a

Voltage Regulation


±0.5%


Load Regulation


±1%


Over Current Protection
Yes
Over Voltage Protection
Yes
Over Temperature Protection
Yes
Over Load Protection
Yes
Short Circuit Protection
Yes
