Ultra slim 100w 160ma-1600ma DALI-2 D4I constant current led driver for led lights
Ultra slim 100w 160ma-1600ma DALI-2 D4I constant current led driver for led lights
Ultra slim 100w 160ma-1600ma DALI-2 D4I constant current led driver for led lights

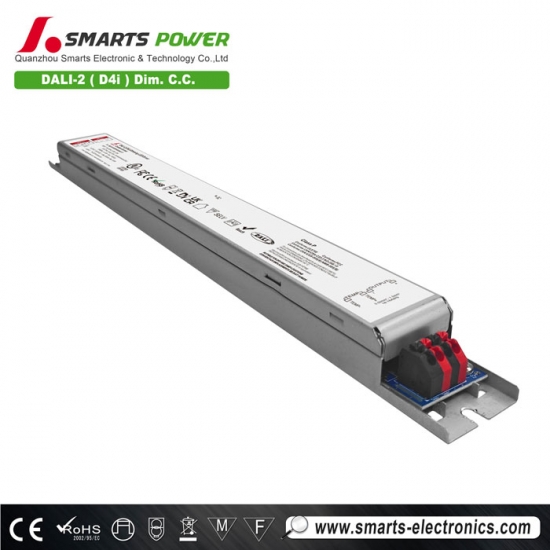

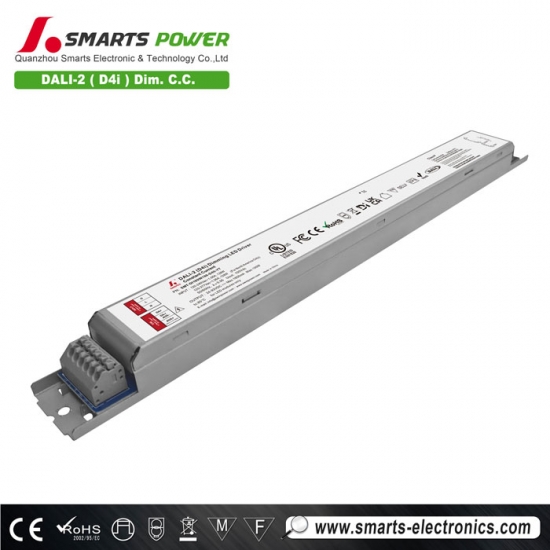

DALI-2 D4I dimmable led power supply has a full iron protective shell, good heat dissipation, and can be used in dry environment led lighting projects. Unique double-end press wiring function, more convenient and quick to install. Comply with global safety lighting regulations and have a 7-year warranty
Specification
| Model | SMT-DI100W160-D4II-YT | SMT-DI100W210-D4II-YT | |
| Certificate | UL/FCC/CE /ClassP/TYPE HL/SELV/ RoHS / Reach/ENEC/ICES/UKCA | ||
| Output | Rated current | 160mA-1600mA | 210mA-2100mA |
| DC Voltage | 24-93VDC | 12-54VDC | |
| Rated power | 100Wmax | ||
| Current Tolerance | Output current ± 30mA | ||
| Line Regulation | <0.1% | ||
| Load Regulation | <0.1% | ||
| Input | Voltage Range | 120-277VAC | |
| Frequency Range | 47 - 63Hz | ||
| Power Factor (Typ.) | >0.99@120VAC 60Hz >0.98@230VAC 50HZ >0.97@277VAC 60HZ | ||
| No load power (Max) | <2W | ||
| Standby power (Max) | <0.5W | ||
| THD(Typ.) @ full load | <5.5%@120VAC <9.5%@230VAC <10.5%@277VAC | ||
| Efficiency @ full load |
>89.8%@120VAC 60Hz >91.7%@230VAC 50HZ >91.3%@277VAC 60HZ |
>88.8%@120VAC 60Hz >90.7%@230VAC 50HZ >90.7%@277VAC 60HZ |
|
| AC Current (Max.) | <1A | ||
| Inrush Current (Typ.) |
23.2A,398us @50%Ipeak 120VAC 48.8A,171us @50%Ipeak 230VAC 58.7A,404us @50%Ipeak 277VAC |
24.8A,412us @50%Ipeak 120VAC 56.8A,120us @50%Ipeak 230VAC 68.4A,580us @50%Ipeak 277VAC |
|
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed | |
| Over voltage | Hiccup or constant power mode, reboots automatically after fault condition is removed | ||
| Over temperature |
Ambient temp. over 50± 5℃, output current will be reduced to 50%; The ambient temperature drops to 40℃ ±5℃and automatically recovers. Ambient temp.over 60± 5℃, output current will be reduced to 0%; The ambient temperature drops to 40℃ ±5℃and automatically recovers. |
||
| Environment | Working TEMP | -40~+45℃ (see below derating curve) | |
| Working Humidity | 20 -90%RH non-condensing | ||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH | ||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
| Vibration | 10~500Hz, 2G 12min./1 cycle, period for 72min. each along X,Y,Z axes | ||
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13(EU) & UL8750 (US) | |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||
| Strobe test standard | IEEE 1789 Flicker free | ||
| Surge Immunity Test | AC Power Line:Differential Mode 2 kV, Common Mode 4 kV | ||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH | ||
| EMC Emission | EN55015 EN61000-3-2,3(EU) & FCC Part15 Subpart B; ANSI C63.4:2014(US) | ||
| Others | Net Weight | 340g | |
| Dimension | 353*30*21.7mm (L*W*H) | ||
| Packing | 32*24.5*355 50pcs /CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at rated load and 25℃of ambient temperature. | ||
| 2. To extend the driver's using life, please reduce the loading at lower input voltage . | |||
| 3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10. | |||

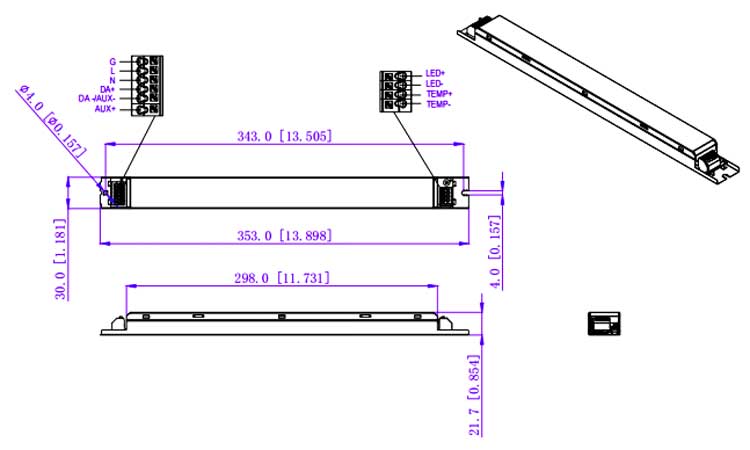

Mechanical Specification
MCB recommendation
| When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 6 |
| 13A | 8 | |
| 16A | 10 | |
| 20A | 12 | |
| 25A | 16 | |
| When the input voltage is 230Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 12 |
| 13A | 16 | |
| 16A | 20 | |
| 20A | 25 | |
| 25A | 31 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 14 |
| 13A | 19 | |
| 16A | 23 | |
| 20A | 29 | |
| 25A | 36 | |
Note：
1. The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50°C
2. The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic curve.

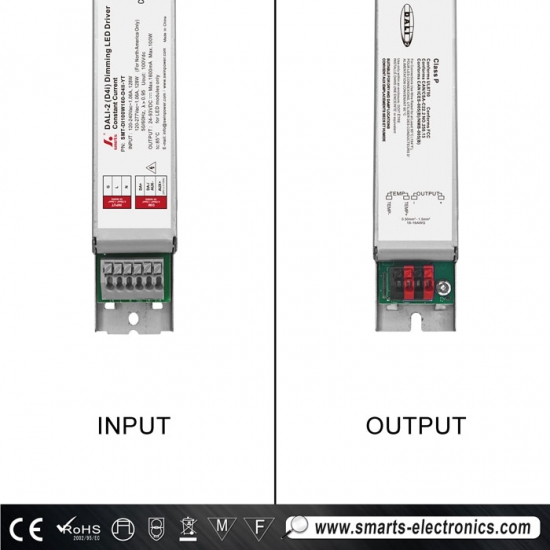

| Globle wire gauge | |
| LF10 | |
| Input wire and Dimming wire | Gray terminals 6P (0.2mm2-1.5mm2/24-16AWG) |
| Output wire and External temperature wire | Red/Black terminals 4P (0.2mm2-1.5mm2/24-16AWG) |
| Remarks:Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged. | |
Dimming Operation
Note：
1. When Turn on the internal DALI bus power.No need external bus power supply.
2. The model name SMT-DI100WXXX-D4II means that there is no auxiliary power supply and temperature control, so there is no corresponding wiring for the LED driver.
3. The model name SMT-DI100WXXX-D4II-Y means that there is an auxiliary power supply but no temperature control, so the LED driver has no temperature control wiring.
4. The model name SMT-DI100WXXX-D4II-T means that there is no auxiliary power supply but there is temperature control, so the LED driver has no auxiliary power wiring.
5. The model name SMT-DI100WXXX-D4II-YT means that there is an auxiliary power supply and temperature control.
NFC function：
ProNFC APP
NFC Handheld devices
IOS Download
Android Download
Adjust output current slightly by NFC
The output current can be read and written by a mobile with ProNFC APP or NFC handheld device (NFC read & write
device: NFC-RW) by close to the NFC signal area of the Dimmable LED driver.
Set Address easily by NFC
The address can be read and written by a mobile with Set NFC APP or NFC handheld device (NFC read & write
device:NFC-RW) by close to the NFC signal area of the Dimmable LED driver.

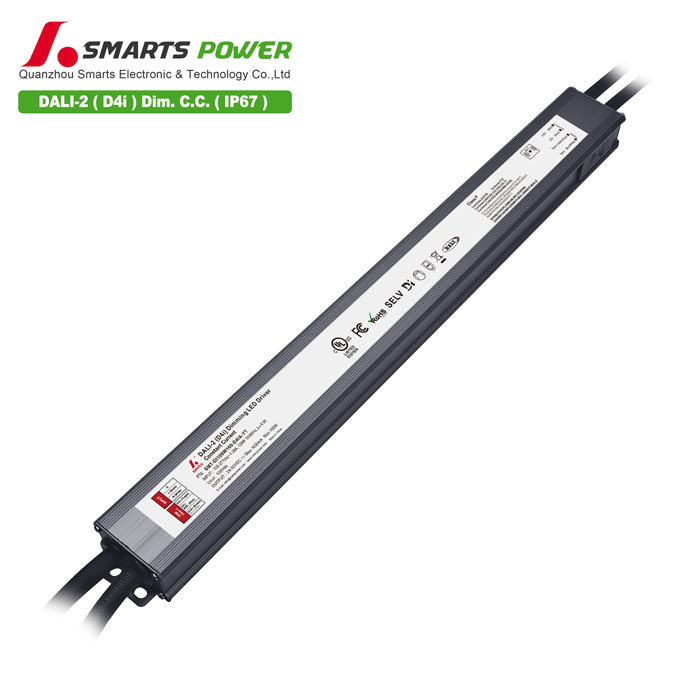

Related Products
|
