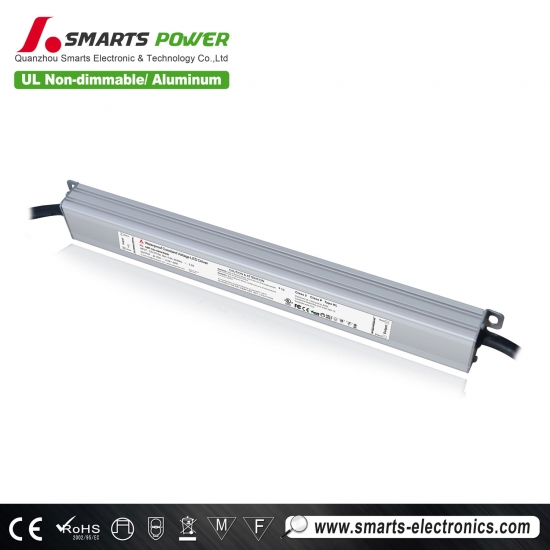

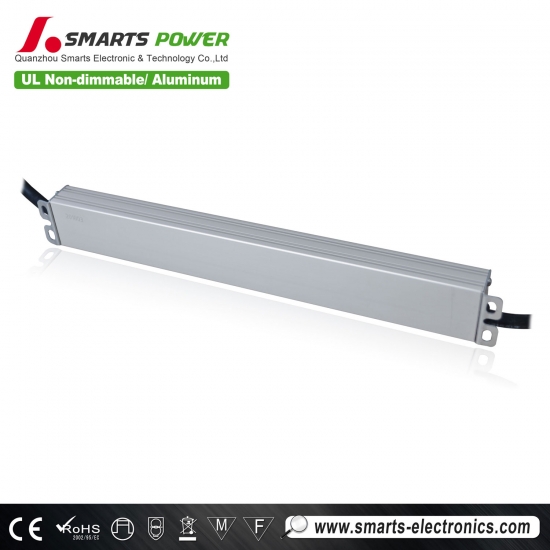

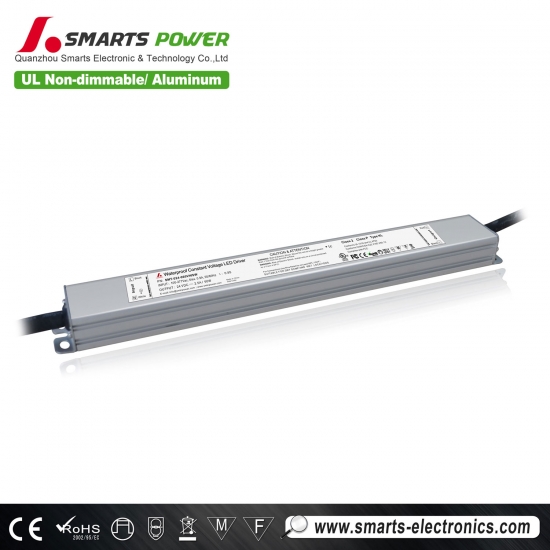

waterproof ip67 ultra slim 24vdc 60w led power supply
SMARTS has wattage of 30w, 36w, 60w, 96w non dimmable constant voltage ultra slim led driver 12vdc / 24vdc with UL CE listed now. They are all avaliable to be used in a input voltage of 110vac / 220vac or 277v ac commercial input voltage which is for USA / Europe LED lighting applications.
Features
- Output constant voltage
-
Input voltage range 100-277VAC
-
Protections:short circuit/over voltage/over heat
-
Cooling by free air convection
-
Full protection aluminum housing, for dry, damp, wet location
-
Suitable for LED lighting and moving sign applications
-
Compliance to worldwide safety regulations for lighting
-
7 years warranty
|
model |
SMT-012-060VWSW |
SMT-024-060VWSW |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
Voltage Accuracy |
±5% |
±5% |
|
|
Rated current |
5.0Amp |
2.5Amp |
|
|
Rated power |
60W |
60W |
|
|
Voltage Regulation |
±0.5% |
||
|
Load Regulation |
±1% ±1% |
||
|
Input |
Voltage Range |
100-277 VAC |
|
|
Frequency Range |
47~63HZ |
||
|
Power Factor ( Typ.) |
PF>0.99/110V ; PF>0.98/230V ; PF>0.97/277V |
||
|
Full Load Efficiency(Typ.) |
82%@120VAC ;84%@230VA ; 84%@ 277VAC |
84%@120VAC;86%@230VAC; 86%@ 277VAC |
|
|
AC Current(Typ.) |
0.75A/100VAC / 0.2A/277VAC |
||
|
Inrush Current(Typ.) |
7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC; 12A,50%480us@277VAC |
||
|
Leakage current |
<0.5mA/110VAC; <0.2mA/277VAC |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over Loading |
≤120% shut down o/p voltage, re-power on to recover |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
||
|
Environment |
Working TEMP. |
-40~+60℃ |
|
|
Working Humidity |
20~90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
||
|
TEMP.coefficient |
±0.03%/℃(0~50℃) |
||
|
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 |
|
|
Withstand voltage |
I/P-O/P: 3.75KVAC |
||
|
Isolation resistance |
I/P-O/P:100M Ohms/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
Compliance to EN55015,EN61000-3-2 (≥60%load) |
||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry |
||
|
Others |
Weight |
0.45Kg |
|
|

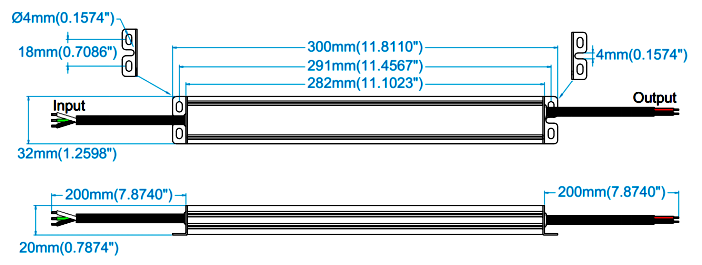

Size |
300*32*20mm (L*W*H) |
||
|
packing |
50PCS/CTN |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , Rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . 3. The led downlight power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufacturesmust be-qualify EMC Directive on the complete installation again. |
||
| Label |
|
||
 |
 |
 |
 |
