Non-dimmable LED Driver

Wifi smarts dimmable led drivers 12VDC 60W with 1 channel

12vdc 60w wifi electronic dimmable led driver could be considered as a component that will be operated in combination with final Equipment with GE Lighting.

  • item no.:

    SMT-W-12060-1C-P
  • brand:

    SMARTS
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12vdc
  • Output Current:

    5A
  • Working Mode:

    Constant voltage
  • Certification:

    CE UL ROHS
  • Warranty:

    7 years
inquiry now
product details

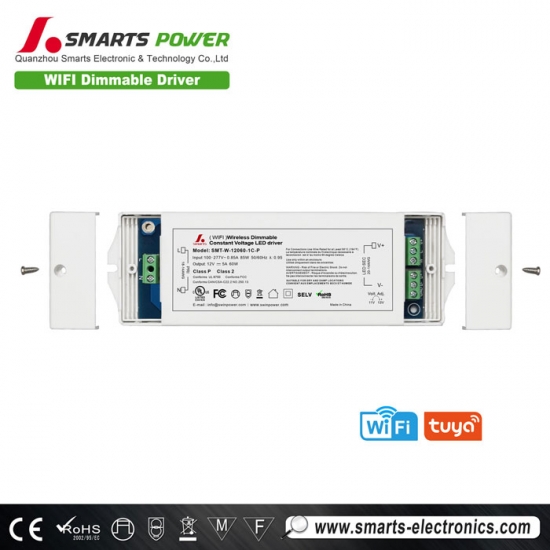

Wifi smarts dimmable led drivers 12VDC 60W with 1 channel


The 12v led transformer dimmable is the type for WIFI wireless dim., which can be controller by Mobile App or Smart speaker, like Google home or Amazon echo.


  Specification


Model

SMT-W-12060-YC-P

SMT-W-24060-YC-P

Y=1 , 2,  3,  4,  5 for DIM (DW);  CCT(TW);  RGB;  RGBW;  RGBW+CCT

Output

DC Adj. Voltage Range

12V

24V

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Rated current

CH1+CH2+CH3+CH4+CH5=5A

CH1+CH2+CH3+CH4+CH5=2.5A

Rated power

60W

Load Regulation

±2%

Input

Voltage Range

100-277VAC

Frequency Range

47 - 63Hz

Power Factor(Typ.)@ full load

PF≥0.95/ 230VAC  (Full loading)

THD(Typ.)@ full load

<15%

Efficiency(Typ.)@ full load

87% @230VAC

88%@230VAC

AC Current(Max.)

0.72A

0.72A

Inrush Current (Typ.)

45A  (Twidth 145us measured at 50% I peak, COLD START, 230VAC)

Leakage current

<0.5mA

Protection

Short Circuit

Hiccup mode, recover automatically after fault condition is removed

Over Load

≤120% ,hiccup mode, recover automatically after fault condition is removed

Over temperature

≤100℃±10℃, shutdown output voltage, recover automatically after temperature drop

Protection Class

II

Environment

Working TEMP.

-40~+60℃ (see below derating curve)

Working Humidity

20 - 90%RH ,non-condensing

Storage TEM.,Humidity

-40 - +80℃,10 - 95%RH

TEMP.coefficient

±0.03%/℃(0 - 50℃)

Vibration

10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes





Safety&EMC

Safety standards

EN61347-1   EN61347-2-13 (EU)   &  UL8750  UL1310 (US)

Withstand voltage

I/P-O/P:3.75KVAC (EU) &  I/P-O/P:1.5KVAC (US)

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC Emission

EN55015   EN61000-3-2  EN61000-3-3 (EU)  &  FCC Part 15 B (US)

EMC Immunity

EN61000-4-2,3,4,5,6,11      EN61547

Others

Net Weight

0.40KG

Dimension

192.5*62*24mm (L*W*H)

packing

195*65*28mm /1PC/box   280*210*160mm/20PCS/CTN   G.W.:8.3KG/CTN

Notes

1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.

2. Tolerance: includes set up tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since

EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify

EMC Directive on the complete installation again.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

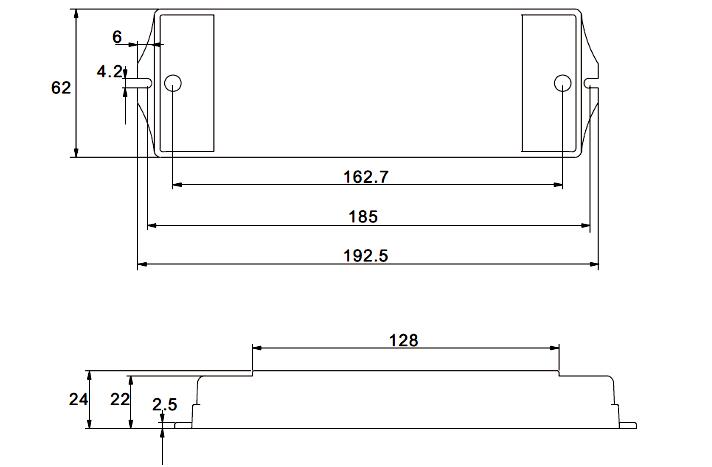

  Mechanical Specification


led dimmable power supply




Input terminal with 3P;  Live Wire(L)  , Neutral Wire (N)  . Note: vacant for middle terminal

Suggested wire diameter:  Primary  0.75-2.5mm² (18-14 AWG);  Secondary  0.5-2.5mm² (20-14 AWG)

※Output terminals with 6P;  LED SEC positive (LED+), LED negative (LED-). Connected to LED light; Common anode design

2P for DIM (DW) dimming;

3P for CCT (TW) dimming;

4P for RGB dimming;

5P for RGBW dimming;

6P for RGB+CCT dimming.



  Dimming operation

12v led transformer dimmable

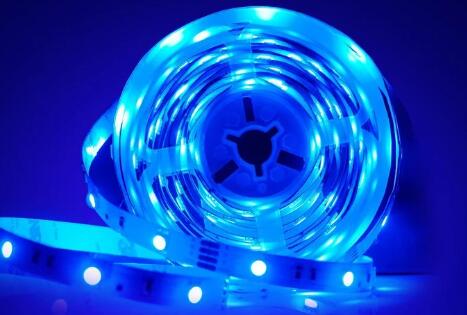

  Compatible with Smarts Strip light


You can adjust the room color and color temperature through the mobile app and smart led driver; you can also connect all lumary products in series at the same time to command them with one click.

led dimmable power supply




  Related Products

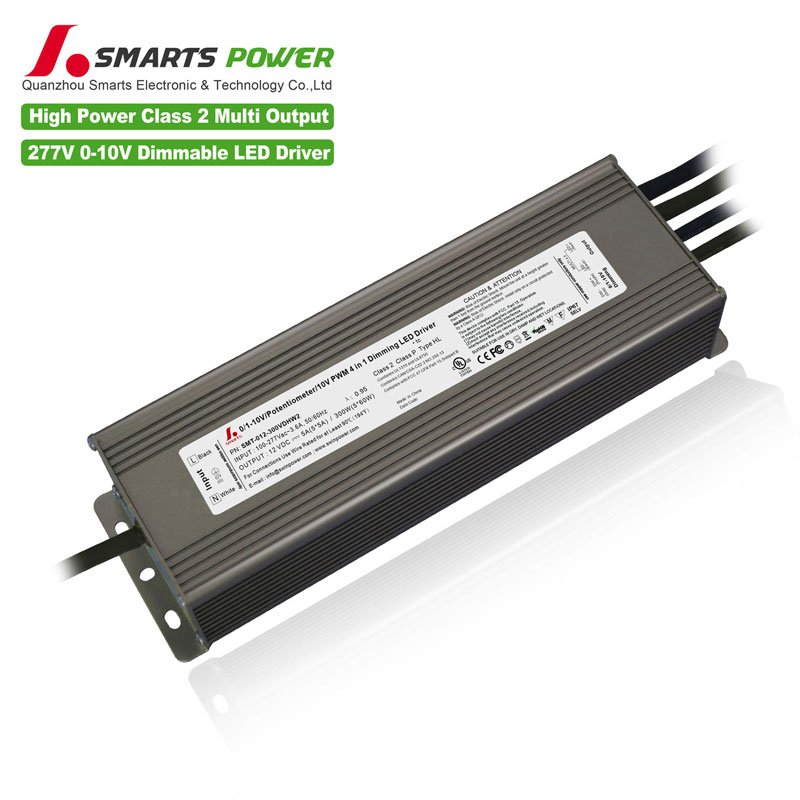

class 2 dimmable led driverIt is always to make the class 2 dimmable led driver in your LED lighting like 0-10v dimmable type lighting. It is more smooth dimming and effective for your lighting solution.
