Non-dimmable LED Driver

UL listed 12v 100w led strip light driver for smarts LED strips

The wifi dimmable led driver, lighting transformer 12v are compatible with Alexa, Google home.

  • item no.:

    SMT-W-12100-1C-A
  • brand:

    SMARTS
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12vdc
  • Output Current:

    8.33A
  • Working Mode:

    Constant voltage
  • Certification:

    CE UL ROHS
  • Warranty:

    7 years
inquiry now
product details

UL listed 12v 100w led strip light driver for smarts LED strips


Using our led drivers 12v to get hands-free home monitoring at the sound of your voice. Voice control your strip light by speaking to Alexa, you can turn on/off, change the color, dim/brighten the light.


  Specification


Model

SMT-W-12100-YC-A

SMT-W-24100-YC-A

Y=1 , 2,  3,  4,  5 for DIM (DW);  CCT(TW);  RGB;  RGBW;  RGBW+CCT (RGBCW)

Output

DC Voltage

12V

24V

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Rated current

CH1+CH2+CH3+CH4+CH5=8.3A

CH1+CH2+CH3+CH4+CH5=4.17A

Rated power

100W

Load Regulation

±2%

Input

Voltage Range

100-277VAC

Frequency Range

47 - 63Hz

Power Factor(Typ.)@ full load

PF≥0.98/ 230VAC  (Full loading)

THD(Typ.)@ full load

<15%

Efficiency(Typ.)@ full load

89% @230VAC

89%@230VAC

AC Current(Max.)

1.25A

1.25A

Inrush Current (Typ.)

53A  (Twidth 250us measured at 50% I peak, COLD START, 230VAC)

Leakage current

<0.5mA

Protection

Short Circuit

Hiccup mode, recover automatically after fault condition is removed

Over Load

≤120% ,hiccup mode, recover automatically after fault condition is removed

Over temperature

≤100℃±10℃, shutdown output voltage, recover automatically after temperature drop

Protection Class

II

Environment

Working TEMP.

-40~+60℃ (see below derating curve)

Working Humidity

20 - 95%RH ,non-condensing

Storage TEM.,Humidity

-40 - +80℃,10 - 95%RH

TEMP.coefficient

±0.03%/℃(0 - 50℃)

Vibration

10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety & EMC

Safety standards

EN61347-1   EN61347-2-13 (EU)   &  UL8750  UL1310 (US)

Withstand voltage

I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC (EU) & I/P-O/P:1.5KVAC(US)

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC Emission

EN55015   EN61000-3-2  EN61000-3-3 (EU)  &  FCC Part 15 B (US)

EMC Immunity

EN61000-4-2,3,4,5,6,11      EN61547

Others

Net Weight

0.90KG

Dimension

200*70*43mm (L*W*H)

packing

340*275*170mm/10PCS/CTN    G.W.:11.3KG/CTN

Notes

1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.

2. Tolerance: includes set up tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  Mechanical Specification


led driver 12v ip67

Input terminal with 3P;  Live Wire(L)  , Neutral Wire (N)  . Note: vacant for middle terminal

Suggested wire diameter:  Primary  0.75-2.5mm² (18-14 AWG);  Secondary  0.5-2.5mm² (20-14 AWG)

※Output terminals with 6P;  LED SEC positive (LED+), LED negative (LED-). Connected to LED light; Common anode design

2P for DIM (DW) dimming;

3P for CCT (TW) dimming;

4P for RGB dimming;

5P for RGBW dimming;

6P for RGB+CCT dimming.


  Dimming operation

waterproof electronic led driver 12v 100w

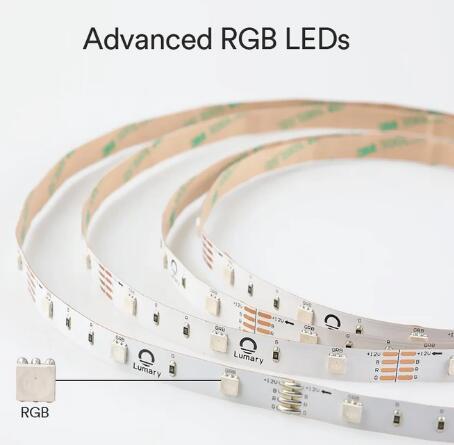

  Compatible with RGB LEDs


Customize your lighting with the choice of 12v led strip light driver and control brightness. Just DIY your room with your favorite colors!

 12v led strip light driver




  Related Products

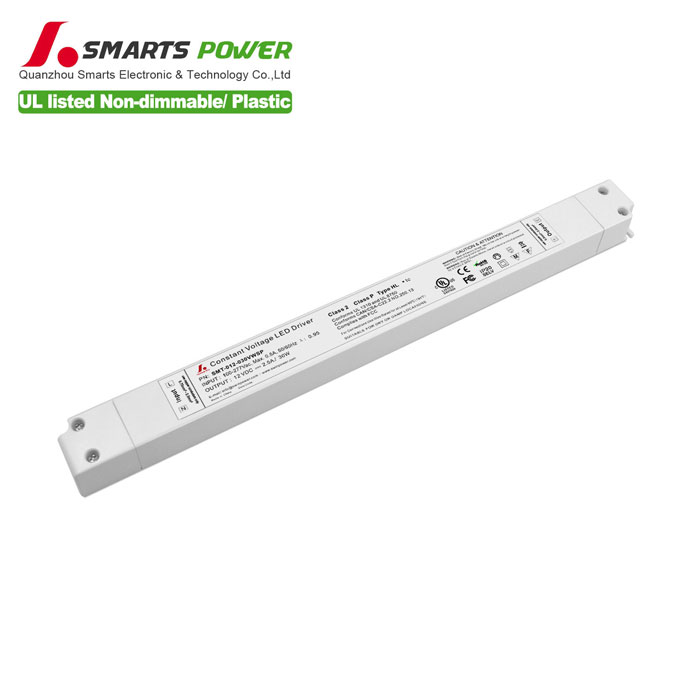

12V 30W slim LED driver It can decorate your bedroom, ceiling, stairs, kitchen cabinet, porch, desk, and living room, especially great for holidays like Christmas, Halloween, Parties etc with our 12vdc 30w slim led driver.
