12v class 2 led power supply 120W WIFI dimmable led driver

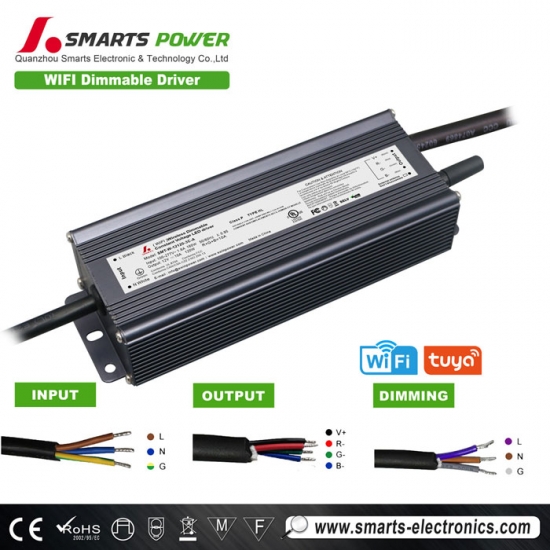

12v class 2 led power supply 120W 2 channels WIFI wireless led driver that comes in a metal-case and features an active PFC. This high efficiency power supply is a type HL LED driver for use in Class I, Division 2 hazardous location luminaires and is ideal for ATEA Lighting outdoor floodlighting and bay lightingetc...
Product parameters
Model
SMT-W-12120-YC-A
SMT-W-24120-YC-A
Y=1 , 2, 3, 4, 5 for DIM (DW); CCT(TW); RGB; RGBW; RGBW+CCT (RGBCW)
Output
DC Voltage
12V
24V
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Rated current
CH1+CH2+CH3+CH4+CH5=8.3A
CH1+CH2+CH3+CH4+CH5=4.17A
Rated power
120W
Load Regulation
±2%
Input
Voltage Range
100-277VAC
Frequency Range
47 - 63Hz
Power Factor（Typ.）@ full load
PF≥0.98/ 230VAC (Full loading)
THD（Typ.）@ full load
<15%
Efficiency（Typ.）@ full load
89% @230VAC
89%@230VAC
AC Current（Max.）
1.25A
1.25A
Inrush Current （Typ.）
53A (Twidth 250us measured at 50% I peak, COLD START, 230VAC)
Leakage current
<0.5mA
Protection
Short Circuit
Hiccup mode, recover automatically after fault condition is removed
Over Load
≤120% ,hiccup mode, recover automatically after fault condition is removed
Over temperature
≤100℃±10℃, shutdown output voltage, recover automatically after temperature drop
Protection Class
II
Environment
Working TEMP.
-40～+60℃ (see below derating curve)
Working Humidity
20 - 95%RH ,non-condensing
Storage TEM.,Humidity
-40 - +80℃，10 - 95%RH
TEMP.coefficient
±0.03%/℃（0 - 50℃）
Vibration
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety & EMC
Safety standards
EN61347-1 EN61347-2-13 (EU) & UL8750 UL1310 (US)
Withstand voltage
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC (EU) & I/P-O/P:1.5KVAC(US)
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC Emission
EN55015 EN61000-3-2 EN61000-3-3 (EU) & FCC Part 15 B (US)
EMC Immunity
EN61000-4-2,3,4,5,6,11 EN61547
Others
Net Weight
0.90KG
Dimension
200*70*43mm (L*W*H)
packing
340*275*170mm/10PCS/CTN G.W.:11.3KG/CTN
Notes
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
Mechanical Specification
Input Rubber cable 3*1.0mm²(VDE approval), the Y/G cable connect with (FG) , Brown with AC (L), Blue with AC(N) (EU)
Input SJOW Rubber cable 3*18AWG (UL approval), the green cable connect with (FG) ,Black with AC (L), White with AC(N) (US)
Dimming cable Purple (D+), Brown (D-) and Gray (GND) connect to DMX dimmer / system.
Output cable to be connected to LED Light;
DIM (DW) dimming: Rubber cable
Black is output ( V+) Positive, White is output (V-) negative
CCT (TW) dimming: 1015 electronic cable , (V+) 16AWG; (V-) 18AWG
Black is output ( V+) Positive, While (CW-) and Yellow (WW-) are output (V-) negative
RGB dimming: 1015 electronic cable , (V+) 16AWG; (V-) 18AWG
Black is output ( V+) Positive, Red (R-), Green (G-) and Blue (B-) are output (V-) negative
RGBW dimming:1015 electronic cable , (V+) 16AWG; (V-) 18AWG
Black is output ( V+) Positive, Red (R-), Green (G-) ,Blue (B-) , White (W-) are output (V-) negative
RGB+CCT dimming: 1015 electronic cable , (V+) 16AWG; (V-) 18AWG
Black is output ( V+) Positive, Red (R-), Green (G-) ,Blue (B-) , White (CW-) and Yellow (WW-) are output (V-) negative.;
Compatible Strip LED Light Type
USTO strip light with strong self-adhesive tape, flexible to install anywhere you want. Adjust the lengths along the cutting marks every 3 leds by requirement, you can use gapless connectors to connect the cutting pieces with other strip lights, According to wake-up time and sleeping time, turn on/off the lights strip automatically after be setted with dimmable led drivers 12v.
