Non-dimmable LED Driver

110V/ 220v 12v 0-10V dimming Constant Voltage LED Driver Power Supply

SMT-012-045VD is the 0/1-10V Potentiometer/10V PWM(3 in 1) dimmable Constant voltage 45w 12v ac-dc constant voltage led driver (IP67)
  • item no.:

    SMT-012-045VD
  • brand:

    SMARTS
  • Input Voltage:

    100-265vac
  • Output Voltage:

    12v & 24v dc
  • Output Current:

    3.75A
  • Working Mode:

    Constant Voltage
  • Certification:

    ETL/cETL FCC CE Rohs
  • Warranty:

    3 years warranty
inquiry now download
product details

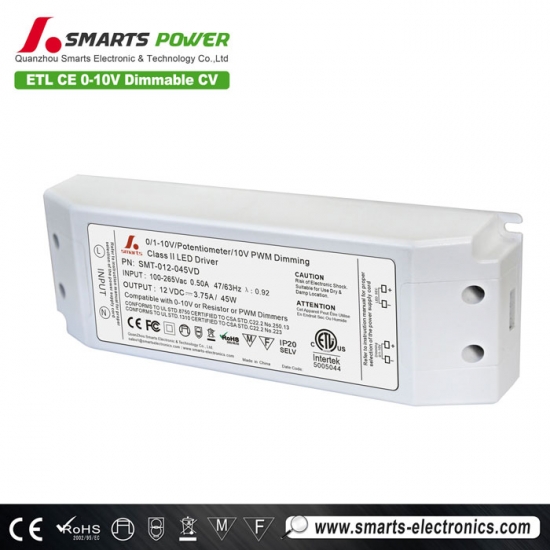

110V/ 220V 12v 0-10V dimming Constant Voltage LED Driver Power Supply



SMT-012-045VD is the 0/1-10V Potentiometer/10V PWM(3 in 1) dimmable Constant voltage 45w 12v ac-dc constant voltage led driver (IP67). No flicker issue. 3 years warranty. We promise to replace a new one if any defective happened during the warranty time.



Model

SMT-012-045VD

SMT-024-045VD

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

Rated current

03.75A

01.87A

Rated power

45W

Input

Voltage Range

100130VAC, 170~265VAC

Frequency Range

4763HZ

Power Factor ( Typ.

PF0.90/110V / PF0.90/220V

Full Load EfficiencyTyp.

>88%110V/ >88%220V

>88%110V/ >88%220V

AC CurrentTyp.

      0.52A@110V

       0.26A@220V

Leakage current

0.35mA/120VAC / 0.7mA/220VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over Current

1.4*Iout

Over temperature

100±10 shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40+50

Working Humidity

2095%RH,non-condensing

Storage TEM.,Humidity

-40+801095%RH

TEMP.coefficient

±0.03%/050

Vibration

10500Hz5G 12min./1 cycleperiod for 72min.each along X,Y,Z axes

Safety&EMC

Safety standards

EN61347-1 EN61347-2-13

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG100MΩ/500VDC/25/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (50%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level surge4KV

Others

Weight

0.4Kg

Size

180*60*35mmL*W*H

packing

355*215*215mm/20pcs /CTN   185*65*45mm for inner box

Notes

1. All parameters NOT specially mentioned are measured at 110V~220VAC input , rated load and 25of ambient temperature.

2.  Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3.  Tolerance:includes set us tolerance,line regulation and load regulation .

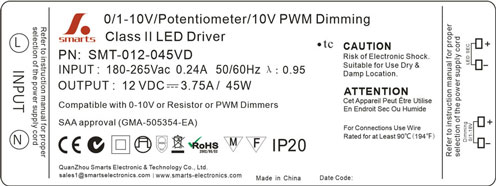

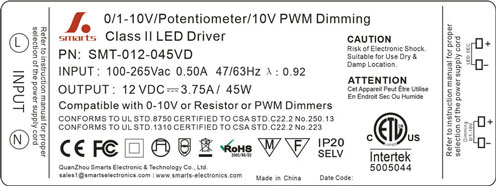

  label

led driver 45w

0-10V dimming Constant Voltage LED Driver Power Supply

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  • Input voltage: 100-265V AC 50/60Hz, Output voltage: 12V DC Constant Voltage, 45 watts, 3.75A Max
  • 0 to 100% Smooth and reliable dimming  with no flicker
  • Over-current, over-temperature protection, Output short-circuit

  Features of 0-10v dimming led driver


  • Range 100~265VAC
  • Output constant voltage
  • Built-in PFC function / PF>0.9
  • Efficiency >86%
  • Protections:short circuit/over current
  • Cooling by free air convection
  • IP20 design for indoor installation .
  • Dimming function:0-10V/ 1-10V/ 10V PWM or potentiometer.
  • Dimming range:0-100%
  • Suitable for LED lighting and moving sign applications with dimming
  • Compliance to worldwide safety regulations for lighting

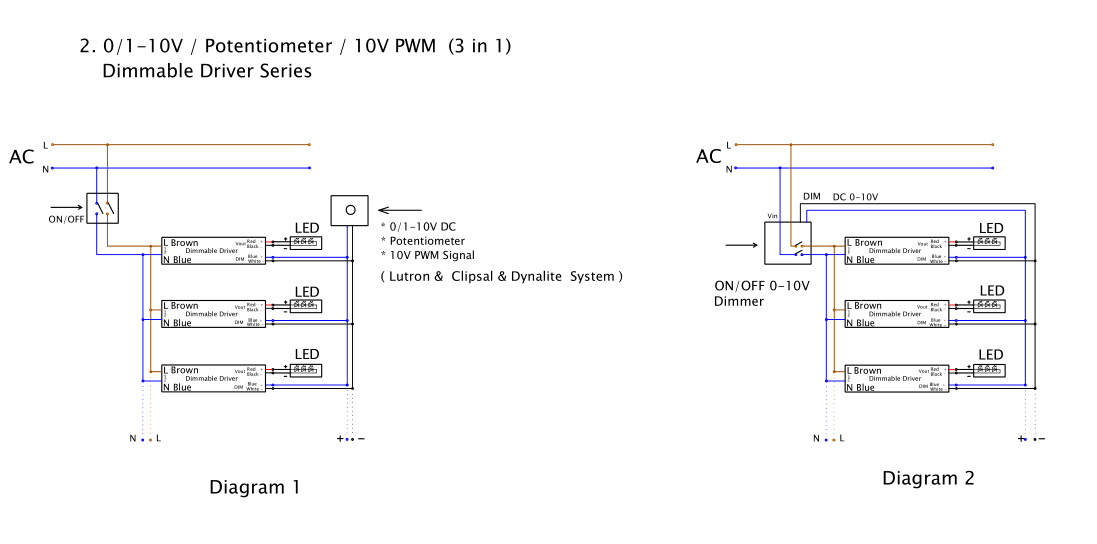

 0/1-10V / Potentiometer / 10V PWM (3 in 1) Connection drawing



 Mechanical Specification of 220v ac to 12v dc led driver


0-10v dimming led driver

  • Input with Live Wire(L)  Neutral Wire (N)
  • Signal Dimming (0/1-10V)(DIM+), (DIM-)
  • Output LED SEC (LED+),(LED-)

A specialized manufacturer of Dimmable Constant Voltage LED Driver in China. Welcome to visit our website to browse more LED Drivers.
