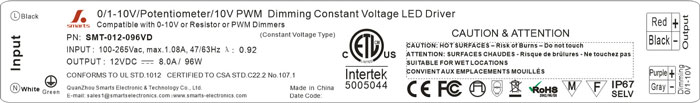

110v to 12v 100w 0-10v dimmable waterproof led driver

Model

SMT-012-096VD

SMT-024-096VD

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

Rated current

0-8.0A

0-4.0A

Rated power

96W

96W

Ripple&noise Max.

200mVp-p

350mVp-p

250mVp-p

400mVp-p

Input

Voltage Range

100～130VAC, 170~265VAC

Frequency Range

47～63HZ

Power Factor ( Typ.）

>0.90

>0.90

Full Load Efficiency（Typ.）

>88%

>88%

AC Current（Typ.）

1.010A/120VAC 0.713A/170VAC  0.550A/220VAC  0.457A/265VAC

Leakage current

﹤0.25mA/110V,220VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over voltage

≦280VAC

Over temperature

100℃±10℃  shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40～+60℃

Working Humidity

20～95%RH,non-condensing

Storage TEM.,Humidity

-40～+80℃，10～95%RH

TEMP.coefficient

±0.03%/℃（0～50℃）

Vibration

10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-2-13.IP67

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance to EN55015,EN61000-3-2 (≧50%Load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,Alight industry

level （surge4KV）

Others

Weight

1.32Kg

Size

230*70*47mm（L*W*H）

packing

329*279*176mm/10pcs

Notes

1. All parameters NOT specially mentioned are measured at 110V, 230VAC input , rated load and 25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3. Tolerance:includes set us tolerance,line regulation and load regulation .
