Non-dimmable LED Driver

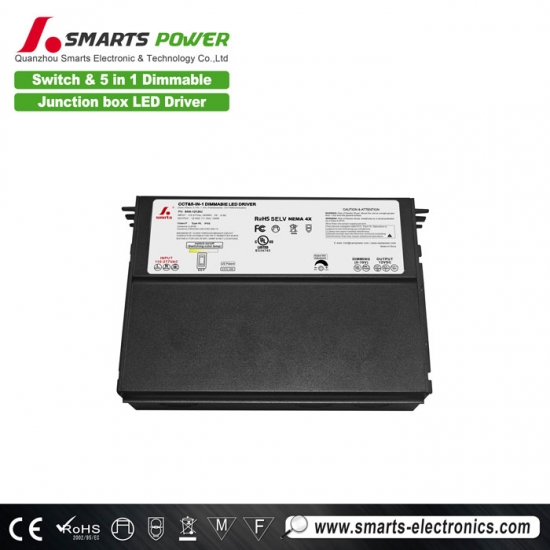

12v/24v/48v 120w CTT & triac/0 10v dimmable constant voltage led driver power supply

Smarts new product CCT & triac/0-10V/1-10V/10VPWM/Potentiometer 120W dimmable led power supply, PWM dimming range is 100%-0.1% ultra-deep amplitude, compatible with most triac/0 10v dimmers on the market Smooth flicker-free dimming, such as Lutron dimmers

  • item no.:

    SHA-12120J
  • brand:

    SMARTS
  • Input Voltage:

    110-277VAC
  • Output Voltage:

    12VDC
  • Working Mode:

    Constant voltage
  • Certification:

    UL, ROHS, FCC
  • Warranty:

    5 years
inquiry now
product details

12v/24v/48v 120w CTT & triac/0 10v dimmable constant voltage led driver power supply

smarts new product CCT & 5 in 1 dimmable led driver 120W, constant voltage working mode, working efficiency up to 88%, with short circuit/overload/over temperature protection, color temperature can be switched by switch

  Specification

Model Number SHA-12120J SHA-24120J SHA-48120J
Output Type
Reted Power 120W
Reted Voltage 12V 24V 48V
Reted Current 10A 5A 2.5A
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Load Regulation ±1%
Input Type
Voltage Range 110-277V
Frequency Range 47-63HZ
Efficiency(Typ.) 87%@120VAC 88%@277VAC
Total Harmonic Distortion THD< 15%(@100% load)
Power Factor(typ.) 0.99@120VAC 0.98@277VAC
AC Current(Typ.) 1.25A
Inrush Current(Typ.) 27A
Leakage Current <0.5mA
PROTECTION
Short Circuit Hiccup mode, recovers automatically after fault condition is removed.
Over Load Intelligently reduce the output voltage, auto-recovery or re-power on to recovery
Over Temperate 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
ENVIRONMENT
Working Temp. Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section)
Working humidity 20 ~ 95% RH non-condensing
Storage temp., Humidity -40 ~ +90, 10 ~ 95% RH
Temp .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
SAFETY & EMC
Safety standards UL8750, CSAC22.2 No. 250.0-08
Withstand voltage I/P-O/P:1.88KVAC
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC Emission Compliance to FCC part 15  Subpart B
OTHERS
Dimension 188x120.5x42mm (L*W*H)
Packing -

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

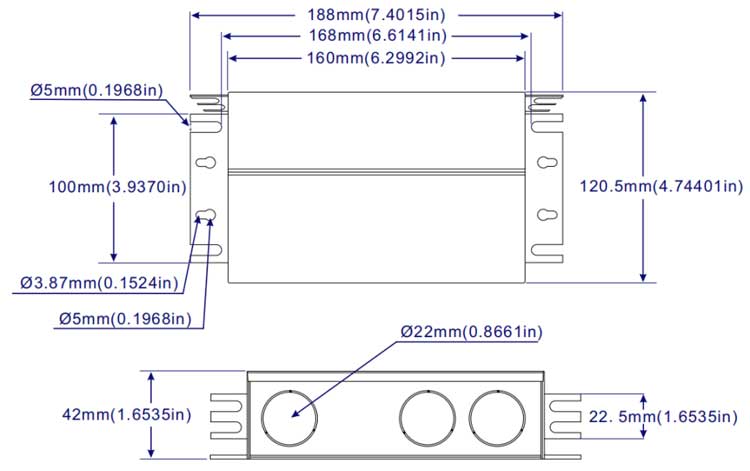

  Mechanical Specification


Wire Specification

SHA-J Input Output 0/1-10V Dimming
Power Function Color Spec. Function Color Spec. Function Color Spec.
120W AC L Black 18AWG DC+ Red 18AWG Dim+ Purple 18AWG
AC N White 18AWG DC- Black 18AWG Dim- Pink 18AWG
Ground Green 18AWG CW- Yellow 18AWG / / /




Function Introduction



Mounting

1.This driver must be installed in a well-ventilated area free from explosive gases and

vapors. Air circulation is essential for heat dissipation.

2.Recommended spacing between LED drivers should be a minimum of 4” (10cm).

3.Do not mount driver close to or above objects that can radiate. Vertical mounting

is highly recommended.

4.Select an appropriate location that is able to support the weight of the product.

5.Use the mounting tabs on the left and right side of the driver to mount the product.



Connecting Diagram

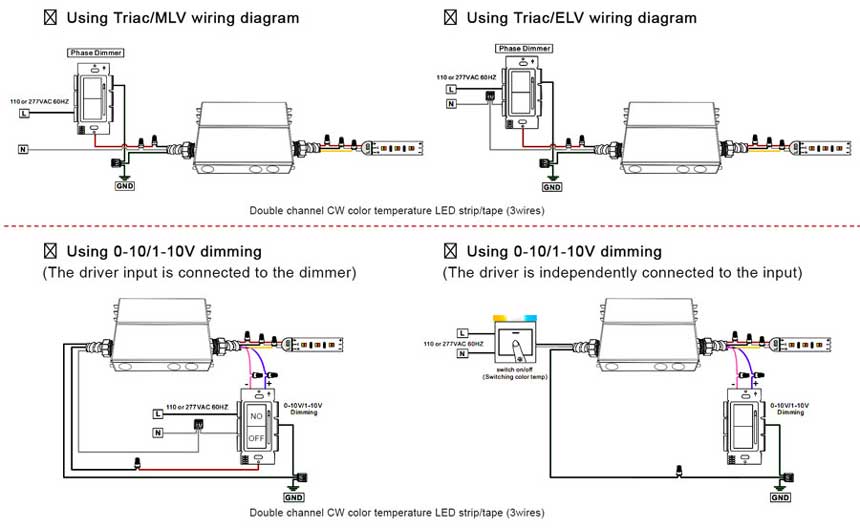

Using TRIAC/Phase cut dimming
1.Through a phase-dimmer or lighting system, control the input AC phase line (L) and adjust the output PWM
2.Triac dim mode: Forward phase & reverse phase, MLV, ELV dim
3.Please try to use dimmers with power at least 1.5 times as the output power of the driver.


  Dimming operation


Works with Two channel CCT warm-dim LED strip/tape (3 wires)




  Related Products

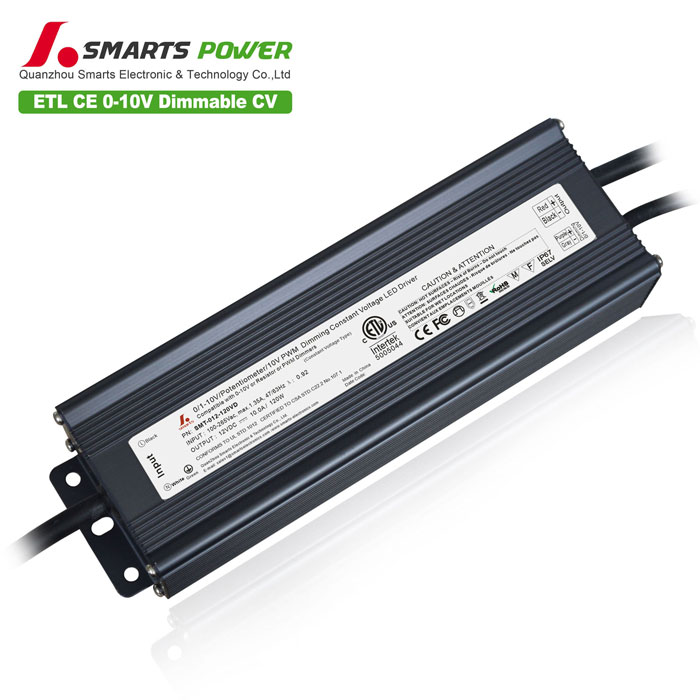

0 10V dimmable 120W 12V constant voltage led driver power supply, aluminum shell design, waterproof grade ip67, easy and quick to install, can be well connected with most 0 10v dimmers on the market to achieve smooth flicker-free dimming
