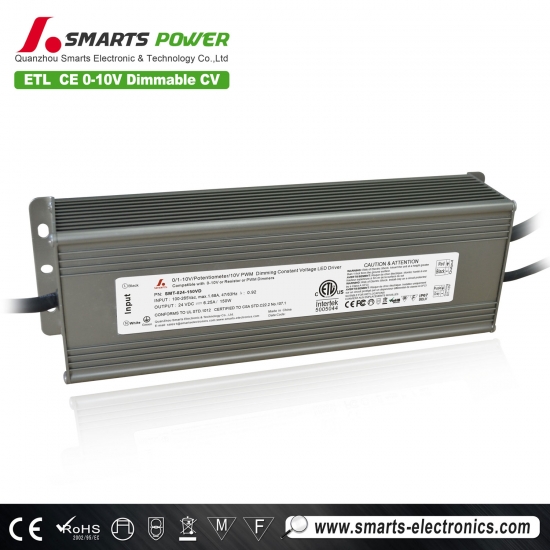

150W 0-10V /pwm dimmable led driver 24vDC for LED controller panels
Specifications
Model
SMT-012-150VD
SMT-024-150VD
Output
DC Voltage
12V
24V
Voltage Accuracy
±0.5V
Rated current
0～12.5A
0～6.25A
Rated power
150W
Input
Voltage Range
100-130VAC, 170-265VAC
Frequency Range
47～63HZ
Power Factor ( Typ.）
PF≧0.90/110V / PF≧0.90/220V
Full Load Efficiency（Typ.）
>88%(110V) / >88%(220V)
>88%(120V) / >88%(220V)
AC Current（Typ.）
1.578A(120V) / 0.861A(220V)
1.578A(120V) / 0.861A(220V)
Leakage current
﹤0.8mA/120VAC / ﹤0.7mA/220VAC
Protection
Short Circuit
Protection type: Hiccup mode, recovers automatically after fault
condition is removed
Over voltage
≦150VAC / ≦280VAC
Over temperature
100℃±10℃ shut down o/p voltage, re-power on to recover
Environment
Working TEMP.
-40～+50℃
Working Humidity
20～95%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z
axes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13.IP66
Withstand voltage
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
Isolation resistance
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
Compliance toEN55015,EN61000-3-2 (≧50%load)
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry
level
Others
Weight
1.8Kg
Size
255*80*53mm（L*W*H）
packing
440*295*145mm/8pcs/CTN 265*98*55 mm for inner box
Notes
1. All parameters NOT specially mentioned are measured at 110V ~ 220VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
label
Features
- High efficiency,save energy ,protected environment
- Constant voltage design with high accuracy.
- International wide input voltage.
- output voltage 12v/24vselectable.
- Wattage: 20w-200w.
- High efficiency, save energy, protected environment.
- High stability and low ripple, increase light efficiency and decrease light attenuation.
- Meet to safety standard and EMC.
- Assure LED stability long lift and light efficiency by constant voltage.
- Cooling by free air convection.
- 100% full load burn-in test.
- Brand electrotronic components.
- ROHS material.
- Suitable for LED lighting
Applications
- indoor LED illuminating lights, LED Neon
- LED urban Decoration,LED Lighting Advertising
- LED Display, Safety Protection Apparatus
- Telecommunications, Networks
- Vehicle Lights, Controller Panels
| Packing | |||||||
| N.W./pcs | G.W/ctn | Qty/ctn | Carton Size(mm) | ||||
| 150W 0-10V /pwm dimmable led driver 24vDC for LED controller panels | |||||||
| 1.8kg/pcs | 15kg/ctn | 10pcs | 414*308*174mm | ||||
